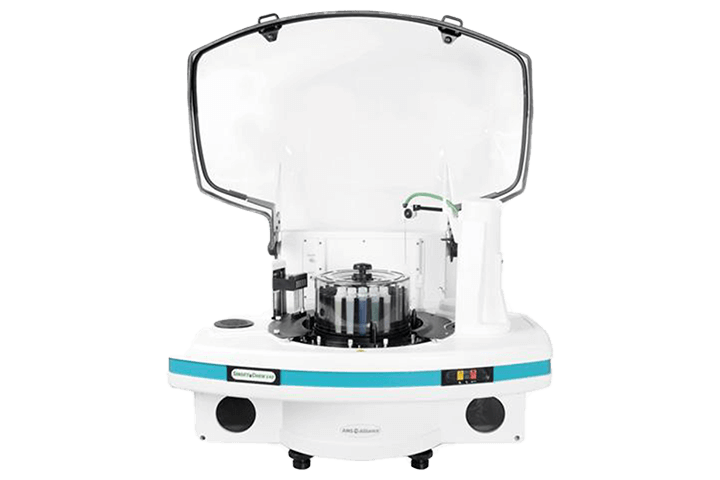

The Ellipse is a fully automatic, random access benchtop analyzer for Clinical Chemistry and Immunoturbidimetric assays.

  • Throughput: up to 138 tests/hr
  • Samples: 4racks for a total of 32 positions / primary tubes diameter from 8 to 16 mm, height 100 mm and 3 ml cups
  • Sample Volume: 2.0 to 99 µl (1 µl increments)
  • Reagents: 24 positions (6 to 35 ml)
  • Reagents Volume: 3.0 to 548 µl (1 µl increments)
  • Standards and Controls: up to 12 positions
  • Reaction Cuvettes: 6 mm path length semi-disposable cuvettes - 120 cuvettes divided in 6racks, automatically washed and checked after each cycle
  • Reaction Temperature: 37°C ± 0.2
  • Minimum Reaction Volume: 200 µl
  • Optic Module: dual channel with 9 filters 340, 380, 405, 492, 510, 546, 578, 620, 690/ high resolution halogen lamp / 6 mm optical path
  • Sampling Arm: single with integrated diluter, level sensor and automatic internal/external probe washing / Reagents preheated to 37°C
  • Water Consumption: about 3 ml/test
  • Clinical Chemistry
  • Immunoturbidimetric Analysis

Accessories

Ellipse

Resources

Content will be added here soon.
Please check back later.
No items found.
No items found.
No items found.

Specifications

Clinical Analyzer Models
Dimensions
Weight
Wavelengths
Sample Volume
Assay Type
Ellipse
Dimensions
Weight
Max Number of test / hour
Number of reagent positions
Number of sample positions
Min Reaction Volume
Reaction Temperature
Standards & Controls
Sample Containers
Sampling
Reading Cuvettes
Optic Module
