TheiaVu™ TV-250 Benchtop Vision

TheiaVu™ TV-250 Benchtop Vision
TheiaVu™ TV-250 Benchtop Vision

Product Overview

Better Measurements, More Measurements

TheiaVu™ TV-250 assists quality control professionals to save a significant amount of time while obtaining more precise and repeatable measurement data to improve their production processes. Because some quality parameters are difficult or impossible to quantify using manual methods they are not considered as part of the criteria during quality checks. TheiaVu™ allows you to perform these measurements at a fraction of the speed and with a great deal of precision compared to manual methods. The TV-250 is best suited for applications that do not require washdown.

Sightline TheiaVu TV-250 Benchtop Vision Inspection System
A Look Inside TheiaVu - Laser Over Buns
No items found.

Features

  • Powerful: Quantify product features difficult to measure manually
  • Automatically collects critical product data
  • Easy to use operator interface
  • Fast: up to 10 objects/second*
  • Versatile: Can be used in lab or production area
  • Flexible: built-in library with 100+ measurements and growing
  • Measure products up to 91 cm (36” long)

*Actual speed will depend on the size of object and number of different measurements per object.

Benefits

  • Perform quality checks faster and with better repeatability
  • Know more about your product compared to manual methods
  • Ensure consistent product quality from batch to batch
  • Cost savings through reduced labor and waste
  • Brand protection
  • Save time with reporting, all results are saved & organized
  • Achieve competitive advantages
TheiaVu™ TV-250 Benchtop Vision

Get in Touch with Us!

Learn More

Applications

Measure Quality Where It Matters

Used in the lab or at-line, TheiaVu™ systems produce critical measurement data on final products or at various stages throughout production for both quality and process control.

Typical Applications Include:

  • Incoming Inspection: Inspect raw materials quality, such as fruits, vegetables, dough, and more
  • R&D: For bakeries or ingredient producers, quantify the baked goods fresh out of the oven based on a new formulation or a new ingredient (can also be before baking, during proofing, etc)
  • Process Improvement: Quality sampling at every stage of production provides teams with the data they need to improve processes
  • Quality Control: Before packaging, inspect final products or works-in-progress for quality control
  • Program Development: Assistance with creating standards for quality assurance programs
  • Training: Use the TheiaVu™ for training staff on in-line or over-line systems, it operates on the same user interface

Finished Products:

  • Bread Products (loaves, baguettes, buns, bagels, english muffins, croissants, muffins, etc)
  • Cookies, crackers, biscuits
  • Snack Foods (snack bars, pretzels, potato chips, French fries, desserts, chocolates, candies, etc)
  • Cheese Products (blocks, snack pieces, wax covered, etc)
Cheese
Bread
Snack Bars
Buns
Rice Cakes
Tortilla Chips
No items found.
Start the Conversation - Get in Touch
Alt Text Title
TheiaVu™ TV-250 Benchtop Vision

Measure Quality Where it Matters

Learn More

Product Lineup

No items found.
KPM Analytics Distribution

Get in Touch with Us!

Learn More

How It Works

Compact Machine Vision for Quality Control

TheiaVu™ vision inspection systems use a selection of high-speed cameras, a laser, and imaging software to detect and measure objects as they move along the built-in conveyor belt.

Our proprietary measura® software suite and measurement algorithms can determine the size, shape, color, or composite measurement of any object and convert this information into standard units for quality control purposes. Results are displayed in real-time and data for every object is saved for future analysis and reporting.

To Inspect a Product:

  1. Power on the system
  2. Select the desired measurement profile using built-in operator interface
  3. Place the object on the moving conveyor belt
  4. Instantly view the results on-screen

You can continuously feed multiples of the same product onto the belt without resetting the system and all data will be saved. There is no need for manual note taking or spreadsheets.

Product profiles are easy to adjust or create using the measura® Toolbox module (included). All you need to do is enter your specifications and save. Next time you load the profile, your changes are applied.

KPM Analytics Wheat Field

Request A Demo

Get in Touch

System Components

TheiaVu™ TV-250 is equipped with a 9” wide conveyor, the standard 2D full-color and 3D monochrome profile cameras and efficient LED lighting for standard resolution applications.

Lighting

All TheiaVu™ models are deployed with efficient white LED for accurate color measurement.

Camera Options

The TheiaVu™ TV-250 is delivered with:

  • 1, 2D full color camera with resolutions of approx. 0.2 mm/pix (resolution varies by conveyor width)
  • 1, 3D monochromatic profile camera (works with a laser source for 3D profile)

Other Components

  • Stainless steel conveyor ensures fast sampling and low maintenance
  • Integrated and adjustable system touchscreen allows for easy operator interaction
  • Accessible USB and network connectors allow for easy connection of peripheral devices
  • Plugs directly into any standard electrical outlet (120/220VAC)
No items found.
KPM Analytics Global

Get in Touch with Us!

Learn More

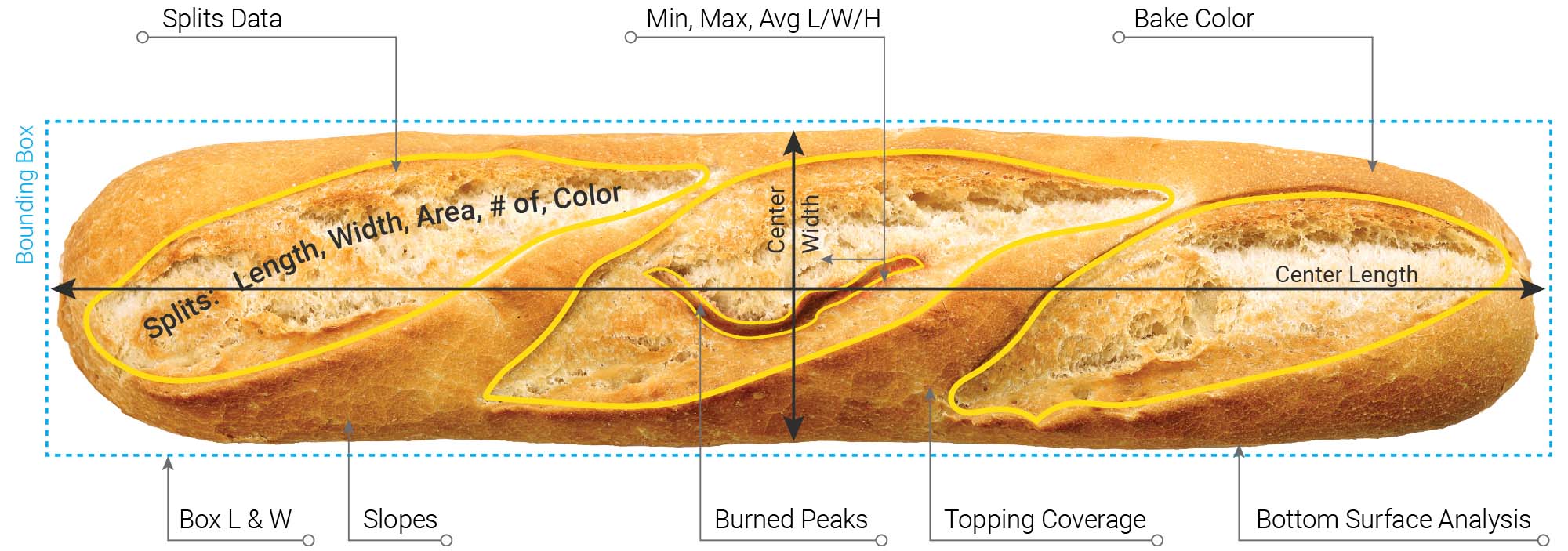

Measurements

A LARGE MEASUREMENT LIBRARY, AND GROWING

Using vision technology, your products are characterized in meaningful ways, including complex details that are difficult and time-consuming with traditional manual methods. Our standard measurements library consists of over 100 basic and advanced algorithms and growing.

Heights: Peak, Mean, Center, Edge

Diameters: Min, Max, Mean

Slopes: Mean End-to-End, Side-to-Side

Shape: Length, Width, Roundness

Color: Average, Topping, Top Surface w/o Topping

Surface Features: Number of Splits, Split Width, Topping Coverage

Others: Surface Area, Volume

External Devices (optional): Weights, Temperatures

KPM Analytics Snack Foods

Get in Touch with Us!

Learn More

Software

Powerful And Easy to Use Measura® Software Suite

The easy-to-use measura® software suite includes a built-in library of over 100 different types of measurements and configurable camera and lighting components for different product needs. The software simplifies the inspection process from product set-up and real-time inspection to process monitoring and quality analytics.

Powerful And Easy to Use Measura® Software Suite

The easy-to-use measura® software suite includes a built-in library of over 100 different types of measurements and configurable camera and lighting components for different product needs. The software simplifies the inspection process from product set-up and real-time inspection to process monitoring and quality analytics.

Powerful And Easy to Use Measura® Software Suite

The easy-to-use measura® software suite includes a built-in library of over 100 different types of measurements and configurable camera and lighting components for different product needs. The software simplifies the inspection process from product set-up and real-time inspection to process monitoring and quality analytics.

Powerful And Easy to Use Measura® Software Suite

The easy-to-use measura® software suite includes a built-in library of over 100 different types of measurements and configurable camera and lighting components for different product needs. The software simplifies the inspection process from product set-up and real-time inspection to process monitoring and quality analytics.

    • Define your products
    • Configure your measurements
    • Set limits
    • Interactive blob set-up
    • Playback recordings
      • Define your products
      • Configure your measurements
      • Set limits
      • Interactive blob set-up
      • Playback recordings
        • Define your products
        • Configure your measurements
        • Set limits
        • Interactive blob set-up
        • Playback recordings
          • Define your products
          • Configure your measurements
          • Set limits
          • Interactive blob set-up
          • Playback recordings
          • Fast, up to 100 objects/ second
          • Intuitive operator screens
          • Display trends, lane data, and defect summaries
          • Record data
          • Fast, up to 100 objects/ second
          • Intuitive operator screens
          • Display trends, lane data, and defect summaries
          • Record data
          • Fast, up to 100 objects/ second
          • Intuitive operator screens
          • Display trends, lane data, and defect summaries
          • Record data
          • Fast, up to 100 objects/ second
          • Intuitive operator screens
          • Display trends, lane data, and defect summaries
          • Record data
          • Display up to 5 measurements
          • Multiple display platforms
          • Visual alarms
          • Ethernet connectivity
          • Display up to 5 measurements
          • Multiple display platforms
          • Visual alarms
          • Ethernet connectivity
          • Display up to 5 measurements
          • Multiple display platforms
          • Visual alarms
          • Ethernet connectivity
          • Display up to 5 measurements
          • Multiple display platforms
          • Visual alarms
          • Ethernet connectivity
          • Customizable report template
          • Configurable date range
          • Scheduled pdf reports via email
          • Exports to Excel or pdf
          • Customizable report template
          • Configurable date range
          • Scheduled pdf reports via email
          • Exports to Excel or pdf
          • Customizable report template
          • Configurable date range
          • Scheduled pdf reports via email
          • Exports to Excel or pdf
          • Customizable report template
          • Configurable date range
          • Scheduled pdf reports via email
          • Exports to Excel or pdf
          Alt Text Title
          Community Login

          Request A Demo

          Get in Touch

          Installation Options

          No items found.
          Alt Text Title
          KPM Analytics Hot Copper Ore

          Request A Demo

          Learn More

          Accessories

          TheiaVu™ TV-250 Benchtop Vision

          Available Accessories

          • Integrated weigh scale for TV-250 and TV-300
          • Temperature probe, 2” or 4” probe length
          No items found.
          KPM Analytics Global

          Get in Touch with Us!

          Learn More

          Specifications

          TV-250

          Dimensions 978 mm L x 457 mm W x 915 mm H (38.5 in L x 18 in W x 30 in H)
          Throughput Approx 10 objects/second (Actual speed depends on object size & number of different measurements per object.)
          Max Object Size 915 mm L x 203 mm W x 140 mm H (36 in L x 8 in W x 5.5 in H)
          Temperature 4°C to 40°C (40°F to 104°F)
          Humidity 5% - 95%, non-condensing
          Voltage 120 VAC, 60Hz (220VAC/50Hz)
          Current 10A at 120 VAC (5A at 220VAC)
          Compliance CE Certified
