Moisture & Compositional

QuikCheck Food & Industrial NIR Analyzer

QuikCheck Food & Industrial NIR Analyzer
QuikCheck Food & Industrial NIR Analyzer

Product Overview

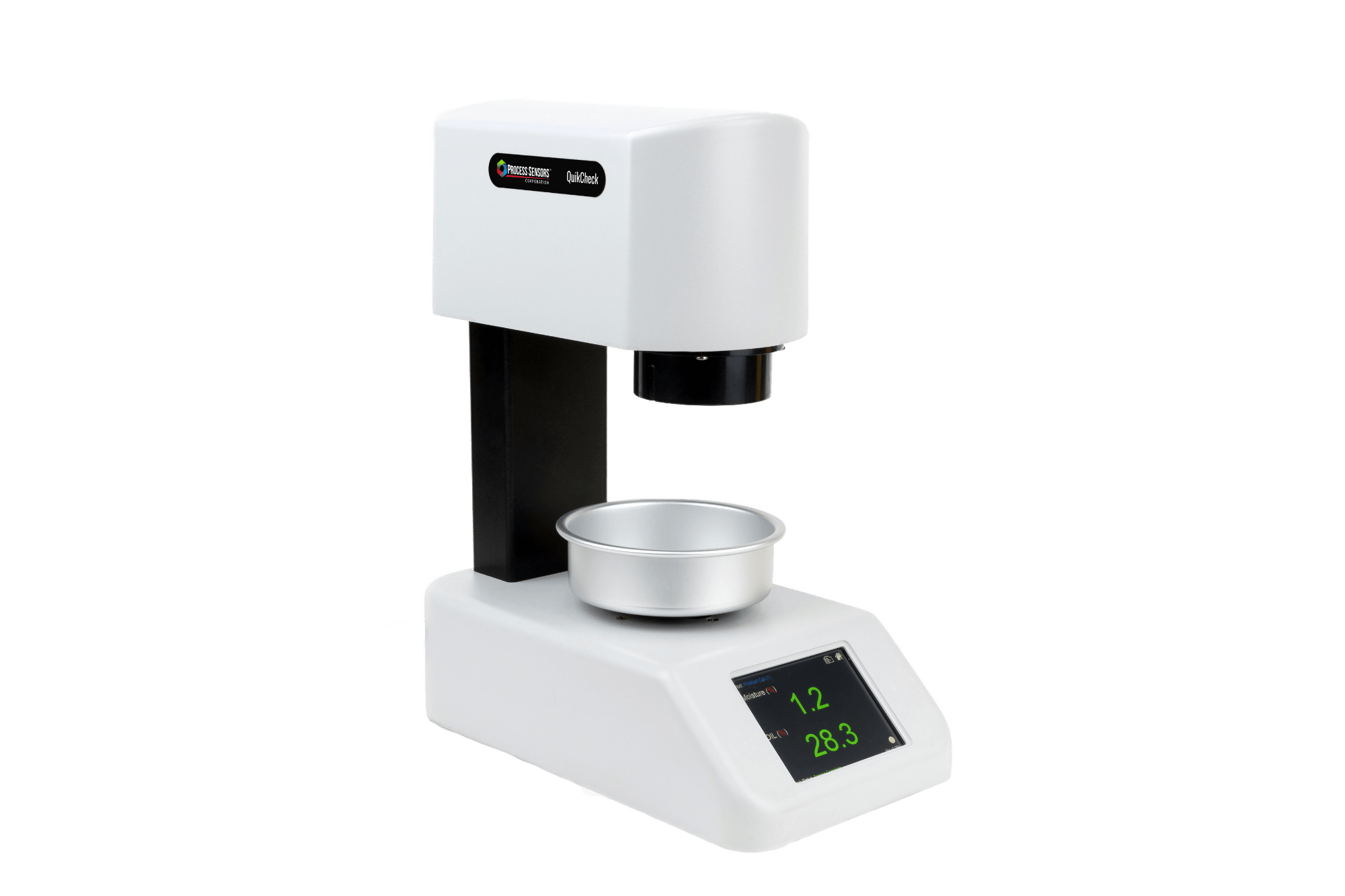

Easy-To-Use Rotating Analyzers for Rapid Lab or At-Line Analysis

The Process Sensors QuikCheck at-line or lab analyzer is a rotating “look-down” near infrared (NIR) benchtop solution for the analysis of non-homogenous solids and powders for moisture, oil (fat) content, and other important quality parameters. Example sample types include:

  • Snack foods
  • Food ingredients
  • Cereals
  • Tobacco
  • Chemicals, and more

Designed for speed and simplicity, the QuikCheck integrates seamlessly into most quality assurance labs or production facilities to enhance the inspection process. Results are returned to the operator in 5-to-10 seconds for rapid feedback.

No items found.

Features

  • Easy setup, calibration, and operation
  • Rugged, easy-to-clean, polycarbonate construction
  • Non-destructive testing requires no hazardous chemicals
  • Unaffected by relative humidity, changes in environmental or product temperature, and ambient light
  • Fully modular with all components easily replaceable in the field
  • USB data export to CSV file

Benefits

  • Obtain vital quality parameter data in seconds with little-to-no sample preparation
  • Easy-to-use with minimal required training
  • Can be delivered pre-calibrated and lab-ready
  • Space-saving, ruggedized design fits smoothly into most at-line or lab settings
  • Save costs and reduce waste, which improves your company’s bottom line
QuikCheck Food & Industrial NIR Analyzer

Get in Touch with Us!

Learn More

Applications

Analysis of Homogenous & Non-Homogenous Samples

QuikCheck Analyzers are used to measure moisture and oil (fat) of homogenous solids, as well as moisture and oil (fat) of non-homogeneous slurries, powders, and pastes. Product scan be placed into a dish, or vial for analysis. Common QuikCheck Analyzer applications include:

General Food

  • Cereal
  • Coffee
  • Corn meal
  • Dairy powders
  • Dehydrated Potato
  • Fruit/Vegetable powders
  • Seasonings
  • Starches

Snack Food

  • Biscuits
  • Cookies
  • Crackers
  • Popcorn
  • Potato chips
  • Pretzels
  • Tortilla chips

Animal Food Products

  • Beet pulp
  • DDGS
  • Fish feed
  • Hard pet food
  • Meat and bone meals

Industrial & Misc.

  • Biofuels
  • Ceramics
  • Crumb rubber
  • Detergents
  • Fertilizers
  • Minerals
  • Ores
  • Plastic pellets
  • Soaps
  • Tobacco
  • Wood products
No items found.
Start the Conversation - Get in Touch
QuikCheck Food & Industrial NIR Analyzer

Measure Quality Where it Matters

Learn More

Product Lineup

No items found.
KPM Analytics Distribution - Abstract Background

Get in Touch with Us!

Learn More

How It Works

The QuikCheck at-line or lab analyzer is a rotating “look-down” near infrared (NIR) benchtop solution for the analysis of non-homogenous solids and powders for moisture, oil (fat) content, and other important quality parameters. Example sample types include:

  • Snack foods
  • Food ingredients
  • Cereals
  • Tobacco
  • Chemicals, and more

Designed for speed and simplicity, the QuikCheck integrates seamlessly into most quality assurance labs or production facilities to enhance the inspection process. Results are returned to the operator in 5-to-10 seconds for rapid feedback.

KPM Analytics Wheat Field - Harvesting - Cereal and Grains Quality

Request A Demo

Get in Touch

System Components

No items found.
KPM Analytics Global

Get in Touch with Us!

Learn More

KPM Analytics Quality Control Solutions for Snack Food Manufacturers

Get in Touch with Us!

Learn More

Software

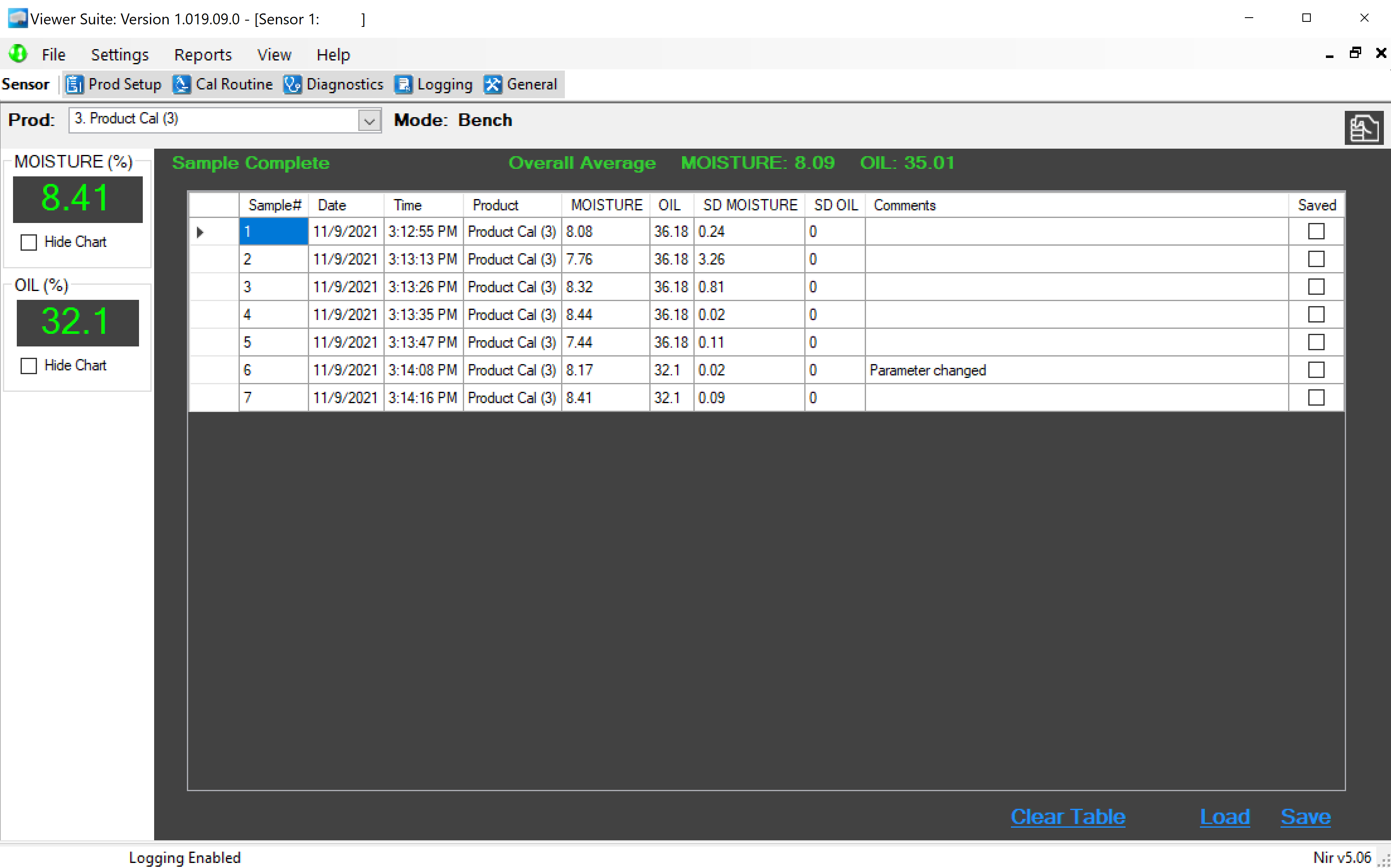

The optional ViewerSuite PC software allows the operator to insert setup parameters, perform or adjust calibrations, select product calibrations, examine internal diagnostic values, and remotely log and view the sample test data.

The optional ViewerSuite PC software allows the operator to insert setup parameters, perform or adjust calibrations, select product calibrations, examine internal diagnostic values, and remotely log and view the sample test data.

The optional ViewerSuite PC software allows the operator to insert setup parameters, perform or adjust calibrations, select product calibrations, examine internal diagnostic values, and remotely log and view the sample test data.

The optional ViewerSuite PC software allows the operator to insert setup parameters, perform or adjust calibrations, select product calibrations, examine internal diagnostic values, and remotely log and view the sample test data.

KPM Community Login

Request A Demo

Get in Touch

Installation Options

No items found.
KPM Analytics Hot Copper Ore

Request A Demo

Learn More

Accessories

QuikCheck Food & Industrial NIR Analyzer

Available Accessories

  • Calibration check standard (for moisture only)
  • 4GB USB memory stick
  • Windows®-based ViewerSuite Software
No items found.
KPM Analytics Global

Get in Touch with Us!

Learn More

Specifications

QuikCheck

Dimensions Width x Depth x Height: 23 x 40 x 47 cm (9 x 16 x 19 in.)
Weight 9 kg (20 lbs)
Power 90-260 VAC, 50/60 Hz, 40 Watts
NIR Measurement Constituents Up to 2 Components Simultaneously
Moisture Range Min. 0.1%, Max. 95%
Moisture Accuracy (Subject to Application and Product Type) +/- 0.1%
Oil (Fat) Range Min. 0.1%, Max. 50%
Oils Accuracy (Subject to Application and Product Type) +/- 0.2%
Calibration Codes 100
Test Time 10 Seconds (User-Definable)
Display 5.7 in. High-Resolution Touchscreen
