Easy-to-use analyzers for rapid lab and at-line analysis of moisture, oil, and coat weight. Versatile sampling options for the analysis of powders, solids, and pastes.

  • Easy setup, calibration, and operation.
  • Rugged, easy-to-clean, polycarbonate construction.
  • Non-destructive testing requires no hazardous chemicals.
  • Unaffected by relative humidity, changes in product temperature, ambient light, and elevated temperatures.
  • Proprietary temperature-controlled detector ensures measurement stability in high-temperature environments.
  • Fully modular with all components easily replaceable in the field.
  • Easy to troubleshoot with advanced on-board diagnostics.
  • USB data export to CSV files.
  • Optional Viewer Suite PC software allows operators to insert setup parameters, perform or adjust calibrations, select product codes, examine internal diagnostic values, and remotely log and view sample test data.

QuikCheck analyzers are used in diverse industries and applications including:

Industrial:  tobacco, wood products, biofuels, crumb rubber, ceramics, fertilizers, detergents, ores, minerals

Snack Food: potato chips, tortilla chips, crackers, biscuits, popcorn, pretzels

General Food: olives, cereal, coffee, flour, dairy powders, peanut butter, hummus, potato processing, seasonings, corn meal

Animal Food Products:  meat and bone meals, hard pet food, DDGs, fish food pellets, beet pulp

Converting: moisture and coat weight, hot melts, pressure sensitive adhesives, PVB films

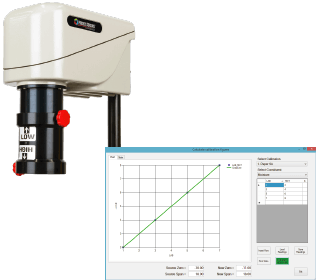

Accessories

QuikCheck Analyzer Series

Calibration Check Standard

Purpose: Verification of instrument stability over time.

ViewerSuite Software Package

Purpose: Remotely adjust sensor settings and calibrations, examine internal diagnostics and view sensor readings.

Series Lineup

Series Model
Basic Description
Sample Orientation
Sample Rotation
Sample Types
Applications

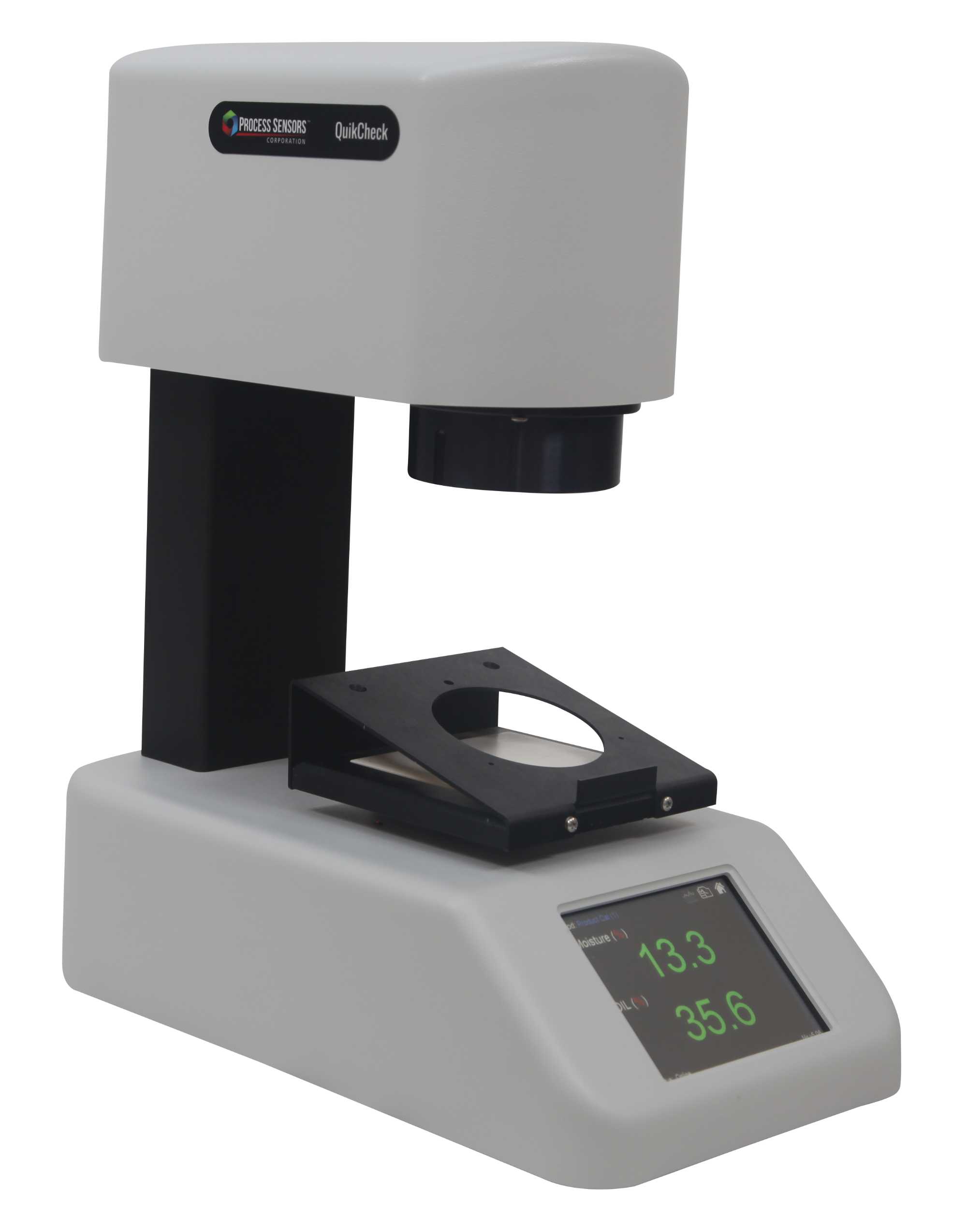

QuikCheck - S
QuikCheck - S
QuikCheck - S
Static sample
Look Down
No
Solids, papers and films
Converting, coat weight, film thickness

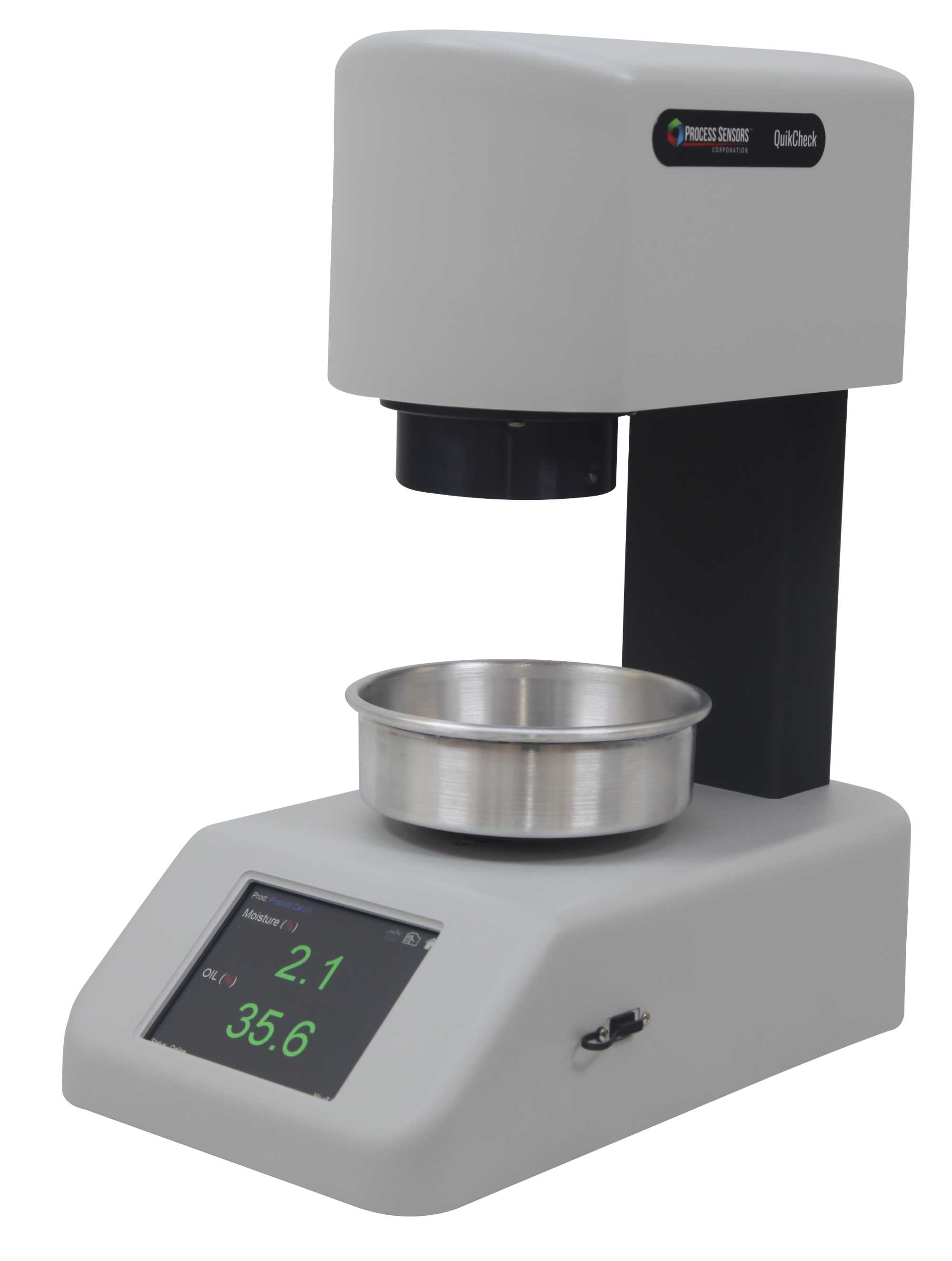

QuikCheck - R
QuikCheck - R
QuikCheck - R
Rotating Sample
Look Down
Yes
Non-homogeneous solids or powders
Snack foods, cereals, tobacco, chemicals

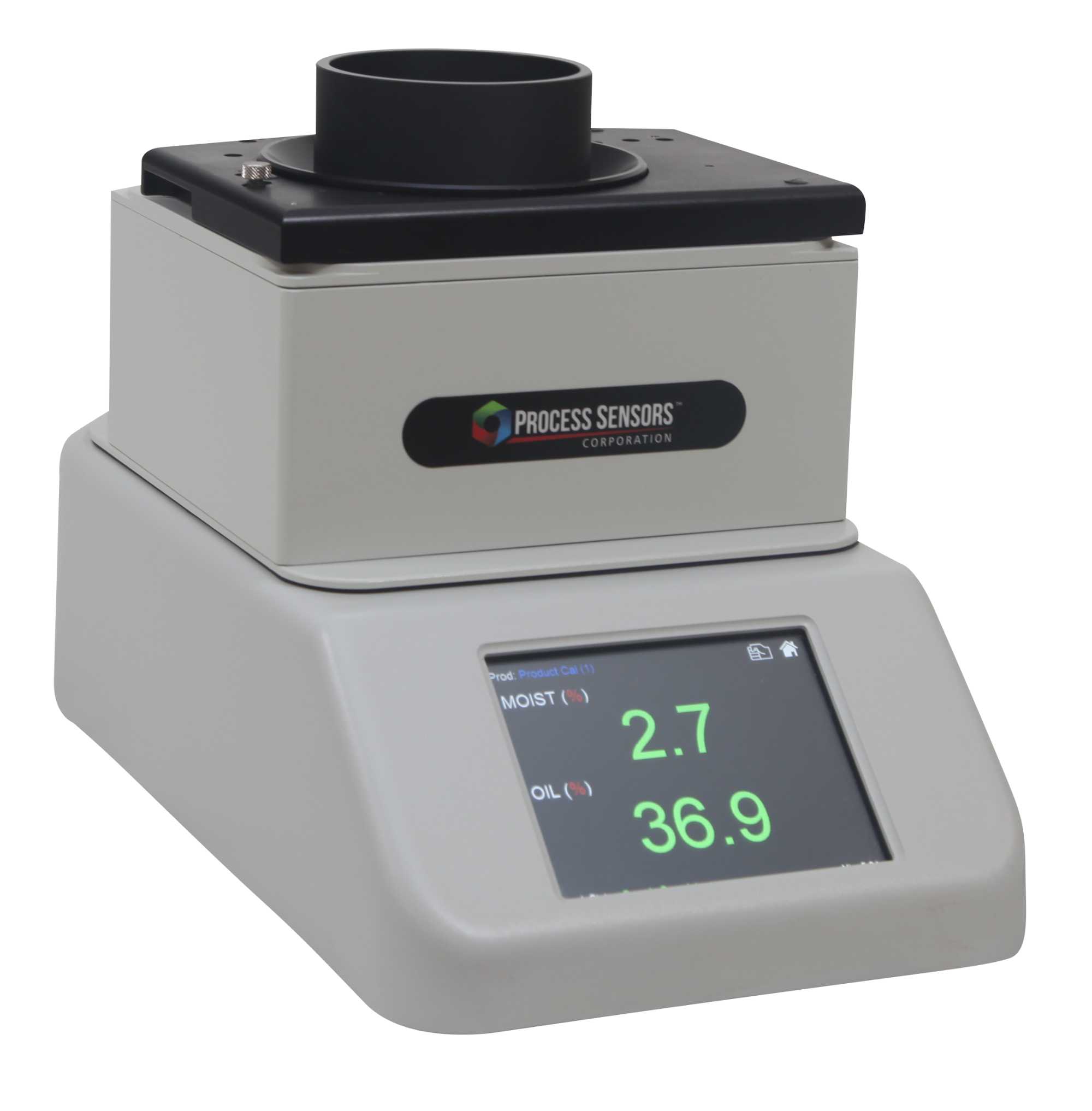

QuikCheck - RTW
QuikCheck - RTW
QuikCheck - RTW
Rotating top window
Top Window
Yes
Non-homogenous sample types in sample cups or petri dishes
Olive processing, hummus, animal feed products, cannabis

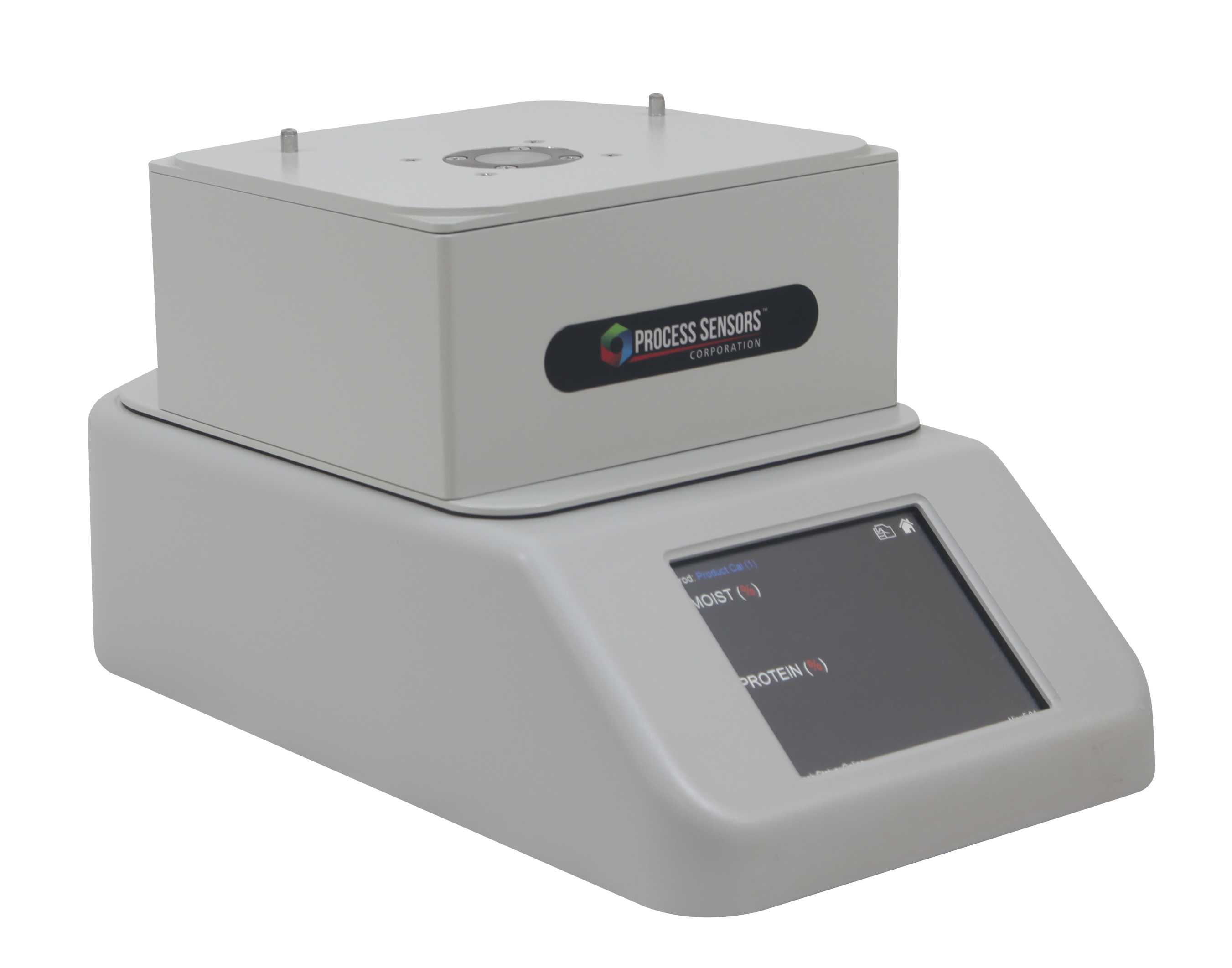

QuikCheck - STW
QuikCheck - STW
QuikCheck - STW
Static top window
Top Window
No
Homogeneous samples in vials, petri dishes or disposable bags
Coffee, peanut butter, flour, corn meal

Specifications

QuikCheck Models
Dimensions
Weight
Power
Measurement NIR Constituents
Calibration Codes
Operating Temperature
Accuracy (subject to application)
Test Time
Display
No items found.
QuikCheck - S
23 x 40x 47 cm L x W x H (9" x 16" x 19")
9 kg (20 lbs)
90-260VAC, 50/60 Hz, 40watts
1-2 simultaneously
100
0 - 40 °C (32-105 °F)
Moisture +/- 0.1%; Fats/Oils +/- 0.2%; Coatings +/- 0.1 g/m
10 seconds (User-definable)
5.7” high-resolution touchscreen
QuikCheck - R
23 x 40x 47 cm L x W x H (9" x 16" x 19")
9 kg (20 lbs)
90-260VAC, 50/60 Hz, 40watts
1-2 simultaneously
100
0 - 40 °C (32-105 °F)
Moisture +/- 0.1%; Fats/Oils +/- 0.2%
10 seconds (User-definable)
5.7" high-resolution touchscreen
QuikCheck - STW
23 x 40 x 24 cm L x W x H (9" x 17" x 10")
9 kg (20 lbs)
90-260VAC, 50/60 Hz, 40watts
1-2 Simultaneously
100
0 - 40 °C (32-105 °F)
Moisture +/- 0.1%; Fats/Oils +/- 0.2%
10 seconds (User-definable)
5.7" high-resolution touchscreen
QuikCheck - RTW
23 x 40 x 24 cm L x W x H (9" x 17" x 10")
9 kg (20 lbs)
90-260VAC, 50/60 Hz, 40watts
1-2 Simultaneously
100
0 - 40 °C (32-105 °F)
Moisture +/- 0.1%; Fats/Oils +/- 0.2%
10 seconds (User-definable)
5.7" high-resolution touchscreen
