SmartChem® 800 Discrete Analyzer is a fully automated, high-capacity wet chemistry platform engineered for modern commercial laboratories. Delivering fast, reliable photometric analysis with true walk-away operation, it is designed for labs seeking maximum throughput, efficiency, and cost control. With up to 800 tests per hour and advanced automation features, SmartChem® 800 elevates routine chemistry to a new level of productivity and precision.
High-Throughput Automated Wet Chemistry Platform
Designed as a multi-parametric, fully automated wet-chemistry platform, the SmartChem® 800 Series consolidates high-throughput photometric and electrochemical analysis into a single, versatile instrument. Its large sample capacity, microliter reaction system, and model-dependent cooling options support long, uninterrupted workflows ideal for high-demand commercial and environmental laboratories.
Benefits
Higher efficiency and throughput thanks to automation, true random access, and long walk-away sequences, allowing staff to focus on higher-value tasks.
Reduced reagent consumption and waste enabled by microliter-scale reactions and reusable technical-polymer cuvettes, lowering operational costs and environmental impact.
Reliable, reproducible results supported by validated ready-to-use SmartChem reagents and stable dual-beam UV/Vis photometry.
Enhanced automation and traceability with optional barcode readers for samples and reagents and full LIMS integration via CLSI LIS02-A2 (ASTM E1394).
Automated out-of-range retesting and intelligent decision-making reduce manual handling and help maintain consistent data quality.
Extended analytical workflows with optional modules for pH, conductivity, ORP, and nitrate reduction.
Features
High-throughput, multi-parametric analysis, with up to 600 tests/hour and up to 800 samples onboard
Dual-beam UV/Vis photometer.
Model-dependent cooling for samples and reagents, ensuring stability during long unattended runs.
Fully automated start-up, shutdown, and workflow execution, including IF/THEN logic for conditional sequences.
Reusable technical-polymer cuvettes and a monitored, programmable wash cycle for low consumable cost and sustainable operation.
Integrated sample barcode reader and optional reagent barcode reader for secure, traceable workflows.
EC (electrochemical) module for pH / Conductivity / ORP, and NO₃ reduction module (Optional).
Large library of ready-to-use reagents.
Applications
SmartChem® discrete automated analyzers are widely used across environmental, agricultural, food & beverage, and industrial laboratories to deliver fast, accurate, and fully automated wet-chemistry results. Designed for high-throughput testing, they support a broad range of enzymatic and colorimetric methods, from nutrients and metals to process-control chemistries, while minimizing labor and human error.
Industry/Sector / Applications / Examples
Environmental Testing / Drinking water, wastewater, surface water, groundwater monitoring / Ammonia (NH₃–N), Nitrate/Nitrite, Phosphate, Total Nitrogen (TN), Total Phosphorus (TP), COD, Sulfate, Chloride, Fluoride, Silica
Agricultural & Soil Testing / Soil nutrient analysis, fertilizer QA/QC, agronomy services / Nitrate, Ammonium, Phosphorus, Potassium, Sulfate, Micronutrients (Fe, Mn, Zn, Cu, B)
Food & Beverage / Quality control, nutritional testing, process verification / Sugars, Organic acids, Ammonia, Protein assays, Preservatives (sorbic/benzoic acid), Colorimetric freshness indicators
Commercial / Industrial Labs / Chemical manufacturing QC, process monitoring, wastewater compliance / Additives, Reaction byproducts, Purity tests, Residual chemicals, Cooling/boiler chemistry
See our list of test parameters by sub-segment here. (not limited)
Product Lineup
Product Lineup
3 Distinct Models:
The SmartChem® 800 Series offers three configurations designed to meet the throughput, autonomy and thermal-stability requirements of high-volume laboratories. All models support up to 800 on-board samples, while selected versions add reagent cooling or combined sample and reagent cooling to preserve the stability of sensitive chemistries and maintain analytical reliability during long sequences.
How it Works
The SmartChem® 800 Series uses a direct-read photometric measurement system powered by a dual-beam UV/Vis spectrometer and reusable technical-polymer cuvettes. This true discrete analysis architecture ensures stable, accurate results while minimizing reagent consumption and eliminating the limitations of batch-based systems.
SmartChem® simplifies your laboratory workflow through a short, fully automated sequence:
- Load samples and reagents into the SmartChem® : Configure up to 800 samples and 100 reagents, with model-dependent cooling options for long, unattended runs.
- Set up your test parameters: Choose from a large library of validated methods, or import existing SmartChem® method files.
- Load your workplan in SmartChem® Pro: The software automates dilution, calibration, QC, conditional steps, and reagent management.
- Launch your routine and walk away: True random access allows urgent samples to be added at any time without interrupting ongoing work.
- Get the results automatically: Fully traceable outputs are delivered to your LIMS for seamless data integration.
Additionally, SmartChem® cuvettes are being washed after each use, making them available for the next reaction/measurement and reducing your dependence on consumables and their availability.
System Components
With a capacity for up to 800 on-board samples and 100 reagent positions, the SmartChem® 800 Series delivers high-throughput automation for laboratories seeking robust performance and long walk-away autonomy. Its filter-wheel optical system provides 9 on-board wavelengths, expandable to 16 via an optional filter set, ensuring high-precision photometric analysis fully compatible with the global SmartChem® method library.
Available configurations:
- SmartChem® 800 — Standard configuration
- SmartChem® 810 — Includes integrated reagent cooling
- SmartChem® 820 — Includes reagent cooling plus active sample cooling via external chiller
Core Components:
These components are shared across all SmartChem® 800 Series models:
- Dual-beam UV/Vis photometric system with 9 wavelengths (expandable to 16)
- Large sample capacity (up to 800) with mixed rack/tray formats
- 100 reagent positions with liquid-level sensing
- Reusable technical-polymer cuvettes with monitored wash cycle
- Internal 35 L washing solution tanks (optional 150 L external tanks)
- Internal sample barcode scanner for secure, traceable workflows
Reagents
We provide a complete range of enzymatic and colorimetric reagents specifically designed for the SmartChem® family of discrete analyzers. .
Developed, tested, and validated by our applications laboratory, they ensure excellent stability and reproducibility for your analyses.
Supplied as ready-to-use liquids in SmartChem®-compatible bottles, these reagents are easy to handle and can be automatically identified by the optional barcode reader. This “ready-to-go” solution streamlines preparation, simplifies daily operation and storage, and helps secure your results with chemistries perfectly matched to both your applications and your instrument.
To order reagents, please contact: orders@kpmanalytics.com.
Accessories
The SmartChem® 800 Series can be expanded with a range of optional components, allowing laboratories to consolidate more methods and optimize operations:
- Electrochemical (EC) module for pH, conductivity, and ORP
- Nitrate reduction module (NO₃ → NO₂)
- Reagent barcode scanner for automated inventory and traceability
- Extended optical filter set (7 filters) increasing wavelength range to 16 (see on the right)
- External 150L washing solution tanks
- SmartBeacon™ Status Indicator for clear, at-distance visibility of instrument status
Software
SmartChem® Pro V5 powers the SmartChem® 800 Series with a modern, intuitive software environment designed to handle the demands of high-throughput commercial laboratories. From automated startup to final reporting, every step of the workflow is streamlined to support fast, error-free operation, even during long, walk-away sequences.
Built on decades of field-proven SmartChem® expertise, the platform reduces training time, improves operator confidence, and keeps daily operations running smoothly across all shifts.
SmartChem® Pro V5 transforms the SmartChem® 800 Series into a highly autonomous, operator-friendly, and workflow-optimized platform.
Whether managing routine workloads or responding to urgent samples, the software ensures:
- Faster setup
- Fewer errors
- Greater consistency
- Higher lab productivity
- Minimal operator intervention
Designed for Ease of Use
SmartChem® Pro offers a clean, intuitive interface with clear navigation, graphical method setup, and real-time dashboards. Operator/Admin modes ensure fast onboarding and secure daily use.
Designed for Ease of Use
SmartChem® Pro offers a clean, intuitive interface with clear navigation, graphical method setup, and real-time dashboards. Operator/Admin modes ensure fast onboarding and secure daily use.
Powerful Automation for True Walk-Away Operation
The software automates key tasks, startup, shutdown, dilutions, calibration, QC, and exception handling. True random access allows urgent samples at any time, while CLSI LIS02-A2 (ASTM E1394) LIMS integration ensures smooth and reliable data flow.
This automation is particularly impactful on the SmartChem® 800 Series, where large sample capacity and cooling options support all-day high-throughput operation.
Powerful Automation for True Walk-Away Operation
The software automates key tasks, startup, shutdown, dilutions, calibration, QC, and exception handling. True random access allows urgent samples at any time, while CLSI LIS02-A2 (ASTM E1394) LIMS integration ensures smooth and reliable data flow.
This automation is particularly impactful on the SmartChem® 800 Series, where large sample capacity and cooling options support all-day high-throughput operation.
Extensive Library of Standard Test Methods

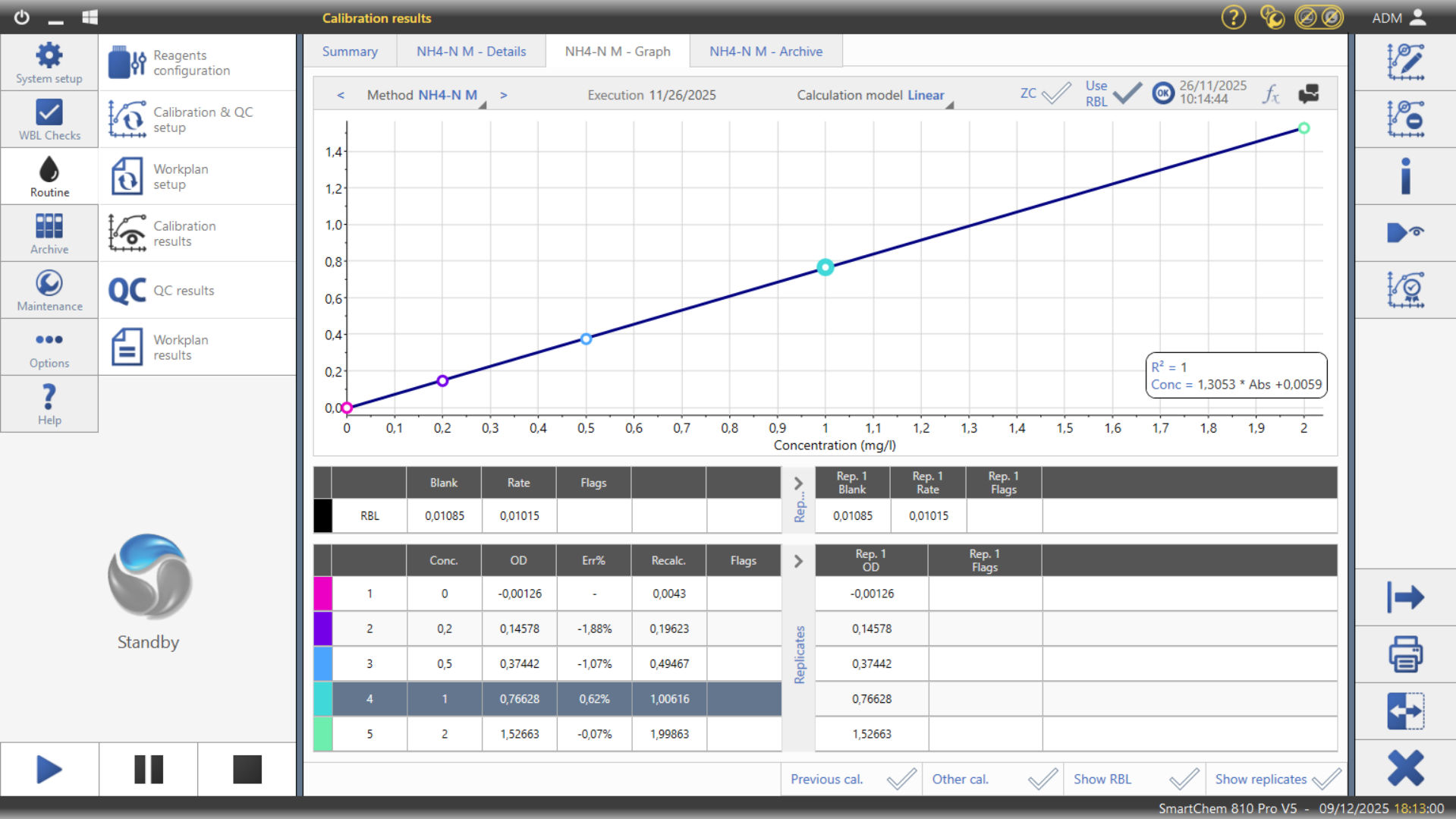

A broad library of validated enzymatic and colorimetric methods enables quick deployment and standardization across all SmartChem® instruments. Preconfigured QC and calibration settings support accurate and reproducible results.
Extensive Library of Standard Test Methods
A broad library of validated enzymatic and colorimetric methods enables quick deployment and standardization across all SmartChem® instruments. Preconfigured QC and calibration settings support accurate and reproducible results.

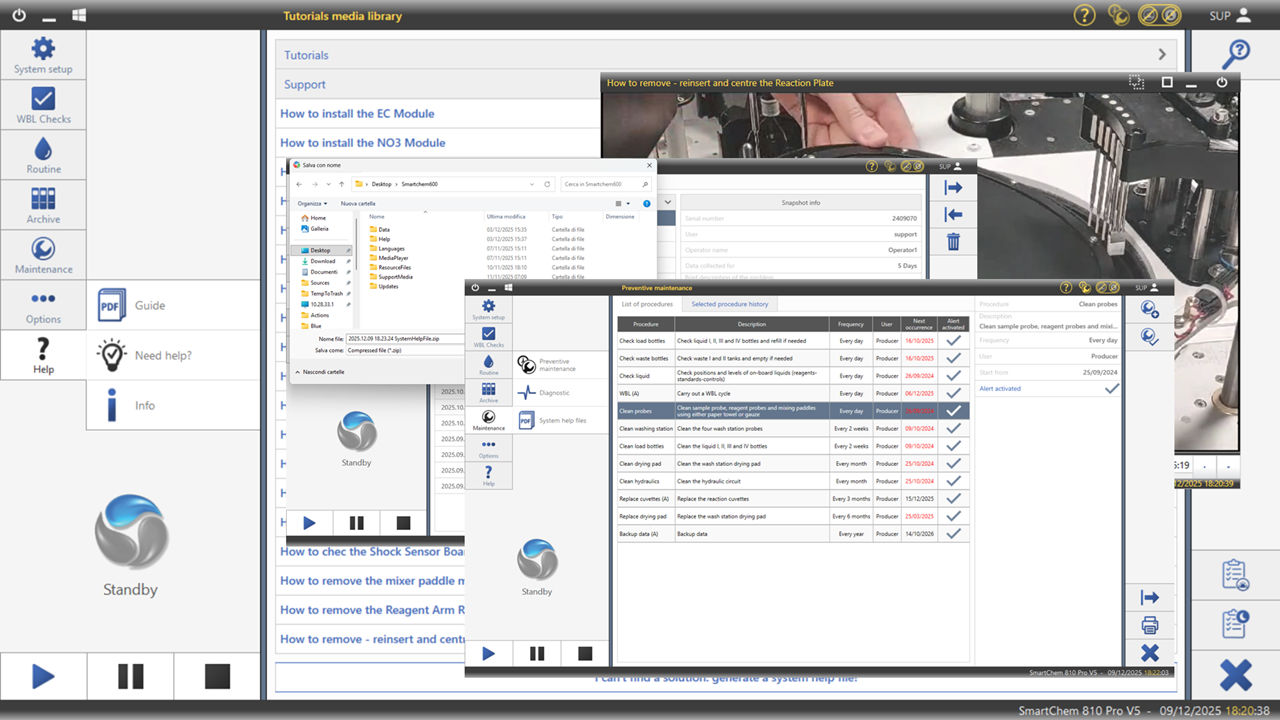

Integrated Multimedia Support & Troubleshooting Tools
Built-in video tutorials, visual troubleshooting guides, and context-aware help assist operators in real time, reducing training needs and minimizing downtime.
Integrated Multimedia Support & Troubleshooting Tools
Built-in video tutorials, visual troubleshooting guides, and context-aware help assist operators in real time, reducing training needs and minimizing downtime.
