MCT460 Online NIR Sensor Series
![MCT460 Online NIR Sensor Series](https://assets-global.website-files.com/63cf34956bc59159af577c42/6509fe09cf9d6dc95e4d40bc_63cf34956bc591a408578df6_MCT_grouped2.png)
Continuous Real-Time Measurement & Control
The Process Sensors MCT460 Series of On-Line Smart NIR Sensors continuously monitor moisture, oil, and other parameters of the materials on a food or industrial process line. With the MCT460 Series, manufacturing operators can monitor raw ingredients and in-line processes, allowing them to maintain consistent product quality, increase yield, and minimize waste.
Features
- Simple to operate, integrate and standardize across multiple lines and locations
- Rugged enclosure withstands harsh conditions
- Proprietary temperature-controlled detector ensures measurement stability
- Fully modular with all components easily replaceable in the field
- Easy to troubleshoot with advanced on-board diagnostics
Benefits
- Improve process control and final quality using accurate measurements of moisture, oil, and other parameters
- Make quick decisions and adjustments to the production line using the analysis data
- Save costs and reduce waste, which improves your company’s bottom line
Applications
Consistent Product Quality, Increased Yield, and Reduced Waste
Applications for On-Line NIR Sensing
The applications of the MCT460 Series range from snack food production to tortillas and cereals, to tobacco, wood, and biofuels. The sensors are capable of a closed loop control of fryers, ovens, belt speed, paper re-moisturizers, and other processes where moisture variation is controlled. The MCT460 Series can also be easily integrated into existing control systems with industry-standard IO protocols, adding data to maximize process efficiency.
Food
- Breakfast cereals
- Cookies
- Corn chips
- Crackers
- Doughs
- Extruded snacks
- Milk powders
- Popcorn
- Pork rinds
- Potato chips
- Pretzels
- Tortilla chips
Industrial
- Biofuels
- Ceramic powders
- Crumb rubber
- Detergents
- Extruded plastics
- Fertilizers
- Hot melts adhesives
- Ore
- Paper
- Pressure sensitive adhesives
- PVB films
- Soaps
- Textiles
- Tobacco
- Wood
![](https://assets-global.website-files.com/63cf34956bc59159af577c42/63cf34956bc5912aa75789f1_PSC-Images-for-Website_0001_8.jpeg)
![](https://assets-global.website-files.com/63cf34956bc59159af577c42/63cf34956bc5916a8f5789a0_PSC-Images-for-Website_0005_4.jpeg)
![](https://assets-global.website-files.com/63cf34956bc59159af577c42/63cf34956bc5916501578a3d_PSC-Images-for-Website_0002_7.jpeg)
![](https://assets-global.website-files.com/63cf34956bc59159af577c42/63cf34956bc5912ee457895b_PSC-Images-for-Website_0006_3.jpeg)
![](https://assets-global.website-files.com/63cf34956bc59159af577c42/63cf34956bc591e9d4578942_PSC-Images-for-Website_0003_6.jpeg)
![](https://assets-global.website-files.com/63cf34956bc59159af577c42/63cf34956bc59196b3578a3e_PSC-Images-for-Website_0008_1.jpeg)
![](https://assets-global.website-files.com/63cf34956bc59159af577c42/63cf34956bc5912aa75789f1_PSC-Images-for-Website_0001_8.jpeg)
![](https://assets-global.website-files.com/63cf34956bc59159af577c42/63cf34956bc5916a8f5789a0_PSC-Images-for-Website_0005_4.jpeg)
![](https://assets-global.website-files.com/63cf34956bc59159af577c42/63cf34956bc5916501578a3d_PSC-Images-for-Website_0002_7.jpeg)
![](https://assets-global.website-files.com/63cf34956bc59159af577c42/63cf34956bc5912ee457895b_PSC-Images-for-Website_0006_3.jpeg)
![](https://assets-global.website-files.com/63cf34956bc59159af577c42/63cf34956bc591e9d4578942_PSC-Images-for-Website_0003_6.jpeg)
![](https://assets-global.website-files.com/63cf34956bc59159af577c42/63cf34956bc59196b3578a3e_PSC-Images-for-Website_0008_1.jpeg)
Lineup
Thousands of MCT460 sensors have been installed at many of the largest food and industrial manufacturing plants in the world. They help operators control moisture to within one tenth of a percent to meet product specs every time. The MCT460 is built using NIR technology that is widely used and accepted in a wide range of industries for moisture, oil, or other on-line measurements.
The MCT460 Series are proven to perform in harsh environmental conditions for food or industrial applications. The MCT460 Series is built to last, simple to install, and virtually maintenance free for years of reliable, consistent results. Choose from three models based on your application.

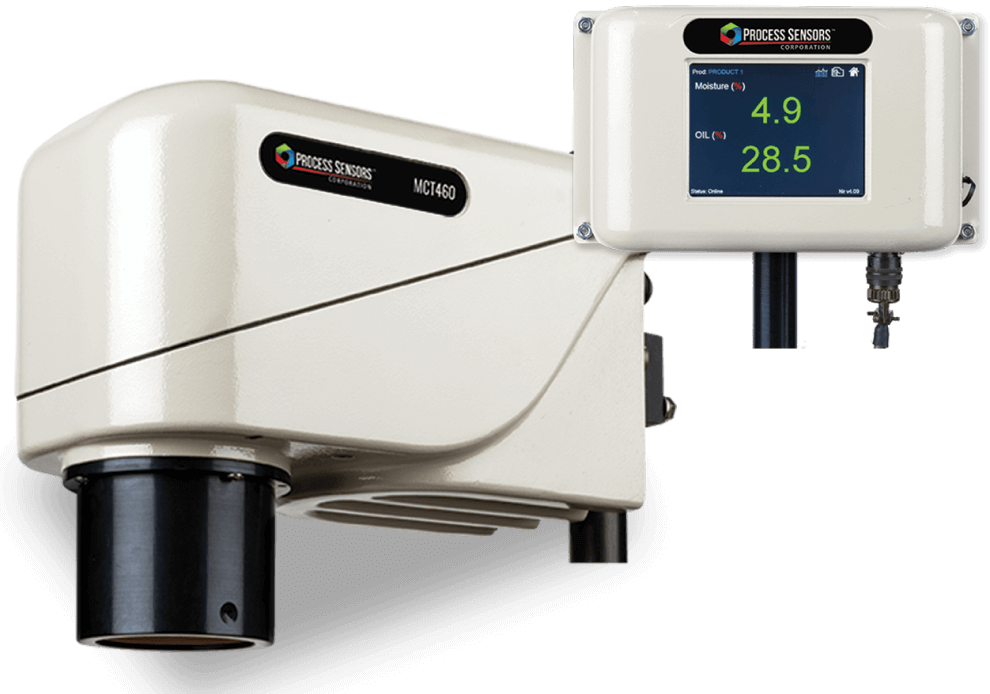

![MCT460 Industrial Online NIR Sensor](https://assets-global.website-files.com/63cf34956bc59159af577c42/6509fe091b3e3363d19cf1a8_63cf34956bc5915900578df7_MCT460_w_display.png)

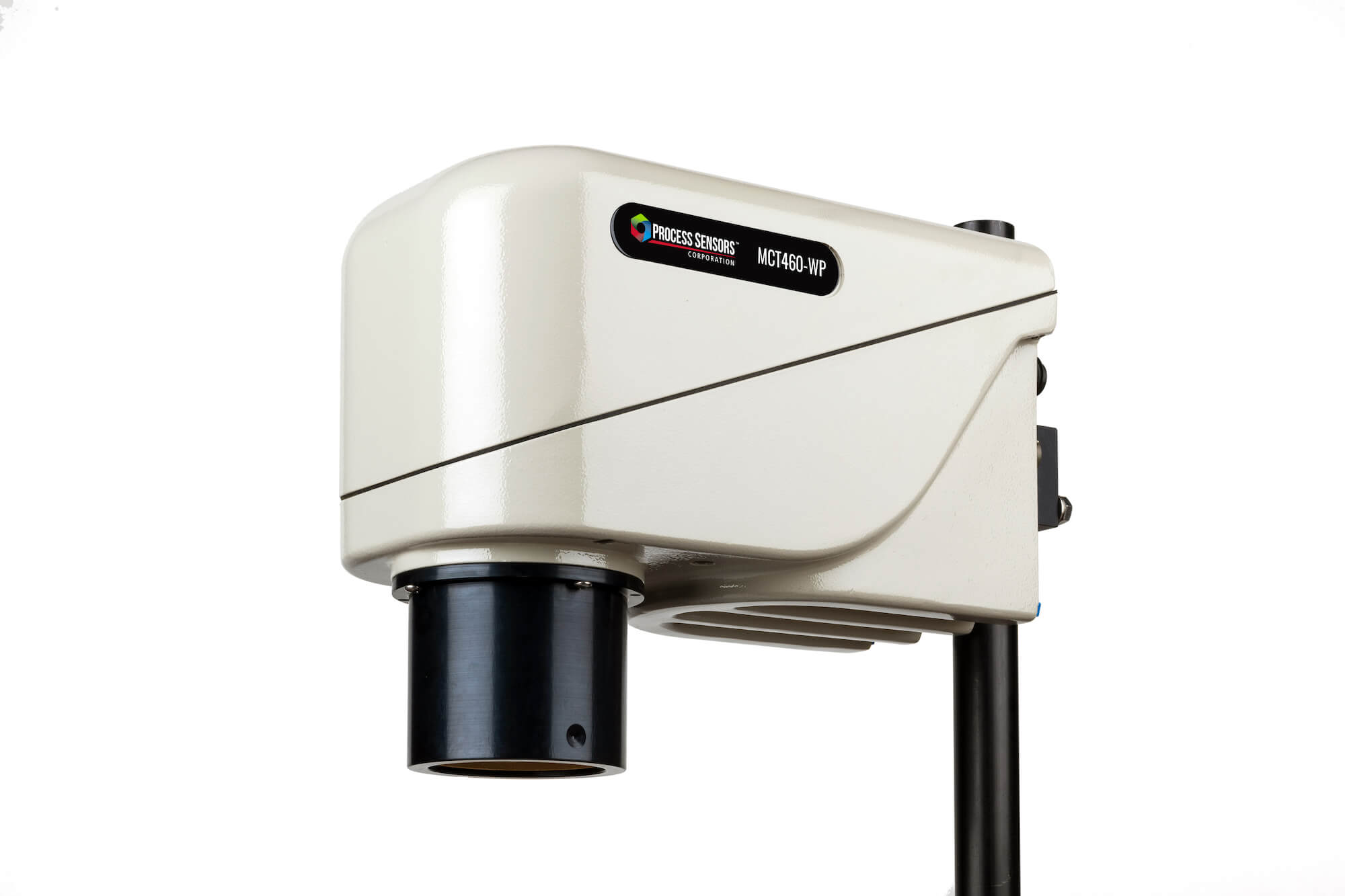

MCT460 – Designed for Industrial Applications
- Designed for use in industrial applications
- In-process monitoring of moisture, coat weight, or other parameters
- Powder coated cast aluminum housing
- Borosillicate glass sample window
- IP67 rated
![MCT466-SF Online NIR Sensor for Snack Food](https://assets-global.website-files.com/63cf34956bc59159af577c42/6509fe09ade0d6913cf72927_63cf34956bc59132d7578df8_MCT466-SF_w_display.png)

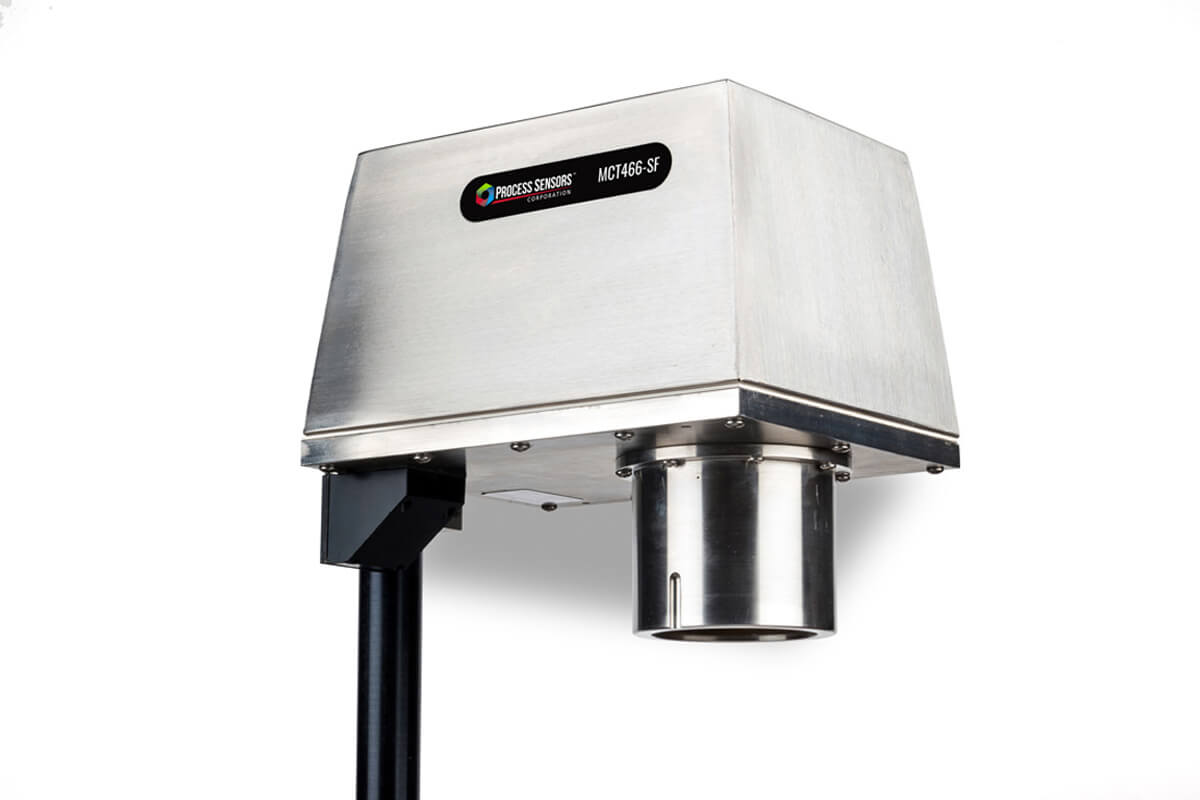

MCT466-SF – Designed for Food Applications
- Designed for demanding conditions in food and snack food manufacturing
- In-process monitoring of moisture and oil
- Stainless steel housing
- Kel-F sample window
- IP67 rated
![MCT469-SF Food Grade NIR Analyzer](https://assets-global.website-files.com/63cf34956bc59159af577c42/6509fe0b105cdb7ce61ea22b_63cf34956bc5914e52578df9_MCT469-SF_w_display.png)

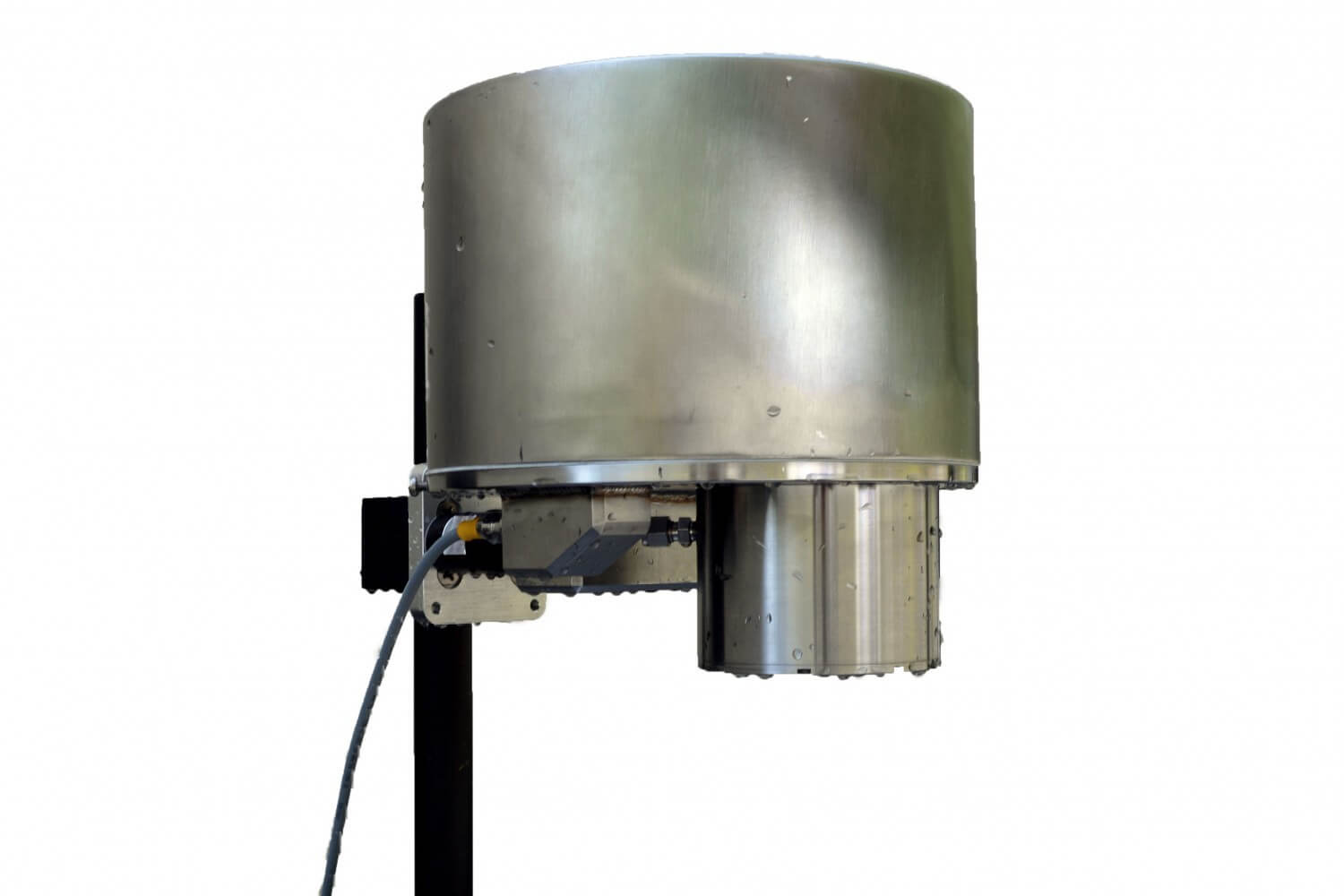

MCT469-SF – Used for Washdown Applications
- Full washdown capability for food and snack food manufacturing
- In-process monitoring of moisture and oil
- Stainless steel housing
- Sapphire sample window
- IP69 rated
How It Works
Proven Technology for Food & Industrial Applications
The MCT460 Series NIR analyzers are integrated into key areas of a production process to continuously monitor incoming raw materials or control processes on the production line. Each option is designed to integrate seamlessly over belt conveyors, auger/screw conveyors, or bins & chutes to analyze moisture, oil, and other on-line measurements.
The MCT460 scanning process is simple but reliable:
- Light from the lamp is directed through a rotating wheel at 2000rpm containing NIR filters selected for the application
- NIR light is directed onto the product being measured
- The light reflected off the product is captured by a mirror within the unit and focused onto a Peltier Cooled Lead sulfide detector.
- The detector’s output is taken by the on-board “smart” circuit board and compares to the internal reference beam. This is then converted into a percent of moisture, oil, and other parameters.
