Product Overview

Multi-Parametric Analysis of 200 Tests per Hour

The AMS Alliance SmartChem® 200 Discrete Analyzer is a fully automated wet chemistry direct read, platform for photometric and electrochemical analysis. It offers a throughput of up to 200 tests per hour with optional pH/Conductivity/ORP analytical and Nitrate sample preparation modules.

It is equipped with 5 universal separate racks for loading of samples, controls and calibrators, allowing up to 126 positions and 16 different reagents to be loaded.

The instrument is supplied with a set of 12 wavelength filters, ranging from 340 - 880 nm, allowing 9 to be mounted on board simultaneously. This allows for visible spectrum photometry. Photometric analysis can be paired with a pH/Conductivity/ORP testing via built-in module.

In addition, The SmartChem® 200 can be equipped with a reagent cooler system and a unique onboard, regeneration capable preparatory Nitrate Cd reduction module and a bar code reader for sample loading.

See how SmartChem® is being used in the scientific community:

National Center for Biotechnology Information: https://www.ncbi.nlm.nih.gov/pmc/?term=smartchem
Google Scholar: https://scholar.google.com/scholar?hl=en&as_sdt=0%2C5&q=smartchem+ams+alliance&btnG=

Features

  • Extensive physical chemical analysis of drinking water, wastewater, and soil samples
  • Multi-parametric (consolidation) automated platform
  • Photometric and Electrochemistry analysis
  • Low water consumption
  • IF THEN driven test sequences
  • Programmable and monitored cuvette wash module
  • Reagent inventory system and liquid level sensing
  • pH/Cond/ORP and Nitrate add-on modules available
  • Available ready-to-use reagents for diverse methods

Benefits

  • Increased efficiency and productivity through instrument consolidation and testing automation. Free-up your staff from tedious and repetitive tasks.
  • Microlitre reactions - Reduced reagent usage and waste generation – improved cost efficiency and environmental footprint.
  • Guaranteed stability, reproducibility and traceability with our ready-to-use dedicated reagents.
  • Improved automation level – allowing full LIMS integration.
  • Automated out-of-range retesting decision making.
  • Cost end environmental efficiency via our Cuvette Monitored Wash Cycle.
  • Optimization of time-consuming techniques such as pH, Cond, ORP.
Chemical & Clinical

Applications

More Parameters, Better Results

The SmartChem® 200 is widely used for the automation of manually run wet chemistry testing in environmental, industrial, and research laboratories, including regulatory and quality control testing.

Its applications include, but are not limited to:

  • Water and environmental
  • Soil extracts, plant extracts, and fertilizers
  • Food and feed
  • Beverages, wine and beer
  • Chemical

See our list of test parameters by sub-segment here. (not limited)

No items found.
No items found.
No items found.
No items found.
Chemical & Clinical

Product Lineup

SmartChem® 200
  • Up to 200 tests/hour
  • Benchtop analyzer
  • 5 racks for continuous loading of samples (126 position)
  • On-board reagents: up to 16 reagents
  • ~1 rack for 10 reagent positions
  • ~1 rack for 6 reagent positions and 10 stock standards
  • ~2 dedicated positions for diluents and other (spike solutions, QC samples)
No items found.
Chemical & Clinical

How it Works

A True Discrete, Direct Read Measurement System

The SmartChem® 200 uses direct read photometry, utilizing a true discrete, direct read measurement system and reusable, high-purity optical cuvettes, eliminating compromised sample measurement.

SmartChem® simplifies your laboratory's work in a short series of steps:

  1. Load samples and reagents in your SmartChem®
  2. Set up your test
  3. Load your work program in the SmartChem® software
  4. Launch your programmed routine
  5. Get the results

Additionally, SmartChem® cuvettes are being washed after each use, making them available for the next reaction/measurement and reducing your dependence on consumables and their availability.

Analytical Module

To start, select one or both of these options:

  • NO₃
  • pH/Cond/ORP

Then add the desired option:

  • Reagent Cooler
  • Barcode Reader
Chemical & Clinical

System Components

Performance, Flexibility & Precision

The SmartChem® 200 is modular; you can configure your analyzer to suit your needs.

Available Configurations

The instrument is modular allowing you to configure your analyzer.

Analytical Module Both optional modules can be selected on SmartChem® 200 NO 3 pH/Cond/ORP
Reagent Cooler Option
Barcode Reader Option
Chemical & Clinical

Reagents

Ready-to-Use Reagents

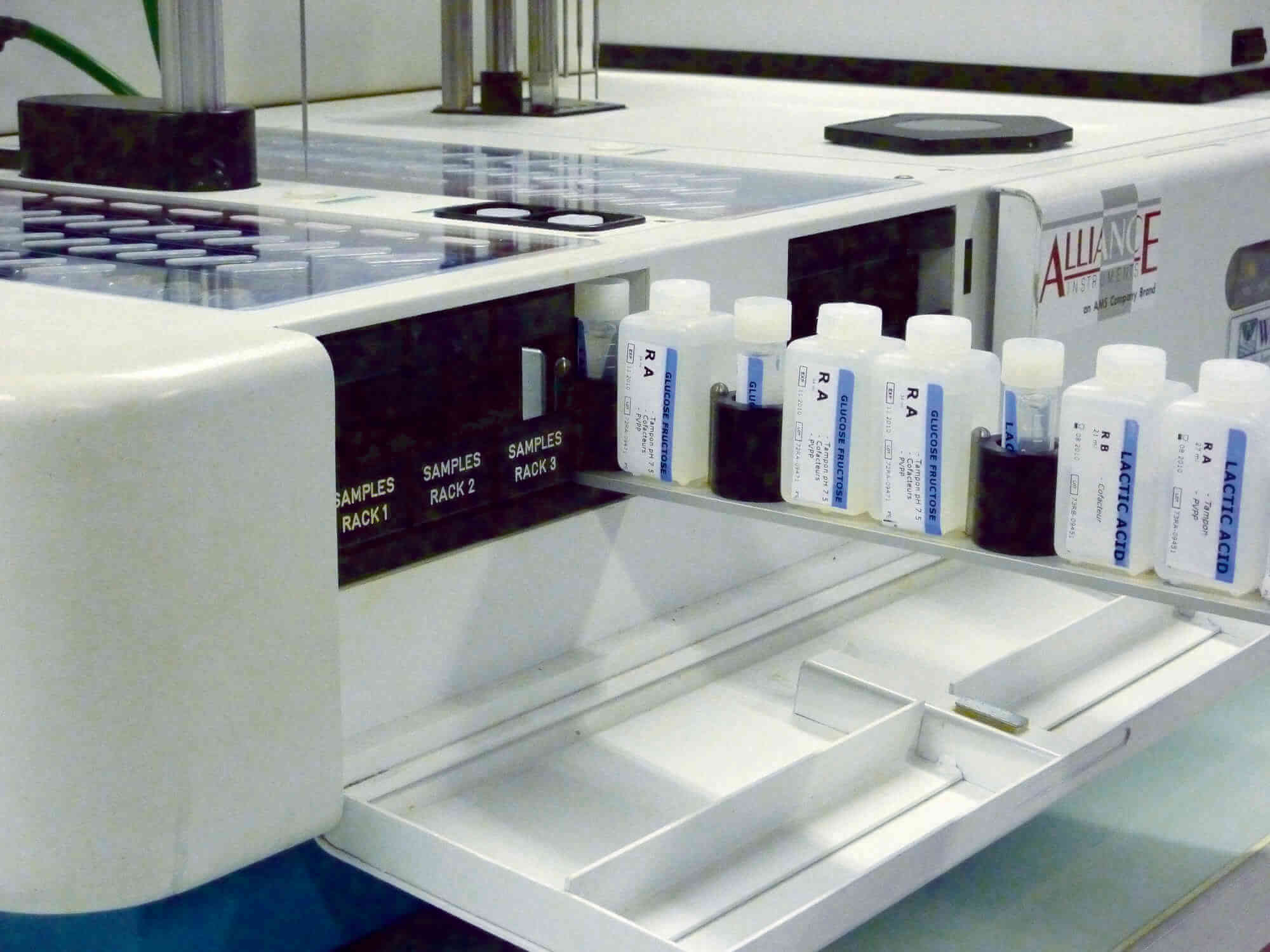

We offer a full range of enzymatic and colorimetric reagents dedicated to our SmartChem® range of discrete analyzers. Developed, tested and validated by our application laboratory, they will guarantee perfect stability and reproducibility of your analyses.

Very easy to use, they are liquid, supplied in specific bottles made for SmartChem®.

This ready-to-go solution greatly simplifies the preparation of your analysis and facilitates the use and storage of reagents. It also secures your analyses with reagents adapted to your application and your instrument.

To order reagents, please send an email to orders@kpmanalytics.com.

Chemical & Clinical

Software

The SmartChem® 200 software allows the user to enjoy a graphical interface fully replicating the instrument as seen by the operator and makes all procedures easy.

The SmartChem® 200 software allows the user to enjoy a graphical interface fully replicating the instrument as seen by the operator and makes all procedures easy.

System Monitor

Loading samples, reagents, controls and calibrators is done using an exact digital replica of the instrument’s panel and this allows the operator to immediately recognize all required steps.

Reagents’ levels, cuvette status and other checks are displayed in the System Monitor Screen.

System Monitor

Loading samples, reagents, controls and calibrators is done using an exact digital replica of the instrument’s panel and this allows the operator to immediately recognize all required steps.

Reagents’ levels, cuvette status and other checks are displayed in the System Monitor Screen.

Workplan Setup

After having loaded all required reagents, controls, calibrators and samples, the operator is prompted to set-up the work plan, including any required IF-THEN testing as per method or laboratory requirements.

Workplan Setup

After having loaded all required reagents, controls, calibrators and samples, the operator is prompted to set-up the work plan, including any required IF-THEN testing as per method or laboratory requirements.

Calibration Curve

Calibration can be run automatically from the SmartChem® 200 software and it uses only a concentrated standard, because the analyzer will make the relevant dilutions as defined by the standard points in the calibration.

Calibration Curve

Calibration can be run automatically from the SmartChem® 200 software and it uses only a concentrated standard, because the analyzer will make the relevant dilutions as defined by the standard points in the calibration.

Workplan

Once the test routine is finished, all results are presented in a report that can be exported to LIMS.

Workplan

Once the test routine is finished, all results are presented in a report that can be exported to LIMS.

Levey-Jennings QC Graph

For laboratories using control samples, the SmartChem® 200 software includes Levey-Jennings QC Graphs that allow the laboratory to see not only the validity of the analytical series run, but also to see any potential trends in the QC samples that may indicate a need to undertake preventive actions well before any issues may arise.

Levey-Jennings QC Graph

For laboratories using control samples, the SmartChem® 200 software includes Levey-Jennings QC Graphs that allow the laboratory to see not only the validity of the analytical series run, but also to see any potential trends in the QC samples that may indicate a need to undertake preventive actions well before any issues may arise.

Additional Software Features
  • Barcode for sample loading - optional
  • Addition of new samples during the run
  • Accurate estimation of completion of the analysis
  • Calibration points recalculation
  • Pre-dilution
  • Standard curves
  • Computer-controlled micro pipettor
  • NELAC - EPA compliant
  • Real-time presentation of sample and reagent status
  • Dynamic monitoring of test execution
Additional Software Features
  • Barcode for sample loading - optional
  • Addition of new samples during the run
  • Accurate estimation of completion of the analysis
  • Calibration points recalculation
  • Pre-dilution
  • Standard curves
  • Computer-controlled micro pipettor
  • NELAC - EPA compliant
  • Real-time presentation of sample and reagent status
  • Dynamic monitoring of test execution
Chemical & Clinical

Specifications

Dimensions Height x Width x Length: 42 x 65 x 100 cm (16.5 x 25.6 x 39.4 in.)
Weight 65 kg (143 lbs)
Power 300 Watts
Assay Type End Point, Kinetic, Differential, Bi Chromatic Assays, Electrochemical Testing (Optional), Fully Programmable
On-Board Reagents 2 Racks Provided to Contain Up to 16 Reagents as Follows:
1 Rack for 10 Reagent Positions
1 Rack for 6 Reagent Positions and 10 Stock Standards
2 Dedicated Positions for Diluents and Other (Spike Solutions, QC Samples, etc.)
Sample Loading 5 Racks for Continuous Loading of Samples (126 Positions)
Urgent Sample Analysis Allowed at Any Time
Throughput Up to 200 Tests/Hour
Reading System Direct Photometry & Electrochemical (Optional
Photometer: Multi-Wavelength optics, Double Beam
Wavelength: 12 Wavelengths Available with 9 on Board
Source: Halogen Lamp 6V/10W
Optical Path: 10 mm
Linear Range: 0.001 – 2.500 Abs
Resolution: 0.0001 Abs
Minimum Reaction Volume 300 μl
Sampling System One Mechanic Arm Provides All Sampling Operation with:
Capacitive Liquid Level Sensing
Reagent Pre-Warming at 37°C (98.6°F)
Automatic Probe Washing
Sample Pre-Dilution
Sample Rerun with or without Dilution
Dilutor Automatic Dilution in Pre- and Post-Dilution
Reaction Plate Holds 60 Cuvettes that Perform the Following Operations:
Automatic Cuvette Washing
Incubation Temperature Control 37°C (98.6°F) +/- 0.3
Continuous Monitoring of Cuvette Quality
Separate Waste Lines to Minimize Hazard Disposal Management
Use of Washable Cuvettes (Green Technology)
Available Configurations Analytical Module: NO3, pH/Cond/ORP
Reagent Cooler (Option)
Barcode Reader (Option)
Complementary Products Ready-to-Use Reagents
