Moisture & Compositional

ST-3300 Process RF Analyzer

ST-3300 Process RF Analyzer
ST-3300 Process RF Analyzer

Product Overview

Smart RF Moisture Analyzer for Industrial Manufacturing

The Sensortech ST-3300 is a smart analyzer for process moisture measurement and control of materials used in chemical, mining, textiles, agriculture, and other industrial industries. Used by quality assurance professionals, the ST-3300 improves methods for controlling moisture at key areas in a manufacturing process, helping operations conserve energy, reduce waste, increase capacity, and generate revenue.

Since many materials used in industrial processes have quality standards relating to moisture, the ST-3300 is a smart, simple, and effective solution to help operators manage and control moisture at critical stages of their process. As a radio frequency dielectric measurement (RF) technology, the ST-3300 provides a rapid and complete moisture profile of products at full line speeds.

Sensortech Systems ST-3300 RF Moisture Analyzer
Sensortech Systems ST-3300 RF Moisture Analyzer
No items found.

Features

  • Signal processing capabilities can be integrated into transmitter electronics
  • Mounting options available to accommodate diverse process locations
  • Interfaces directly with your preferred HMI (PC, PLC, and optional 12” touch screen display)
  • Advanced digital conditioning for improved standard of resolution and stability
  • Optional product temperature measurement capabilities available

Benefits

  • Customizable to your operation: Select from a wide range of configurations to integrate moisture measurement capabilities almost anywhere in your process
  • Simple implementation: A powerful configuration software package provides management utilities for all sensors in your process from a laptop or PC
  • Ruggedized design: Designed to function virtually maintenance-free in challenging operating conditions and in temperatures up to 540°C (1000°F)
ST-3300 Process RF Analyzer

Get in Touch with Us!

Learn More

Applications

Industrial Applications for In-Process RF Moisture Detection

  • Lumber and Wood: Saw dust, hog fuel, veneer, plywood, biomass, wood pellets
  • Building Products: Gypsum products, brick, board products
  • Textile Mill Products: Broad-woven fabric, non-woven fabric
  • Paper Products: Pulp, paper, paperboard, containers and boxes, converted paper and paperboard products
Gypsum
Building Materials
Paper Products
Lumber
Textiles
Bricks
No items found.
Start the Conversation - Get in Touch
Alt Text Title
ST-3300 Process RF Analyzer

Measure Quality Where it Matters

Learn More

Product Lineup

No items found.
KPM Analytics Distribution

Get in Touch with Us!

Learn More

How It Works

Full Moisture Profiling With Penetrating RF Technology

ST-3300 utilizes RF technology, which is a penetrating measurement method that uses radio frequency dielectric measurements to analyze the full moisture composition of the product. It is an alternative moisture measurement to near infrared (NIR) technology, which measures the surface of a product without penetrating. This article explains the key differences between NIR and RF.

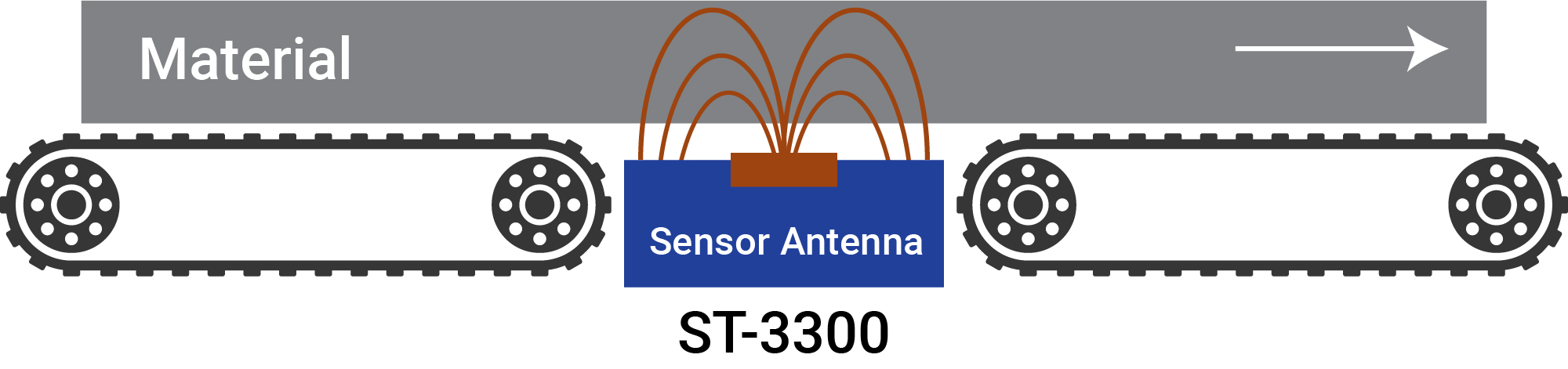

As product passes across rollers, the ST-3300 transmits a RF signal from the upper and lower sensor electrodes surrounding the passing material. The measurement area at the bottom of the sensor antenna measures the moisture conditions in the local environment. This reading is displayed in real-time on a PC, laptop, or optional touch screen display, allowing operators to adjust their process to control moisture or other parameters as needed.

KPM Analytics Wheat Field

Request A Demo

Get in Touch

System Components

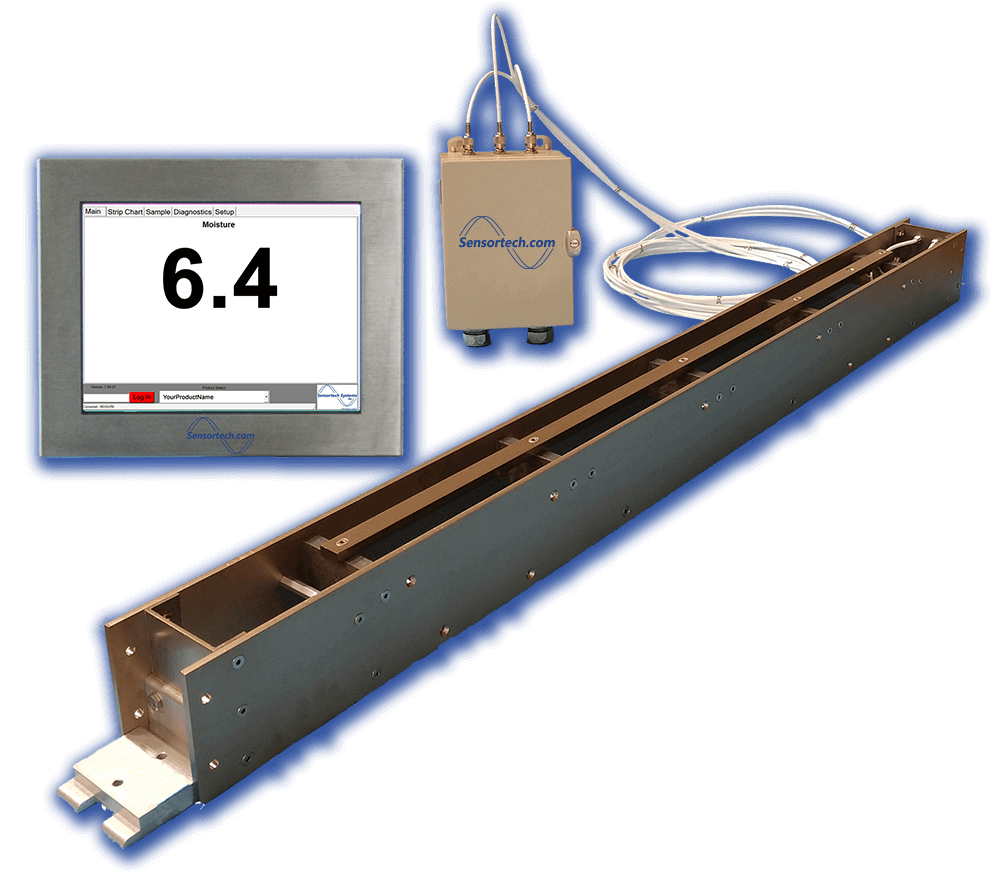

The ST-3300 features a patented radio frequency (RF)measurement principle enhanced by all-digital phase lock loop signal conditioning, presenting a radically improved standard of resolution and stability. Signal processing capabilities are integrated into the transmitter electronics, which interfaces directly with a PC, PLC, HMI, or other preferred platform. User-friendly configuration software manages the operation of theST-3300 from a PC, laptop, or optional touch screen display.

The ST-3300 is an open-frame configuration that is installed between conveying belts or rollers existing or entering a kiln or dryer.

  • Antenna lengths available from 15 cm – 244 cm (6- 96 in.), dependent upon operating temperature
  • Ideally suited for board materials (gypsum, plywood, etc.)
No items found.


KPM Analytics Global

Get in Touch with Us!

Learn More


KPM Analytics Snack Foods

Get in Touch with Us!

Learn More

Software

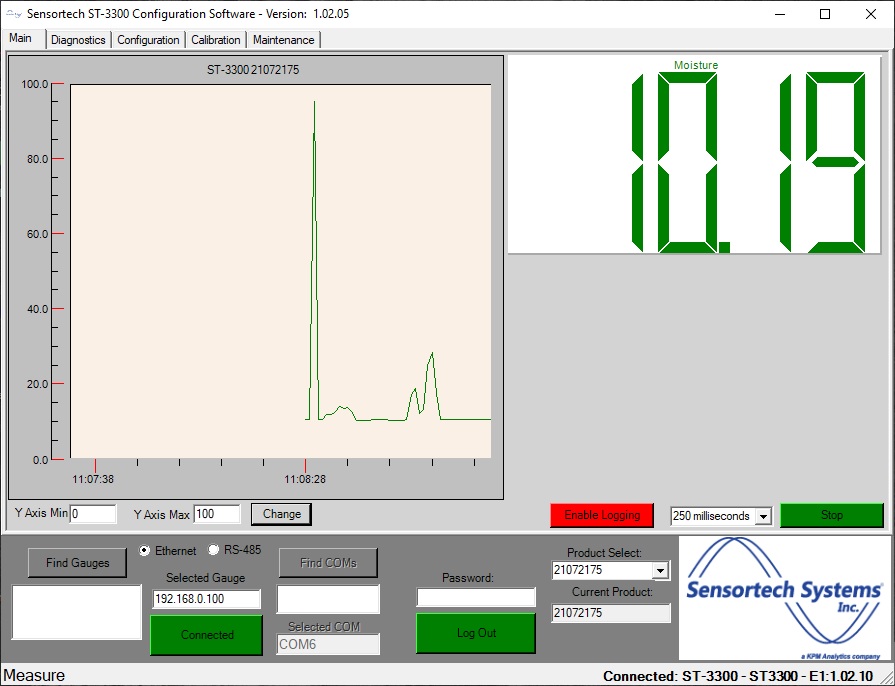

The ST-3300 includes a powerful configuration software package that provides management utilities for all sensors in your process through a laptop, PC, or optional touch screen display. Moisture and other parameters are displayed in a clear and easy-to-use interface.

  • Graphic display and data-logging features for saving historical data to a .xls or .csv file formats.
  • Select up to 50 stored calibrations (product codes) for quick and simple system setup
  • Monitor sensor health and performance from the Diagnostics Screen

The ST-3300 includes a powerful configuration software package that provides management utilities for all sensors in your process through a laptop, PC, or optional touch screen display. Moisture and other parameters are displayed in a clear and easy-to-use interface.

  • Graphic display and data-logging features for saving historical data to a .xls or .csv file formats.
  • Select up to 50 stored calibrations (product codes) for quick and simple system setup
  • Monitor sensor health and performance from the Diagnostics Screen

The ST-3300 includes a powerful configuration software package that provides management utilities for all sensors in your process through a laptop, PC, or optional touch screen display. Moisture and other parameters are displayed in a clear and easy-to-use interface.

  • Graphic display and data-logging features for saving historical data to a .xls or .csv file formats.
  • Select up to 50 stored calibrations (product codes) for quick and simple system setup
  • Monitor sensor health and performance from the Diagnostics Screen

The ST-3300 includes a powerful configuration software package that provides management utilities for all sensors in your process through a laptop, PC, or optional touch screen display. Moisture and other parameters are displayed in a clear and easy-to-use interface.

  • Graphic display and data-logging features for saving historical data to a .xls or .csv file formats.
  • Select up to 50 stored calibrations (product codes) for quick and simple system setup
  • Monitor sensor health and performance from the Diagnostics Screen
Alt Text Title
Community Login

Request A Demo

Get in Touch

Installation Options

The ST-3300 features a patented radio frequency (RF) measurement principle enhanced by all-digital phase lock loop signal conditioning, presenting a radically improved standard of resolution and stability. Signal processing capabilities are integrated into the transmitter electronics, which interfaces directly with a PC, PLC, HMI, or other preferred platform. User-friendly configuration software manages the operation of the ST-3300 from a PC, laptop, or optional touch screen display.

The ST-3300 is an open-frame configuration that is installed between conveying belts or rollers existing or entering a kiln or dryer.

  • Antenna lengths available from 15 cm – 244 cm (6 - 96 in.), dependent upon operating temperature
  • Ideally suited for board materials (gypsum, plywood, etc.)

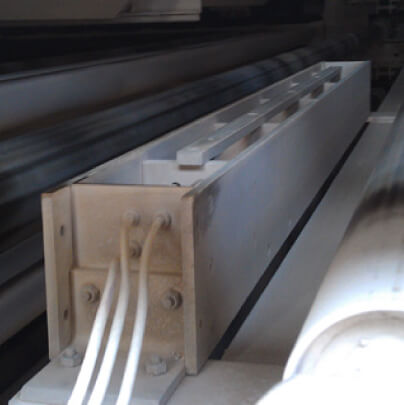

ST-3300 in a high-temperature application

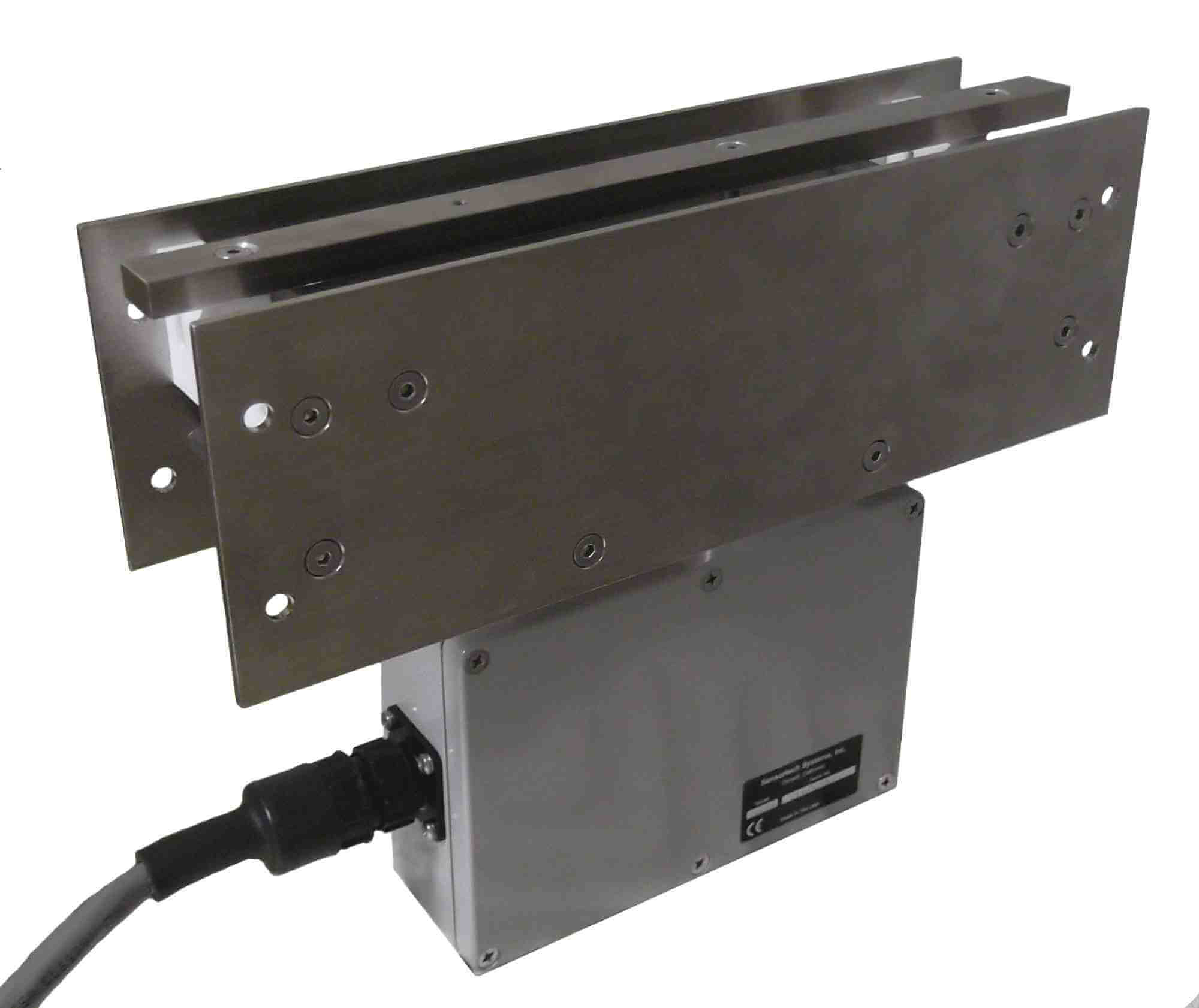

ST-3300 with attached electronics for low temperature applications.
No items found.
Alt Text Title
KPM Analytics Hot Copper Ore

Request A Demo

Learn More

Accessories

ST-3300 Process RF Analyzer

Available Accessories

No items found.
KPM Analytics Global

Get in Touch with Us!

Learn More

Specifications

ST-3300

Dimensions Length x Width x Height 56 x 59 x 79 cm (22 x 23.5 x 31 in.)
Weight 43 kg (94.6 lbs)
Power 110/240VAC, 50/60 Hz, 30 Watts
Antenna Lengths Low Temperature = 15.2 cm (6 in.), 30.5 cm (12 in.), 61 cm (24 in.), 66 cm (26 in.), 122 cm (48 in.), 244 cm (96 in.)
High Temperature = 61 cm (24 in.), 122 cm (48 in.), 183 cm (72 in.), 244 cm (96 in.)
Ultra High Temperature = 122 cm (48 in.), 152 cm (60 in.)
Sensor Temperature Low: 0-60°C (32-140°F); High: Up to 260°C (500°F); Ultra High: Up to 540°C (1000°F)
Sampling Rate 10mS, 100mS, 1S (Selectable)
Accuracy Moisture ±0.05% - 0-1% Range; Moisture ±0.10% - 0-10 % Range; Moisture ±0.25% - 10-30% Range; Moisture ±1.00% - 30-60% Range
Resolution Moisture ±0.02%
Communications Standard I/O: 1 4-20mA Output, 1 RS-485 Full Duplex, 1 Digital Input, 1 Product Temp Input, 1 Ethernet TCP/IP
Advanced I/O: 2 4-20mA Outputs, 2 Digital Inputs, 1 Product Temp Input
Advanced Options: PROFIBUS, PROFINET, DeviceNet, EtherNet/IP
KPM Analytics Farming

Get in Touch with Us!

Learn More
KPM Analytics Distribution

Find a Distributor

View our global distributor map and use the intelligent search feature to find a KPM Analytics distributor in your region.

Learn More
