Product Overview

Better Measurements, More Measurements

TheiaVu® WD-300 assists quality control professionals to save a significant amount of time while obtaining more precise and repeatable measurement data to improve their production processes. Because some quality parameters are difficult or impossible to quantify using manual methods they are not considered as part of the criteria during quality checks. TheiaVu® allows you to perform these measurements at a fraction of the speed and with a great deal of precision compared to manual methods. The WD-300 is best suited for applications that require washdown procedures such as, but not limited to, meat and poultry.

No items found.

Features

  • Powerful: Quantify product features difficult to measure manually
  • Automatically collects critical product data
  • Easy to use operator interface
  • Fast: up to 10 objects/second*
  • Versatile: Can be used in lab or production area
  • Flexible: built-in library with 100+ measurements and growing
  • Measure products up to 91 cm (36” long)

*Actual speed will depend on the size of object and number of different measurements per object

Benefits

  • Perform quality checks faster and with better repeatability
  • Know more about your product compared to manual methods
  • Ensure consistent product quality from batch to batch
  • Cost savings through reduced labor and waste
  • Brand protection
  • Save time with reporting, all results are saved & organized
  • Achieve competitive advantages
TheiaVu® WD-300 Benchtop Vision

Get in Touch with Us!

Learn More

Applications

Measure Quality Where It Matters

Used in the lab or at-line, TheiaVu® systems produce critical measurement data on final products or at various stages throughout production for both quality and process control.

Typical Applications Include:

  • Incoming Inspection: Inspect raw materials quality, such as fruits, vegetables, dough, and more
  • R&D: For bakeries or ingredient producers, quantify the baked goods fresh out of the oven based on a new formulation or a new ingredient (can also be before baking, during proofing, etc)
  • Process Improvement: Quality sampling at every stage of production provides teams with the data they need to improve processes
  • Quality Control: Before packaging, inspect final products or works-in-progress for quality control
  • Program Development: Assistance with creating standards for quality assurance programs

Finished Products:

  • Meat and Poultry (Raw, breaded, grilled, patties, etc)
  • Bread Products (loaves, baguettes, buns, bagels, english muffins, croissants, muffins, etc)
  • Cookies, crackers, biscuits
  • Snack Foods (snack bars, pretzels, potato chips, French fries, desserts, chocolates, candies, etc)
  • Cheese Products (blocks, snack pieces, wax covered, etc)
No items found.
Start the Conversation - Get in Touch
TheiaVu® WD-300 Benchtop Vision

Measure Quality Where it Matters

Learn More

Product Lineup

No items found.
KPM Analytics Distribution - Abstract Background

Get in Touch with Us!

Learn More

How It Works

Compact Machine Vision for Quality Control

TheiaVu® vision inspection systems, also referred to as machine vision systems, use a selection of high-speed cameras, a laser, and imaging software to detect and measure objects as they move along the built-in conveyor belt.

Our proprietary measura® software suite and measurement algorithms can determine the size, shape, color, or composite measurement of any object and convert this information into standard units for quality control purposes. Results are displayed in real-time and data for every object is saved for future analysis and reporting.

To Inspect a Product:

  1. Power on the system
  2. Select the desired measurement profile using built-in operator interface
  3. Place the object on the moving conveyor belt
  4. Instantly view the results on-screen

You can continuously feed multiples of the same product onto the belt without resetting the system and all data will be saved. There is no need for manual note taking or spreadsheets.

Product profiles are easy to adjust or create using the measura® Toolbox module (included). All you need to do is enter your specifications and save. Next time you load the profile, your changes are applied.

KPM Analytics Wheat Field - Harvesting - Cereal and Grains Quality

Request A Demo

Get in Touch

System Components

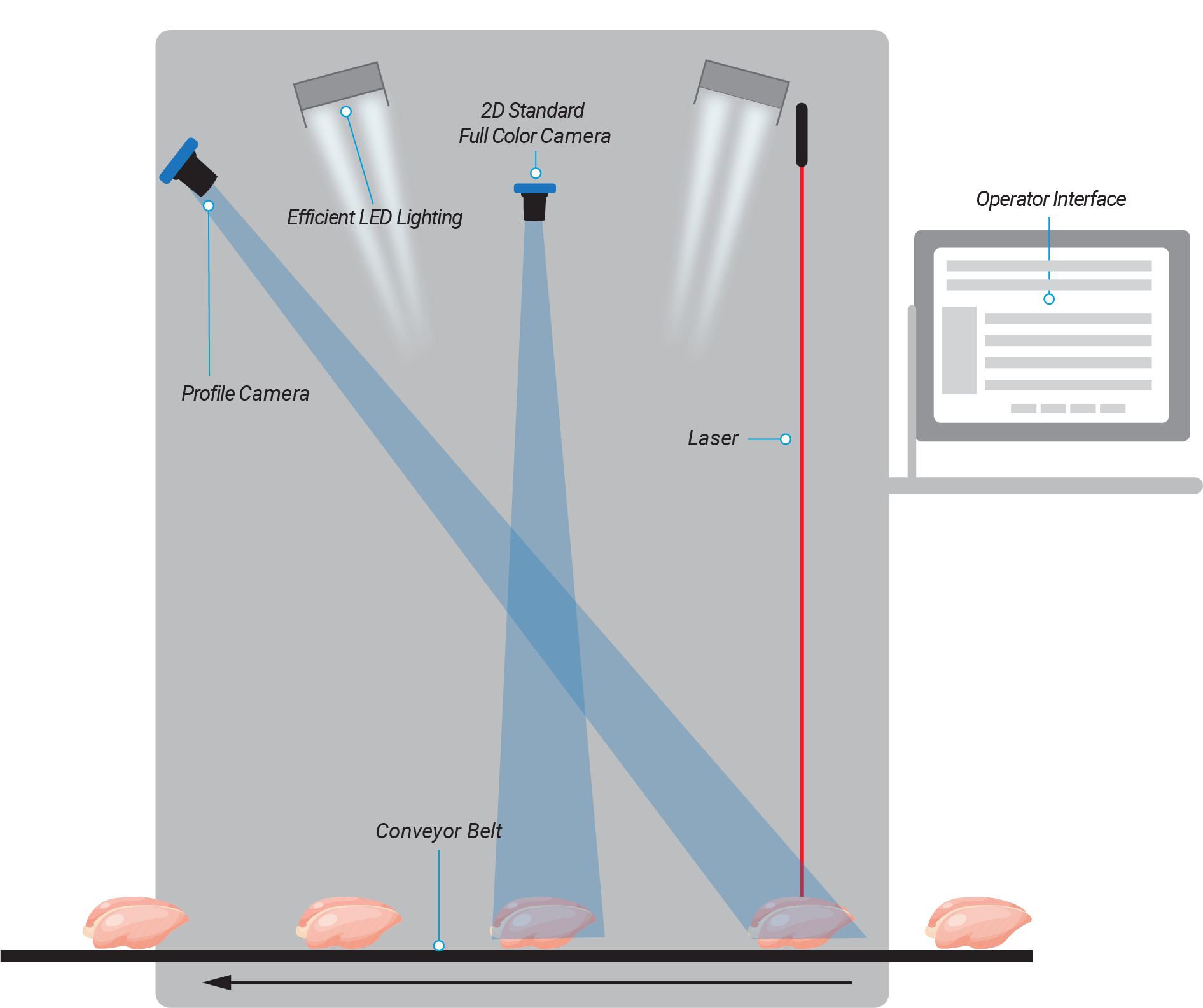

TheiaVu® WD-300 is equipped with a 12” wide conveyor, standard 2D full-color and 3D monochrome profile cameras and efficient LED lighting for standard resolution applications.

Lighting

TheiaVu® WD-300 models are deployed with efficient white LED for accurate color measurement.

Camera Options

The TheiaVu® WD-300 includes:

  • 1, 2D full color camera with resolutions of approx. 0.2 mm/pix (resolution varies by conveyor width)
  • 1, 3D monochromatic profile camera (works with a laser source for 3D profile)

Other Components

  • Stainless steel conveyor ensures fast sampling and low maintenance
  • Integrated and adjustable system touchscreen allows for easy operator interaction
  • Accessible USB and network connectors allow for easy connection of peripheral devices
  • Plugs directly into any standard electrical outlet (120/220VAC)
No items found.
KPM Analytics Global

Get in Touch with Us!

Learn More

Measurements

A LARGE MEASUREMENT LIBRARY, AND GROWING

Using vision technology, your products are characterized in meaningful ways, including complex details that are difficult and time-consuming with traditional manual methods. Our standard measurements library consists of over 100 basic and advanced algorithms and growing.

Heights: Peak, Mean, Center, Edge

Diameters: Min, Max, Mean

Slopes: Mean End-to-End, Side-to-Side

Shape: Length, Width, Roundness

Color: Average, Topping, Top Surface w/o Topping

Surface Features: Number of Splits, Split Width, Topping Coverage

Others: Surface Area, Volume

External Devices (optional): Weights, Temperatures

ADVANCED QUALITY CONTROL MEASUREMENTS

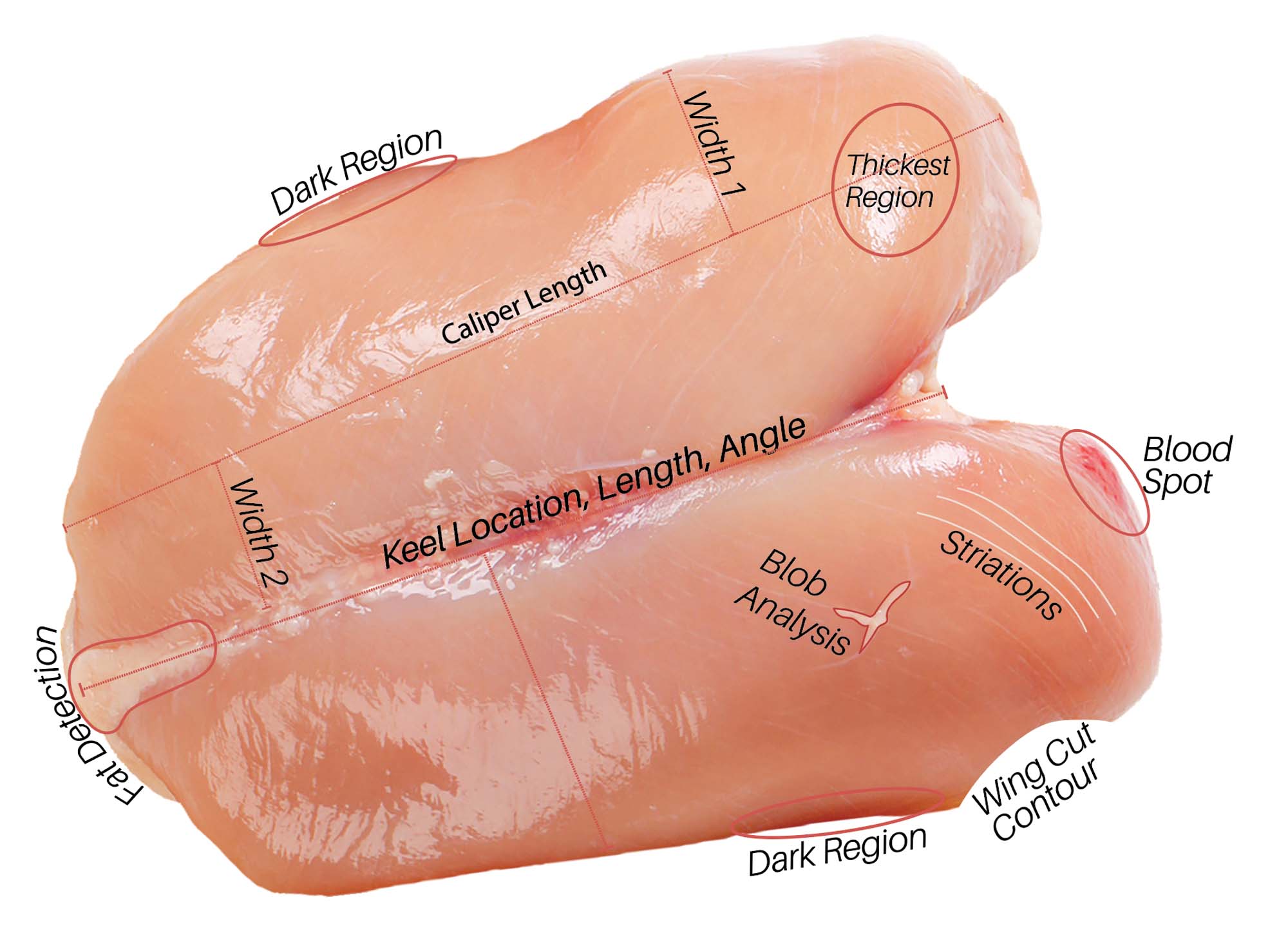

Thickness, fat percentage, blood spots, caliper measurements, adaptive measurements, striations, keel information, wing cuts, breading coverage/voids, bun coverage, and more.

KPM Analytics Quality Control Solutions for Snack Food Manufacturers

Get in Touch with Us!

Learn More

Software

Powerful And Easy to Use measura® Software Suite

The easy-to-use measura® software suite includes a built-in library of over 100 different types of measurements and configurable camera and lighting components for different product needs. The software simplifies the inspection process from product set-up and real-time inspection to process monitoring and quality analytics.

Powerful And Easy to Use measura® Software Suite

The easy-to-use measura® software suite includes a built-in library of over 100 different types of measurements and configurable camera and lighting components for different product needs. The software simplifies the inspection process from product set-up and real-time inspection to process monitoring and quality analytics.

Powerful And Easy to Use measura® Software Suite

The easy-to-use measura® software suite includes a built-in library of over 100 different types of measurements and configurable camera and lighting components for different product needs. The software simplifies the inspection process from product set-up and real-time inspection to process monitoring and quality analytics.

Powerful And Easy to Use measura® Software Suite

The easy-to-use measura® software suite includes a built-in library of over 100 different types of measurements and configurable camera and lighting components for different product needs. The software simplifies the inspection process from product set-up and real-time inspection to process monitoring and quality analytics.

  • Define your products
  • Configure your measurements
  • Set limits
  • Interactive blob set-up
  • Playback recordings
  • Define your products
  • Configure your measurements
  • Set limits
  • Interactive blob set-up
  • Playback recordings
  • Define your products
  • Configure your measurements
  • Set limits
  • Interactive blob set-up
  • Playback recordings
  • Define your products
  • Configure your measurements
  • Set limits
  • Interactive blob set-up
  • Playback recordings
  • Fast, up to 100 objects/ second
  • Intuitive operator screens
  • Display trends, lane data, and defect summaries
  • Record data
  • Fast, up to 100 objects/ second
  • Intuitive operator screens
  • Display trends, lane data, and defect summaries
  • Record data
  • Fast, up to 100 objects/ second
  • Intuitive operator screens
  • Display trends, lane data, and defect summaries
  • Record data
  • Fast, up to 100 objects/ second
  • Intuitive operator screens
  • Display trends, lane data, and defect summaries
  • Record data
  • Display up to 5 measurements
  • Multiple display platforms
  • Visual alarms
  • Ethernet connectivity
  • Display up to 5 measurements
  • Multiple display platforms
  • Visual alarms
  • Ethernet connectivity
  • Display up to 5 measurements
  • Multiple display platforms
  • Visual alarms
  • Ethernet connectivity
  • Display up to 5 measurements
  • Multiple display platforms
  • Visual alarms
  • Ethernet connectivity
  • Customizable report template
  • Configurable date range
  • Scheduled pdf reports via email
  • Exports to Excel or pdf
  • Customizable report template
  • Configurable date range
  • Scheduled pdf reports via email
  • Exports to Excel or pdf
  • Customizable report template
  • Configurable date range
  • Scheduled pdf reports via email
  • Exports to Excel or pdf
  • Customizable report template
  • Configurable date range
  • Scheduled pdf reports via email
  • Exports to Excel or pdf

Powerful And Easy to Use measura® Software Suite

The easy-to-use measura® software suite includes a built-in library of over 100 different types of measurements and configurable camera and lighting components for different product needs. The software simplifies the inspection process from product set-up and real-time inspection to process monitoring and quality analytics.

Powerful And Easy to Use measura® Software Suite

The easy-to-use measura® software suite includes a built-in library of over 100 different types of measurements and configurable camera and lighting components for different product needs. The software simplifies the inspection process from product set-up and real-time inspection to process monitoring and quality analytics.

Powerful And Easy to Use measura® Software Suite

The easy-to-use measura® software suite includes a built-in library of over 100 different types of measurements and configurable camera and lighting components for different product needs. The software simplifies the inspection process from product set-up and real-time inspection to process monitoring and quality analytics.

Powerful And Easy to Use measura® Software Suite

The easy-to-use measura® software suite includes a built-in library of over 100 different types of measurements and configurable camera and lighting components for different product needs. The software simplifies the inspection process from product set-up and real-time inspection to process monitoring and quality analytics.

measura® Toolbox
  • Define your products
  • Configure your measurements
  • Set limits
  • Interactive blob set-up
  • Playback recordings
measura® Toolbox
  • Define your products
  • Configure your measurements
  • Set limits
  • Interactive blob set-up
  • Playback recordings
measura® Toolbox
  • Define your products
  • Configure your measurements
  • Set limits
  • Interactive blob set-up
  • Playback recordings
measura® Toolbox
  • Define your products
  • Configure your measurements
  • Set limits
  • Interactive blob set-up
  • Playback recordings
measura® Inspection
  • Fast, up to 100 objects/ second
  • Intuitive operator screens
  • Display trends, lane data, and defect summaries
  • Record data
measura® Inspection
  • Fast, up to 100 objects/ second
  • Intuitive operator screens
  • Display trends, lane data, and defect summaries
  • Record data
measura® Inspection
  • Fast, up to 100 objects/ second
  • Intuitive operator screens
  • Display trends, lane data, and defect summaries
  • Record data
measura® Inspection
  • Fast, up to 100 objects/ second
  • Intuitive operator screens
  • Display trends, lane data, and defect summaries
  • Record data
KPM Community Login

Request A Demo

Get in Touch

Installation Options

No items found.
KPM Analytics Hot Copper Ore

Request A Demo

Learn More

Accessories

TheiaVu® WD-300 Benchtop Vision

Available Accessories

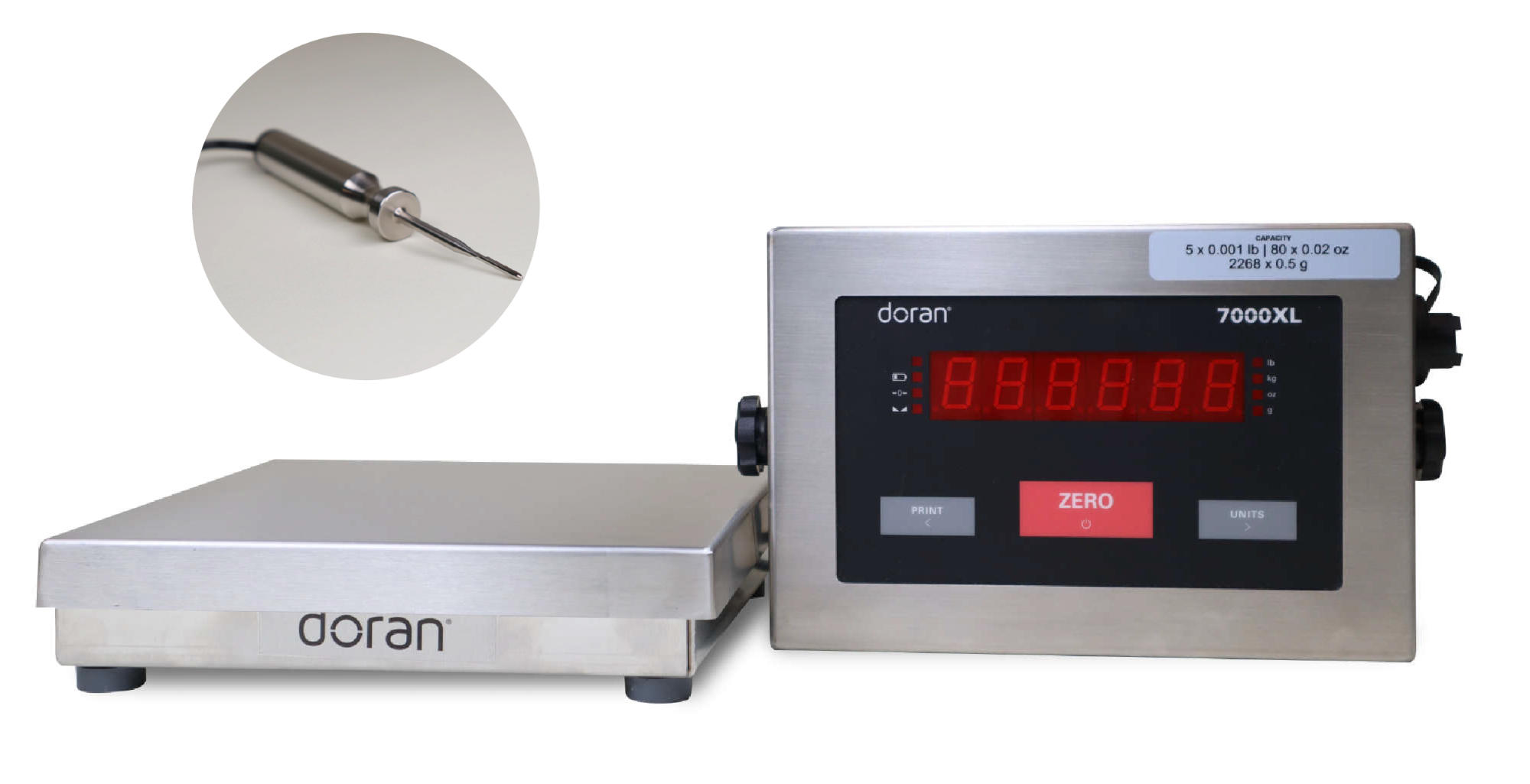

  • Integrated weigh scale for WD-300
