Product Overview

Automatic Continuous Flow Wet Chemistry Analyzer

The FUTURA 3 Continuous Flow Analyzer provides a complete and reliable solution for testing different parameters in sea water, drinking water, wastewater, environmental samples, soil, food, beverages, tobacco, and many other matrices. The testing is done automatically, including inline sample preparation. FUTURA 3 streamlines your laboratory operations by automating complex and time-consuming manual sample preparation methods, such as:

Method Parameter(s)
Inline Distillation Ammonia, phenolics, cyanides, Volatile acidity, Free and Total SO2 (Wine)
Inline Digestion For TP determination via persulfate and inline autoclave
Inline Extraction For MBAS Surfactants determination

FUTURA 3 also includes a range of autosamplers to match your laboratory’s current and future needs, as well as automated shut down capability, allowing it to provide unattended, reliable operation, and overnight testing. Its flexible configuration allows simultaneous operation of up to 16 independent channels from a single workstation.

AMS Alliance Futura 3 Continuous Flow Analyzer
AMS Alliance Futura 3 Continuous Flow Analyzer
AMS Alliance Futura 3 Continuous Flow Analyzer
AMS Alliance Futura 3 Continuous Flow Analyzer
No items found.

Features

  • Full Automation: programmable start-up and shut-down, preparation of standard solutions, pre- and post-dilution of off-scale samples, and automatic rinsing
  • High Modularity: integrated or combined instruments up to 16 channels, multiple flow cells, micro or macro flow
  • High Performance: high throughput, up to 120 samples/hour with auto-sampler, full automation of routine and complex chemistries
  • Advanced Software: user-friendly analytical software, EPA / ISO methods available for different matrices
  • Compliant with reference methods: ISO, EPA, AFNOR, APAHA, OIV, CORESTA

Benefits

  • Modularity and high throughput improve laboratory productivity
  • Sophisticated design and software dedicated to CFA technology guarantees the lowest level of detection and is comparable to reference methods
  • Simplicity and advanced automation reduce operator intervention time
FUTURA Continuous Flow Analyzer

Get in Touch with Us!

Learn More

Applications

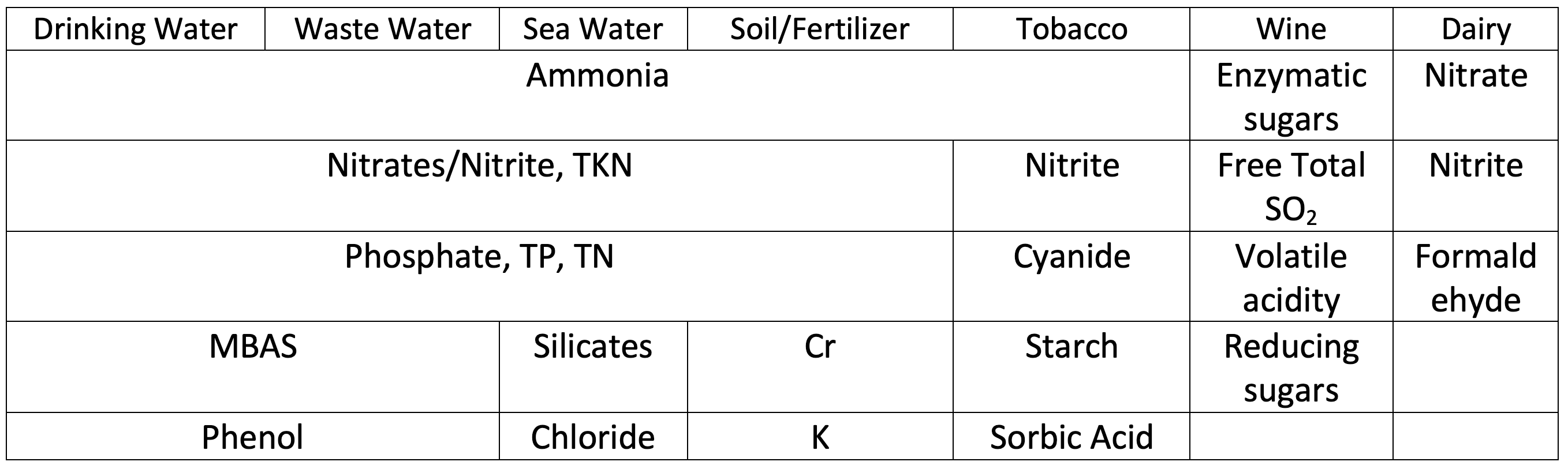

Laboratories use FUTURA 3 to perform tests on important parameters in water and soils (drinking, waste, surface, sea and ground water), tobacco, and beverages such as:

Soil and Plants
Drinking Water
Dairy Products
Waste Water
Juice Beverages
Wine, Beer & Spirits
No items found.
Start the Conversation - Get in Touch
Alt Text Title
FUTURA Continuous Flow Analyzer

Measure Quality Where it Matters

Learn More

Product Lineup

No items found.
KPM Analytics Distribution

Get in Touch with Us!

Learn More

How It Works

The FUTURA 3 console is capable of running a variety of analytical methods using different Continuous Flow Analysis techniques. From simple colorimetric assays to complex in-line distillations and digestions, users can pick from a library of both micro-bore and macro-bore CFA methods.

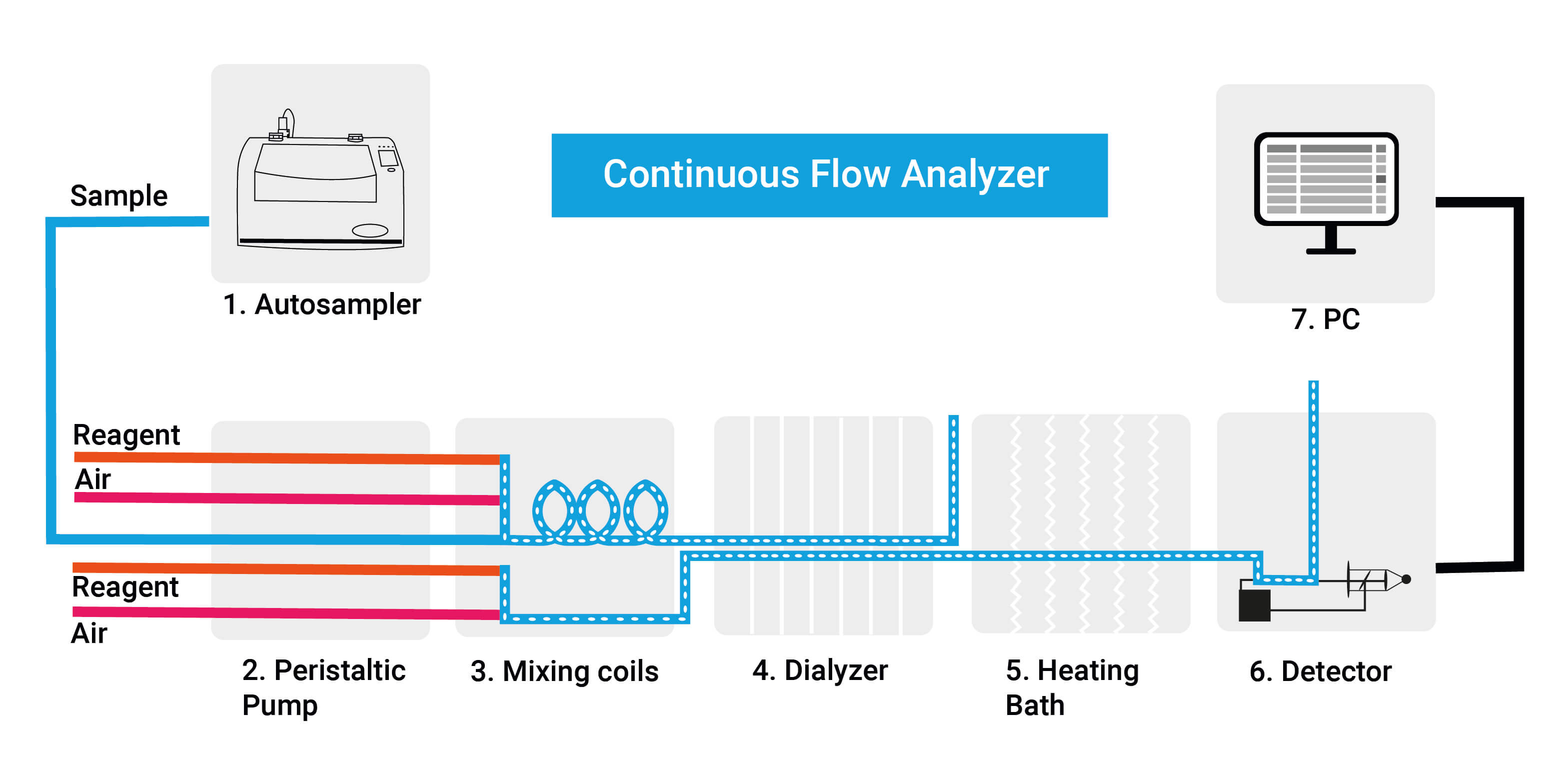

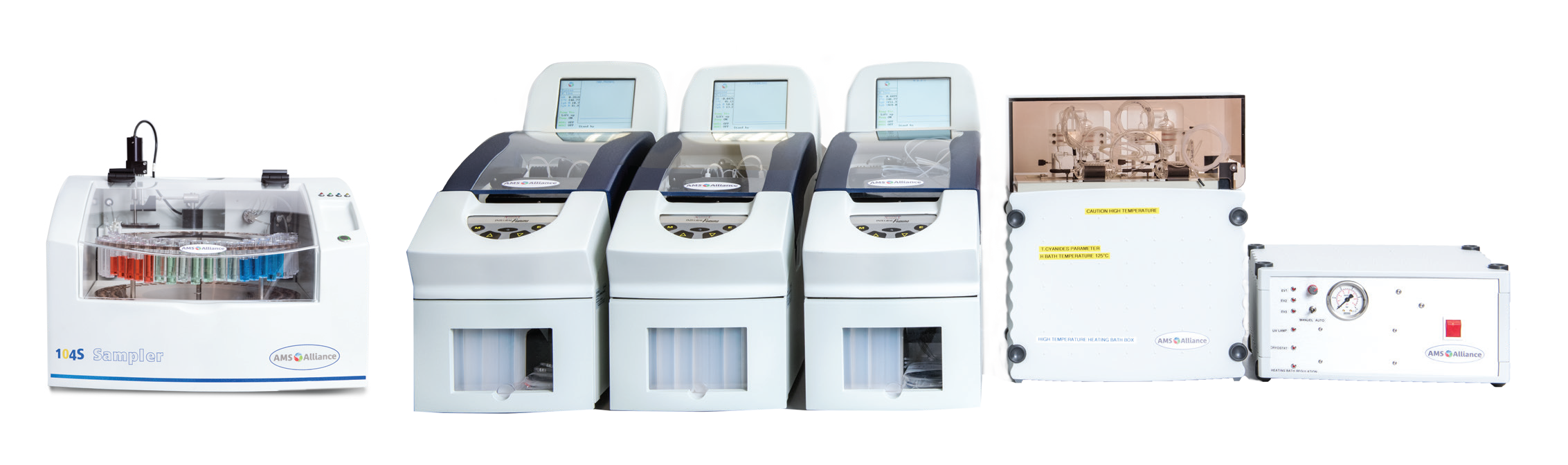

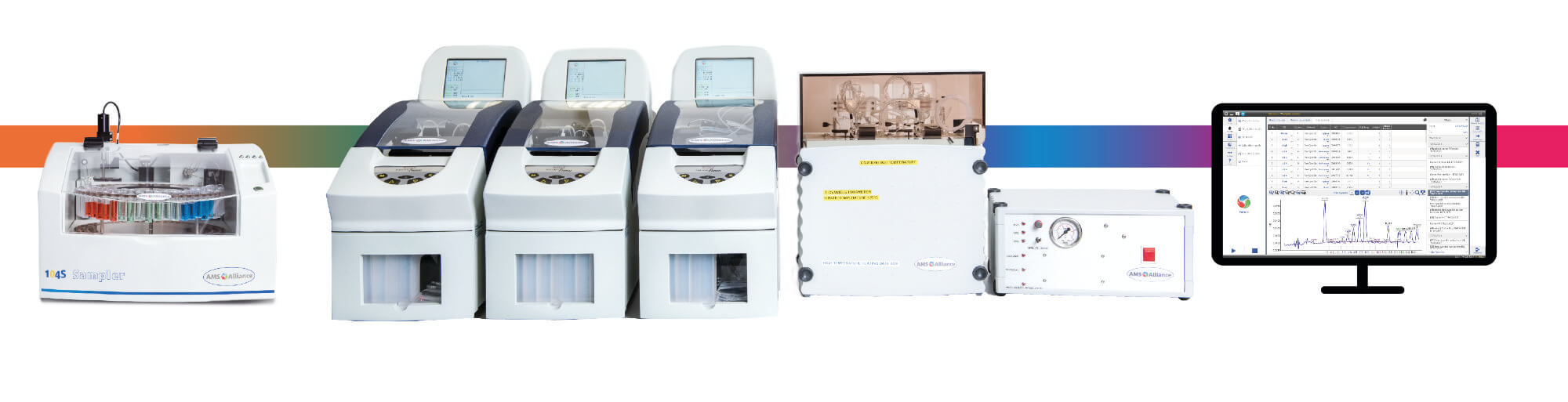

To perform a Continuous Flow Analysis, the FUTURA 3 console must be combined with an autosampler that will receive all the samples, and, if required, a series of sample preparation systems based on the chosen method. All external modules can be controlled by the FUTURA software using the Auto Module (optional).

Sample preparation and operation are fully automated, including those for the most complex chemistries; dialysis, distillation, UV digestion, injection, dilution, mixing, incubation and liquid/liquid extraction - all Inline, all 100% automated. Plus, the fully automated process includes programmable start-up and shut-down, preparation of standard solutions, pre- and post-dilution of off-scale samples, and automatic rinsing.

KPM Analytics Wheat Field

Request A Demo

Get in Touch

System Components

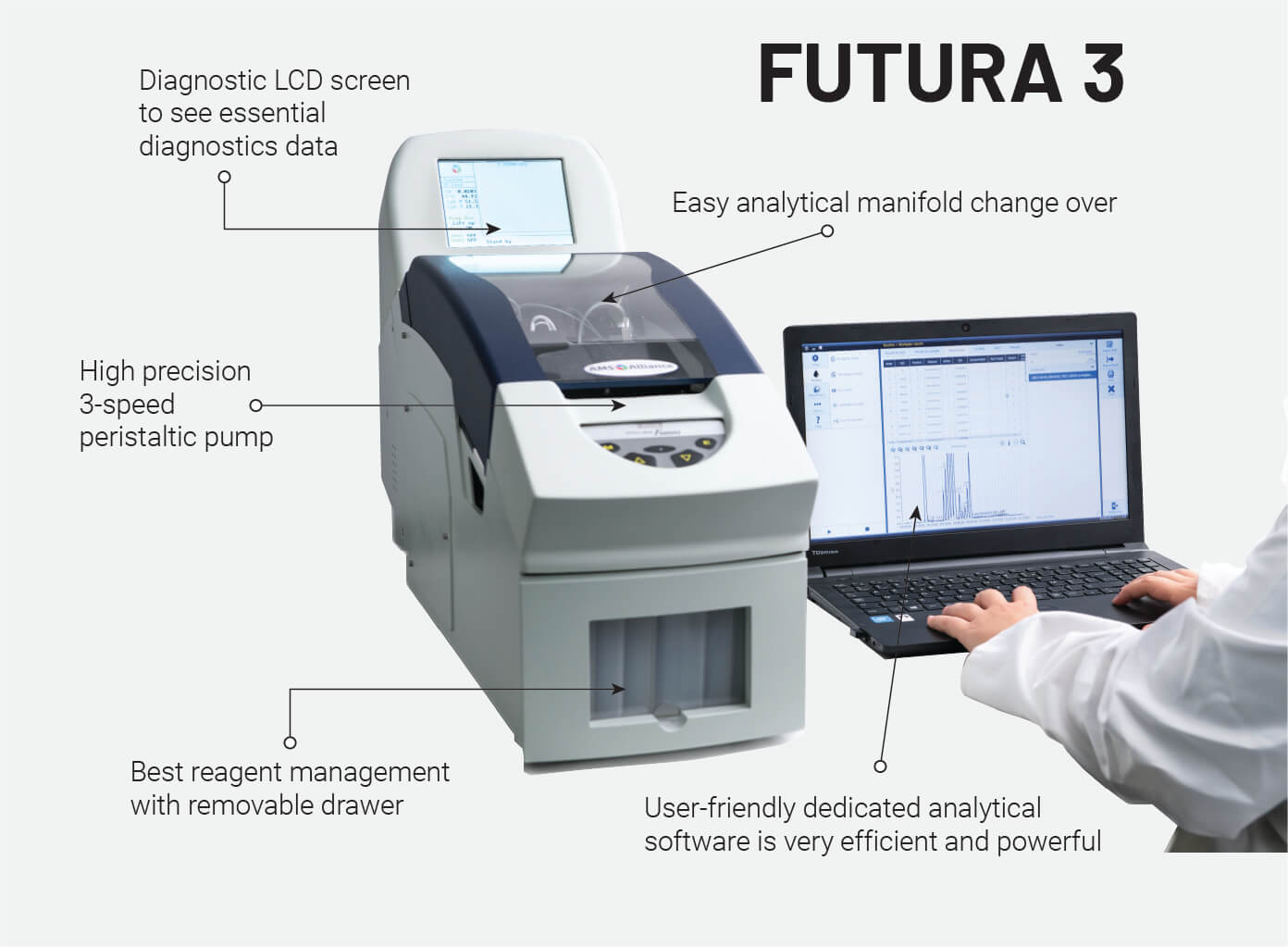

Each FUTURA 3 console integrates a high precision 3-speed peristaltic pump (medium, fast (startup and washout more speed) and slow (for low consumption of reagents)), a removable drawer for reagents, an analytical manifold, a heater, a detector, and a built-in display for the presentation of essential diagnostics data.

No items found.
KPM Analytics Global

Get in Touch with Us!

Learn More

Integrated Modularity Meets Multi-Channel CFA Productivity

Taking advantage of a unique, modular design, each Futura console is capable of running a variety of analytical methods using different CFA techniques. From simple colorimetric assays to complex in-line distillations and digestions, users can pick from a library of both micro-bore and macro bore CFA methods. Up to 16 consoles may be linked to run multiple parameters in parallel, doubling, tripling or even quadrupling overall system throughput.

The integration of a pump, manifold, and detector into each console simplifies manifold changeover. Advanced features, like automatic manifold washout and shut down enable ‘lights-out’ operation, making the Futura a highly versatile tool for today’s laboratory.

Highlights

  • From 1 to 14 analytical channels
  • New large color screen
  • New three-speed high precision peristaltic pump
  • Automatically engage and release the pump tube platen
  • Choose between micro flow, macro flow or combine them both
  • Multiple path length flow cells (10 mm to 1 m) for a wide variety of analytical ranges
  • Choice between Air injector or Air pinch valve
  • Full auto module in option for automatic handling of accessories and external modules
  • New YYZ auto-sampler up to 720 positions
  • Programmed reagent injection and automatic cleaning

New Analytical Software:

  • More ergonomic
  • More practical
  • More simple
  • More reliable
  • More fast
  • More complete
  • More OS and LIMS compatible

Whether your needs are environmental, industrial, food, or wine applications, the Futura can provide an automated solution.

Futura 3

Futura 3 is a must have for measuring phenols, cyanides, detergents, total phosphorus, total nitrogen and many other parameters. The main characteristics of the Futura 3 could be summarized by four points: capacity, automation, modularity, and control.

Capacity

Coupled with an auto-sampler XYZ (up to 720 positions), its sample throughput can reach 120 samples/hour.

Automation

Sample preparation and operating are fully automated, including for the most complex chemistries; dialysis, distillation, UV digestion, injection, dilution, mixing, incubation and liquid/liquid extraction...all Inline, all 100% automated. Plus, the fully automated process includes programmable start-up and shut-down, preparation of standard solutions, pre- and post-dilution of off-scale samples, and automatic rinsing

Modularity

Its modularity is exemplary; you can use up to 16 consoles in parallel in order to multiply simultaneous analyses. Switching from one parameter to another is easy with the analytical manifold quick change.

Control

The new high precision peristaltic pump offers three speeds: regular, rapid (quicker startup and washout), and slow (for a low consumption of reagents).

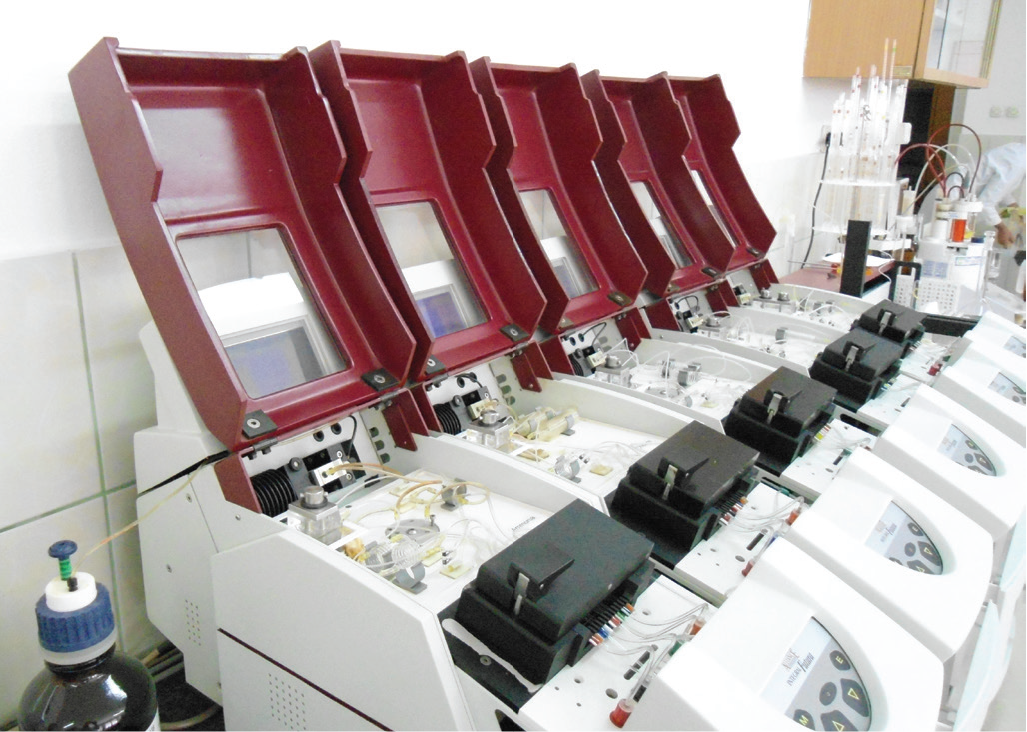

Futura 2

The Futura 2 is a fully automated instrument

  • From 1 to 14 Futura consoles per system
  • Integrated console: reagent drawer, pump, manifold, heater, detector and diagnostics
  • Easy analytical manifold changeover
  • Choice between Micro Flow, Macro Flow, or combine them both
  • Optional dual probe on all types of auto-samplers
  • Physical and software debubbling techniques available
  • Multiple path length flow cells (10 to 50mm) for a wide variety of analytical ranges
  • Wide range of detector options
  • New Full Auto module for automatic handling of external modules and accessories
  • Dedicated analytical software, compatible with all LIMS
  • Ready-to-use reagents
KPM Analytics Snack Foods

Get in Touch with Us!

Learn More

Software

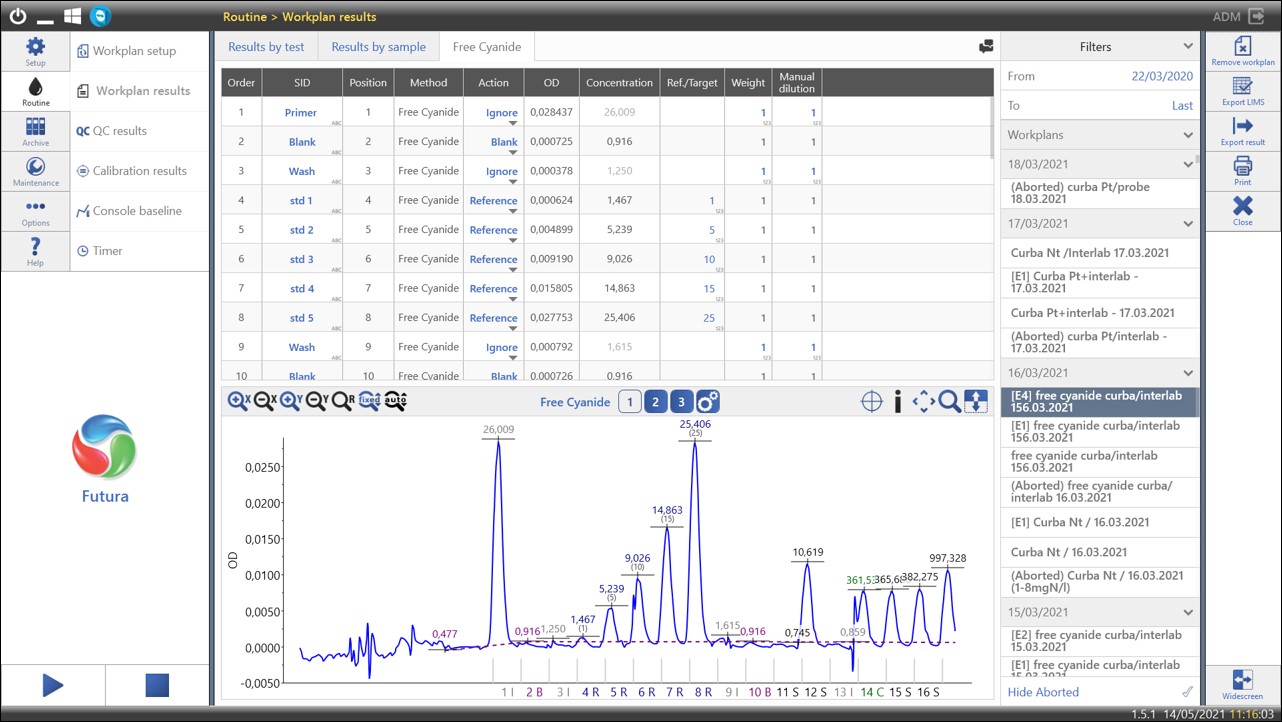

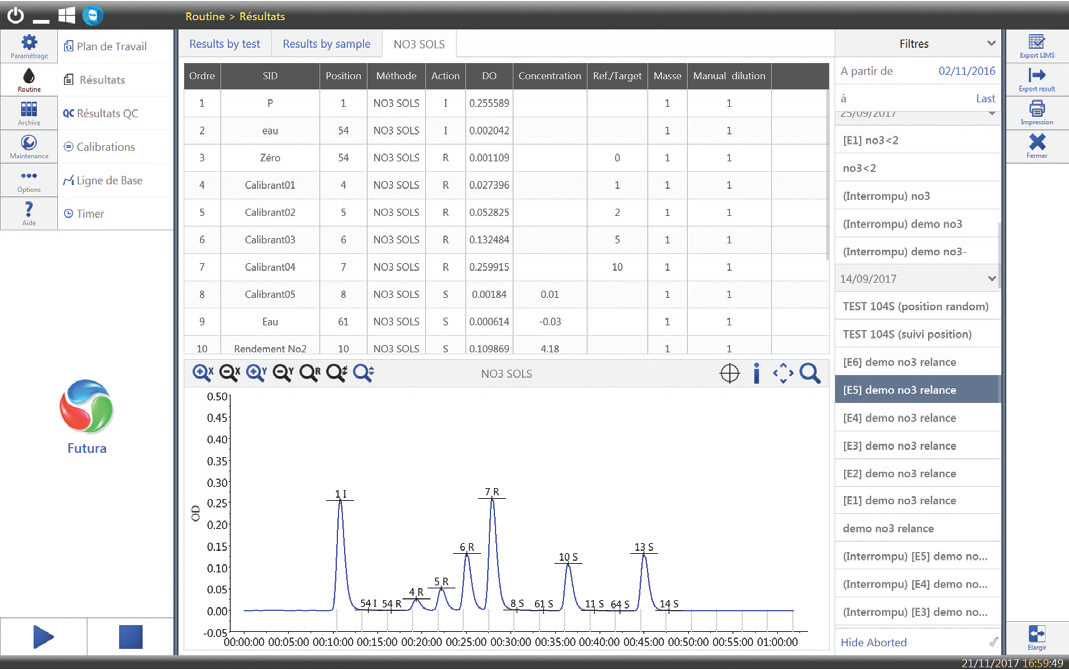

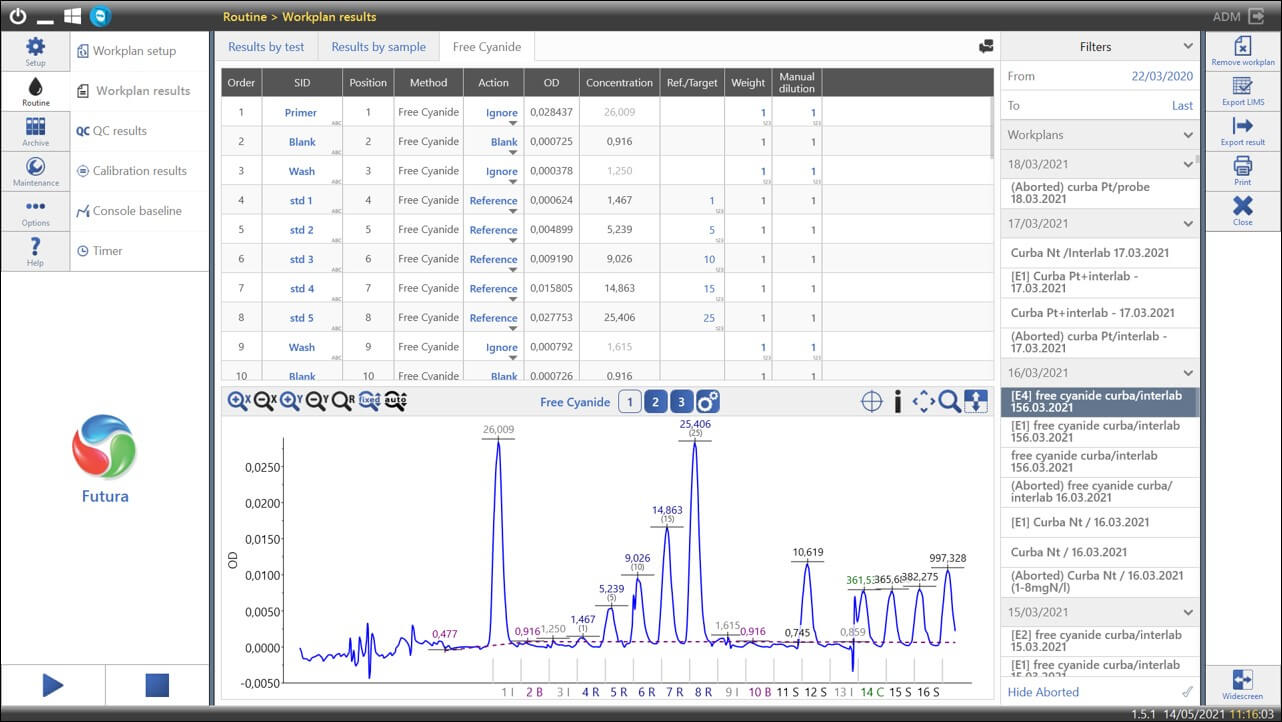

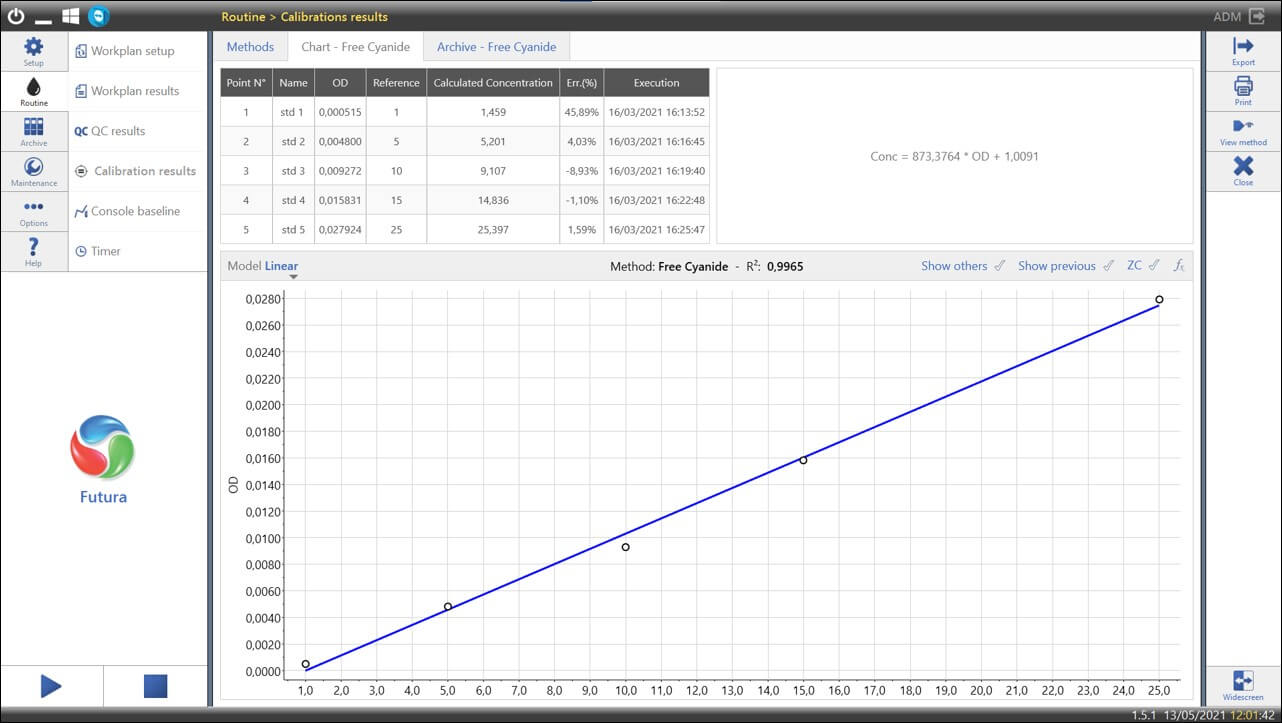

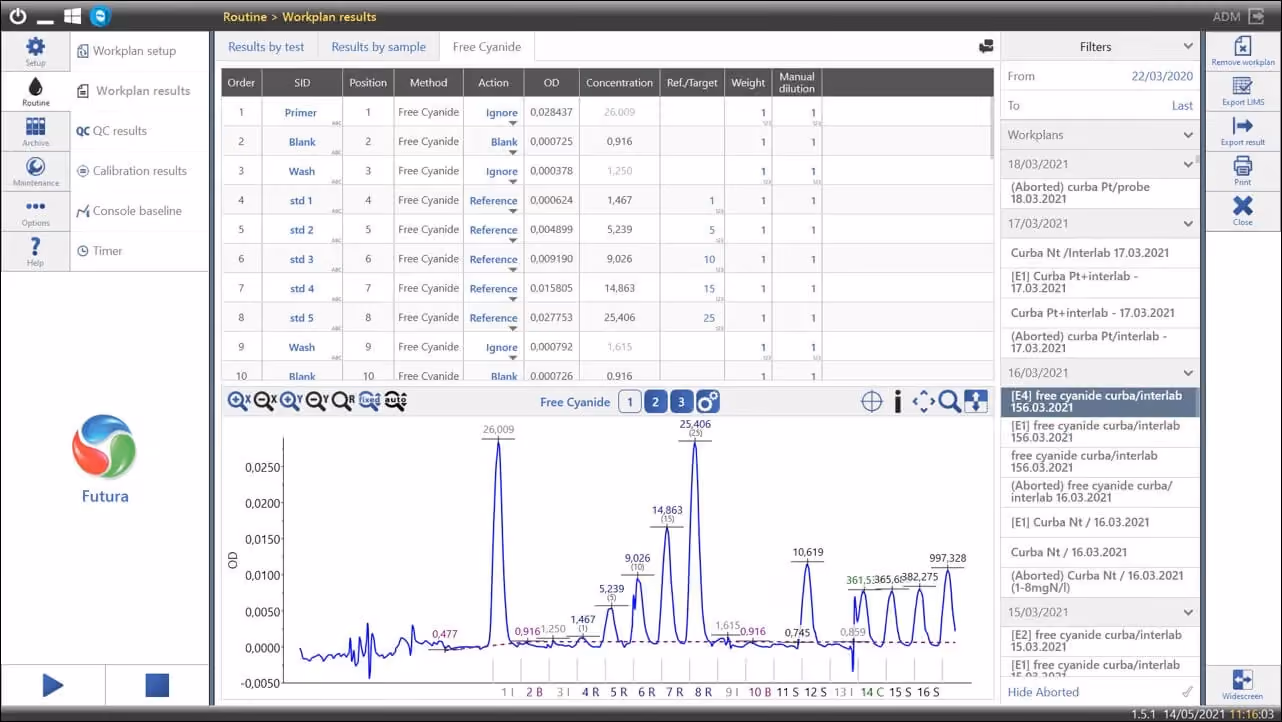

The FUTURA 3 analytical software is dedicated to the CFA technology: it prepares calibration standards, runs samples and quality controls, dilutes any off-scale samples, prints reports and QC charts, exports data to LIMS, washes out the manifold and shuts down.

User-friendly, efficient and powerful, the software has been designed to simplify your day-to-day operation. It runs the analysis of all parameters on each channel (up to 16 channels), and drives auto-samplers and accessories for automatic sample preparation.

During analysis, the software monitors the system’s vital signs (heating bath temperature, voltages, detector outputs) and alerts the user to any problem.

The FUTURA 3 analytical software is dedicated to the CFA technology: it prepares calibration standards, runs samples and quality controls, dilutes any off-scale samples, prints reports and QC charts, exports data to LIMS, washes out the manifold and shuts down.

User-friendly, efficient and powerful, the software has been designed to simplify your day-to-day operation. It runs the analysis of all parameters on each channel (up to 16 channels), and drives auto-samplers and accessories for automatic sample preparation.

During analysis, the software monitors the system’s vital signs (heating bath temperature, voltages, detector outputs) and alerts the user to any problem.

The FUTURA 3 analytical software is dedicated to the CFA technology: it prepares calibration standards, runs samples and quality controls, dilutes any off-scale samples, prints reports and QC charts, exports data to LIMS, washes out the manifold and shuts down.

User-friendly, efficient and powerful, the software has been designed to simplify your day-to-day operation. It runs the analysis of all parameters on each channel (up to 16 channels), and drives auto-samplers and accessories for automatic sample preparation.

During analysis, the software monitors the system’s vital signs (heating bath temperature, voltages, detector outputs) and alerts the user to any problem.

The FUTURA 3 analytical software is dedicated to the CFA technology: it prepares calibration standards, runs samples and quality controls, dilutes any off-scale samples, prints reports and QC charts, exports data to LIMS, washes out the manifold and shuts down.

User-friendly, efficient and powerful, the software has been designed to simplify your day-to-day operation. It runs the analysis of all parameters on each channel (up to 16 channels), and drives auto-samplers and accessories for automatic sample preparation.

During analysis, the software monitors the system’s vital signs (heating bath temperature, voltages, detector outputs) and alerts the user to any problem.

Compliant with reference methods: ISO, EPA, AFNOR, APHA, OIV, CORESTA

Compliant with reference methods: ISO, EPA, AFNOR, APHA, OIV, CORESTA

Compliant with reference methods: ISO, EPA, AFNOR, APHA, OIV, CORESTA

Compliant with reference methods: ISO, EPA, AFNOR, APHA, OIV, CORESTA

Alt Text Title
Community Login

Request A Demo

Get in Touch

Installation Options

No items found.
Alt Text Title
KPM Analytics Hot Copper Ore

Request A Demo

Learn More

Accessories

FUTURA Continuous Flow Analyzer

Available Accessories

No items found.
KPM Analytics Global

Get in Touch with Us!

Learn More

Specifications

FUTURA 3

OPERATION (multi parametric batches in parallel)
OPERATION Multi parametric batches in parallel
SAMPLES Analytical Rate: From 15 to 120 tests per hour
Special Analytical Rates: Please Inquire Specifically
Samples Loading Capacity: 104 to 720 (autosampler model dependent)
Dual Probe: Optional
Sample Volumes: From 0.5 ml to 100 ml
Identification: Alphanumerical/Bar Code (optional)
REAGENT DRAWER Removable Drawer with Control Window
Loading Capacity: Up to 5 Different Reagents
Containers: From 200 ml to 1000 ml
Leak Retention Volume: Made of Chemically Inert Plastic Material
PUMP Number of Pump Tubes: 13 per Console
Automatic Valve: Yes
Auxiliary Valve: Optional
Leak Detector: Optional
Automatic Shut Down: Yes
Automatic Start Up: Yes
Variable Speed: Yes
Flow Rates: From 50 to 3,000 µl/minute

MEASUREMENT
ANALYTICAL MANIFOLD Injection, Dilution, Mixing, Incubation, Distillation, Dialysis, UV Digestion, Liquid / Liquid Extraction
COLORIMETER Standard Range: 340 - 1100 nm
Type: Monochromatic or dichromatic
Analog/Digital Converter Resolution: 24 bits (16.8 Million Points)
Optical Path: From 5 to 50 mml
Flow Cell Volume: From 1 to 150 µl
Linearity: From 0 to 2.5 Absorbance Units
Debubbling: Mechanical or software control; built-in bubble detector
OTHER DETECTORS UV/Vis, Flame photometer, Fluorometer, electrodes, and more… Our Analytical Solutions Department develops specific methods based on requirements.

SIZE
DIMENSIONS 24 x 65 x 41 cm (L x W x H)
WEIGHT 17 Kg
