Product Overview

High Capacity, High Throughput Floor Model Automated Discrete Analyzer Platform

The AMS Alliance SmartChem® 600 Discrete Analyzer is a fully automated, wet chemistry direct read, platform for photometric and electrochemical analysis. It is designed for demanding laboratories seeking to enhance their performance and boasts up to 600 tests per hour and a capacity of up to 200 on board samples.

Its continuous loading capability makes it an ideal tool for laboratories that want to reduce their daily workload from their personnel and improve their productivity without compromising their quality and user satisfaction.

See how SmartChem® is being used in the scientific community:

National Center for Biotechnology Information: https://www.ncbi.nlm.nih.gov/pmc/?term=smartchem
Google Scholar: https://scholar.google.com/scholar?hl=en&as_sdt=0%2C5&q=smartchem+ams+alliance&btnG=

Features

  • Multi-parametric (consolidation) automated platform
  • Photometric and Electrochemistry analysis
  • Automated integrated reagents and samples barcode reader (optional)
  • Automated start-up to instrument readiness
  • Low water consumption
  • IF THEN driven test sequences
  • Programmable and monitored cuvette wash module
  • Reagent inventory system and liquid level sensing
  • pH/Cond/ORP and Nitrate add-on modules available
  • Available ready-to-use reagents for diverse methods

Benefits

  • Increased efficiency and productivity through instrument consolidation and testing automation. Free-up your staff from tedious and repetitive tasks.
  • Microlitre reactions - Reduced reagent usage and waste generation – improved cost efficiency and environmental footprint.
  • Guaranteed stability, reproducibility and traceability with our ready-to-use dedicated reagents.
  • Improved automation level with our optional bar code readers for reagents and samples – allowing full LIMS integration.
  • Automated out-of-range retesting decision making.
  • Cost end environmental efficiency via our Cuvette Monitored Wash Cycle.
  • Optimization of time-consuming techniques such as pH, Cond, ORP.
Chemical & Clinical

Applications

The SmartChem® 600 is widely used for the automation of manually run wet chemistry testing in environmental, industrial, and research laboratories, including regulatory and quality control testing.

Its applications include, but are not limited to:

  • Water and environmental
  • Soil extracts, plant extracts, and fertilizers
  • Food and feed
  • Beverages, wine and beer
  • Chemical

See our list of test parameters by sub-segment here. (not limited)

No items found.
No items found.
No items found.
No items found.
Chemical & Clinical

Product Lineup

SmartChem® 600
  • Up to 600 tests/hour (including 120 for EC test (pH, conductivity, redox))
  • Floor-stand analyzer
  • Sample loading:
  • Up to 200 samples on board
  • ~2 independent carousels hosting 20 racks of 10 positions each, for continuous sample loading
  • ~On-board reagents: up to 100 reagents
No items found.
Chemical & Clinical

How it Works

The SmartChem® 600 uses direct read photometry, utilizing a true discrete, direct read measurement system and reusable, high-purity optical cuvettes, eliminating compromised sample measurement.

SmartChem® simplifies your laboratory's work in a short series of steps:

  1. Load samples and reagents in your SmartChem®
  2. Set up your test
  3. Load your work program in the SmartChem® software
  4. Launch your programmed routine
  5. Get the results

Additionally, SmartChem® cuvettes are being washed after each use, making them available for the next reaction/measurement and reducing your dependence on consumables and their availability.

Chemical & Clinical

System Components

With capacity to load up to 100 reagent bottles, SmartChem® 600 is a truly versatile analyzer to automate your laboratory's routine and free your personnel to address other important tasks.

Available Configurations

The SmartChem® system is modular, allowing you to configure your analyze.

Analytical Module Only one option can be selected NO3 Ph/Cond/ORP
Cuvette Material Only one option can be selected Technical Polymer Technical Polymer
Sample Position 200
Barcode Reader Integrated Samples Reagents
Chemical & Clinical

Reagents

Ready-to-Use Reagents

We offer a full range of enzymatic and colorimetric reagents dedicated to our SmartChem® range of discrete analyzers.

Developed, tested and validated by our application laboratory, they guarantee perfect stability and reproducibility of your analyses.

Very easy to use, they are liquid, supplied in specific bottles made for SmartChem®, and automatically detected by the barcode reader (optional). This ready-to-go solution simplifies the preparation of your analysis and facilitates the use and storage of reagents. It also secures your analyses with reagents adapted to your application and your instrument.

To order reagents, please send an email to orders@kpmanalytics.com.

Chemical & Clinical

Software

The SmartChem® 600 analyzer’s operation is completely computer based with the dedicated, intuitive and user-friendly software. This software is bidirectional LIMS and NELAC/EPA or NELAC-EPA compliant.

SmartChem® software simplifies routine work and allows complete control and operation of the analyzer to the operator controlling the on-board reagent stock, samples, controls and calibrators, plus the status of the cuvettes in the reaction chamber.

The SmartChem® 600 analyzer’s operation is completely computer based with the dedicated, intuitive and user-friendly software. This software is bidirectional LIMS and NELAC/EPA or NELAC-EPA compliant.

SmartChem® software simplifies routine work and allows complete control and operation of the analyzer to the operator controlling the on-board reagent stock, samples, controls and calibrators, plus the status of the cuvettes in the reaction chamber.

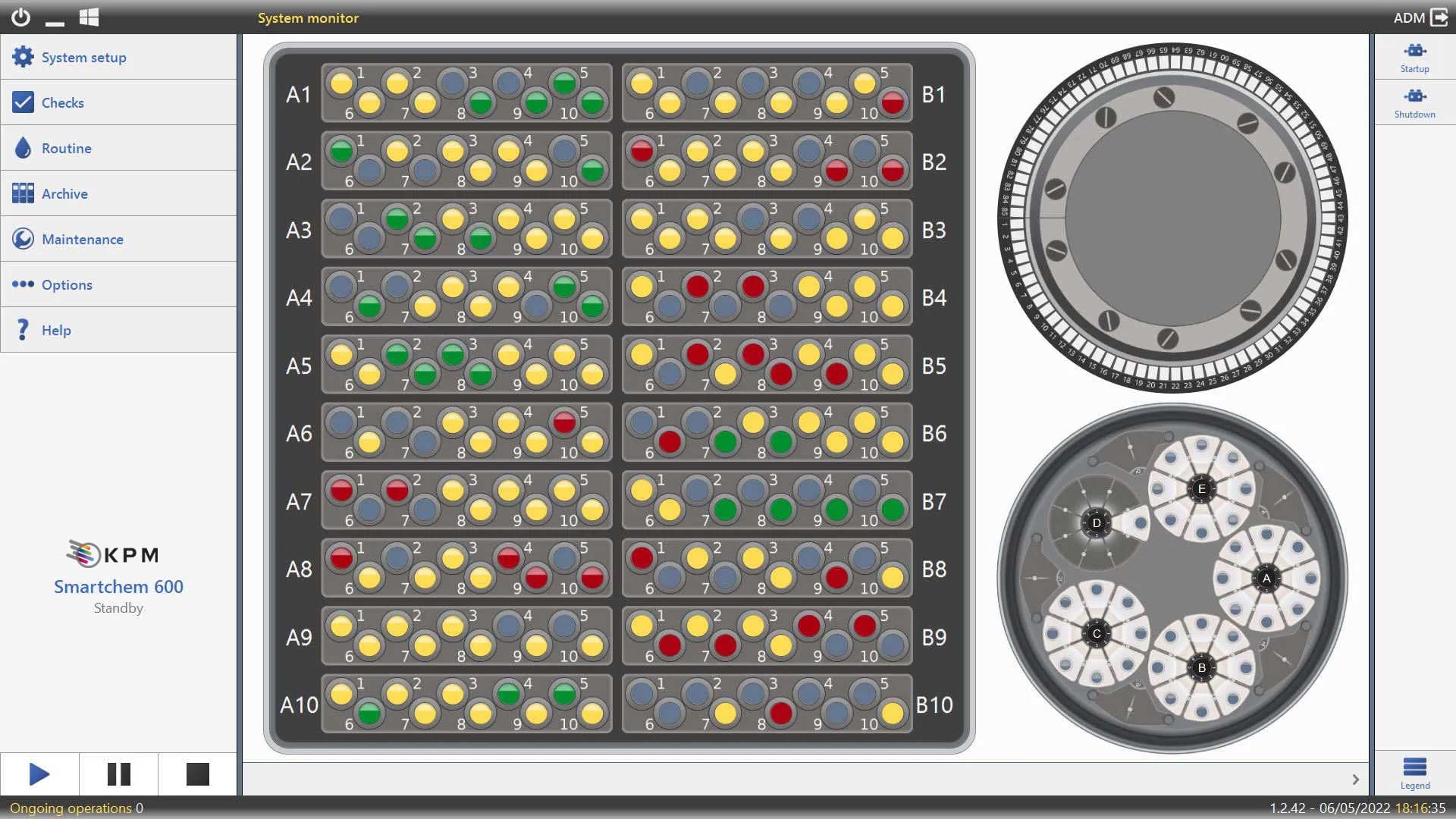

System Monitor

SmartChem® 600 software simplifies routine work and allows complete control and operation of the analyzer to the operator controlling the on-board reagent stock, samples, controls and calibrators, plus the status of the cuvettes in the reaction chamber.

System Monitor

SmartChem® 600 software simplifies routine work and allows complete control and operation of the analyzer to the operator controlling the on-board reagent stock, samples, controls and calibrators, plus the status of the cuvettes in the reaction chamber.

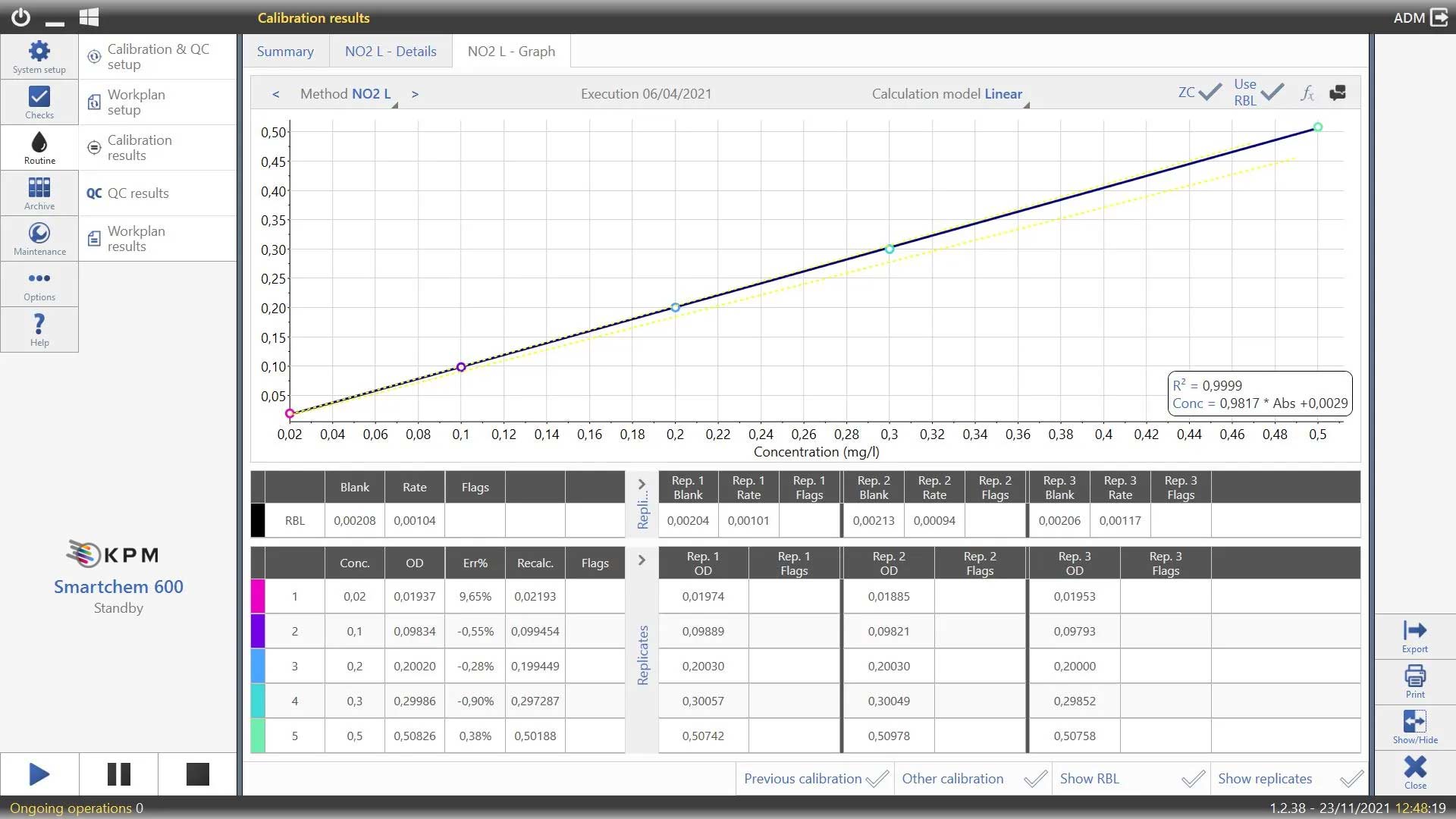

Calibration Curve

Operators can access calibration status, use curves and historic calibration data, as well as monitor the status of specific tests, reaction curves and other on-going testing data.

Calibration Curve

Operators can access calibration status, use curves and historic calibration data, as well as monitor the status of specific tests, reaction curves and other on-going testing data.

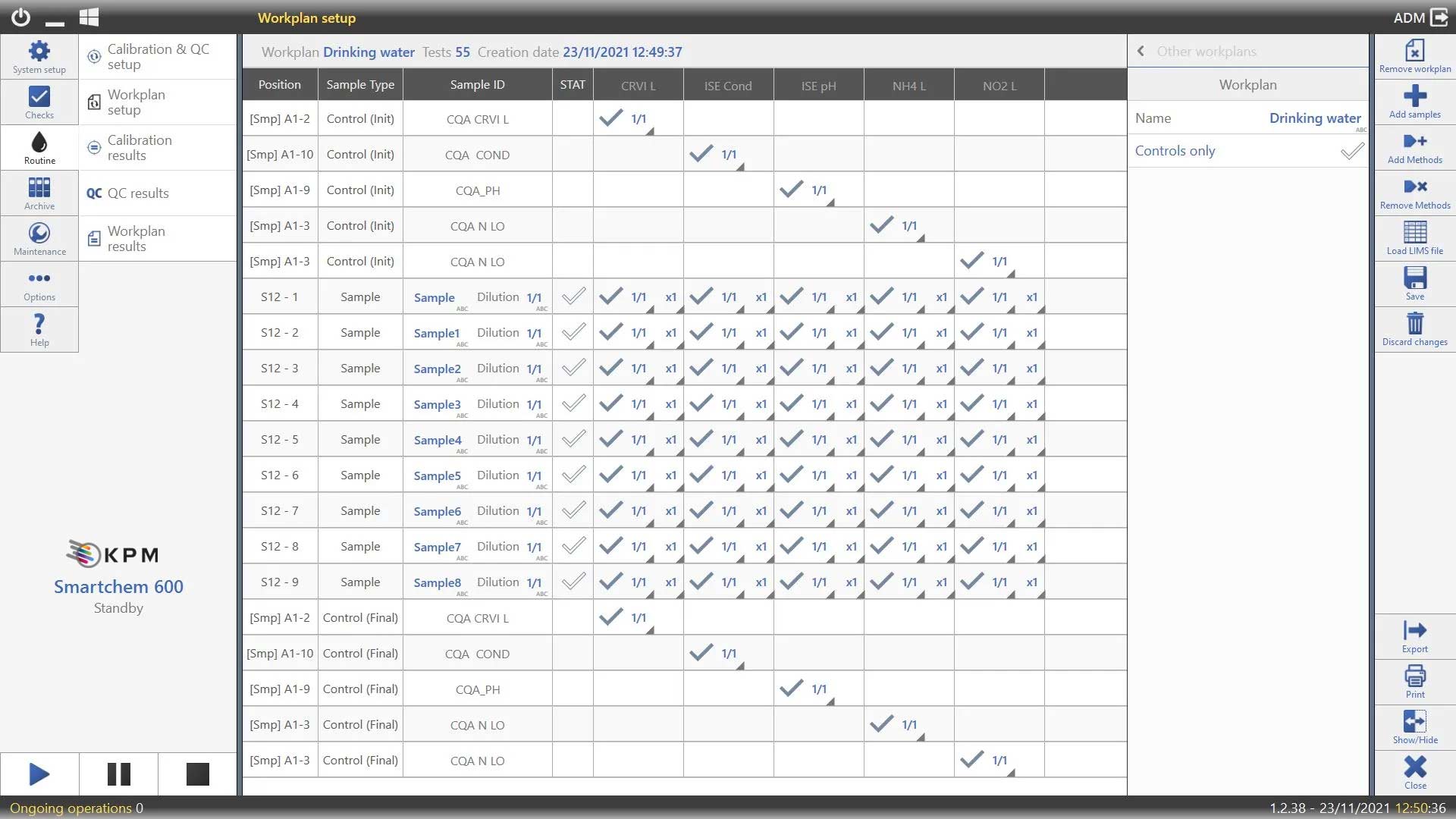

Workplan Setup

The operator can easily load reagents and samples using the optional SmartChem® barcode reader and design the work routine for the analyzer to run, defining tests to run per sample, calibrations, and QC controls, etc.

Reflex and re-tests IF-THEN instances can be programmed, allowing specific actions to be automated in case of out-of-range results and/or any instances defined by the testing routine being defined by the laboratory.

Workplan Setup

The operator can easily load reagents and samples using the optional SmartChem® barcode reader and design the work routine for the analyzer to run, defining tests to run per sample, calibrations, and QC controls, etc.

Reflex and re-tests IF-THEN instances can be programmed, allowing specific actions to be automated in case of out-of-range results and/or any instances defined by the testing routine being defined by the laboratory.

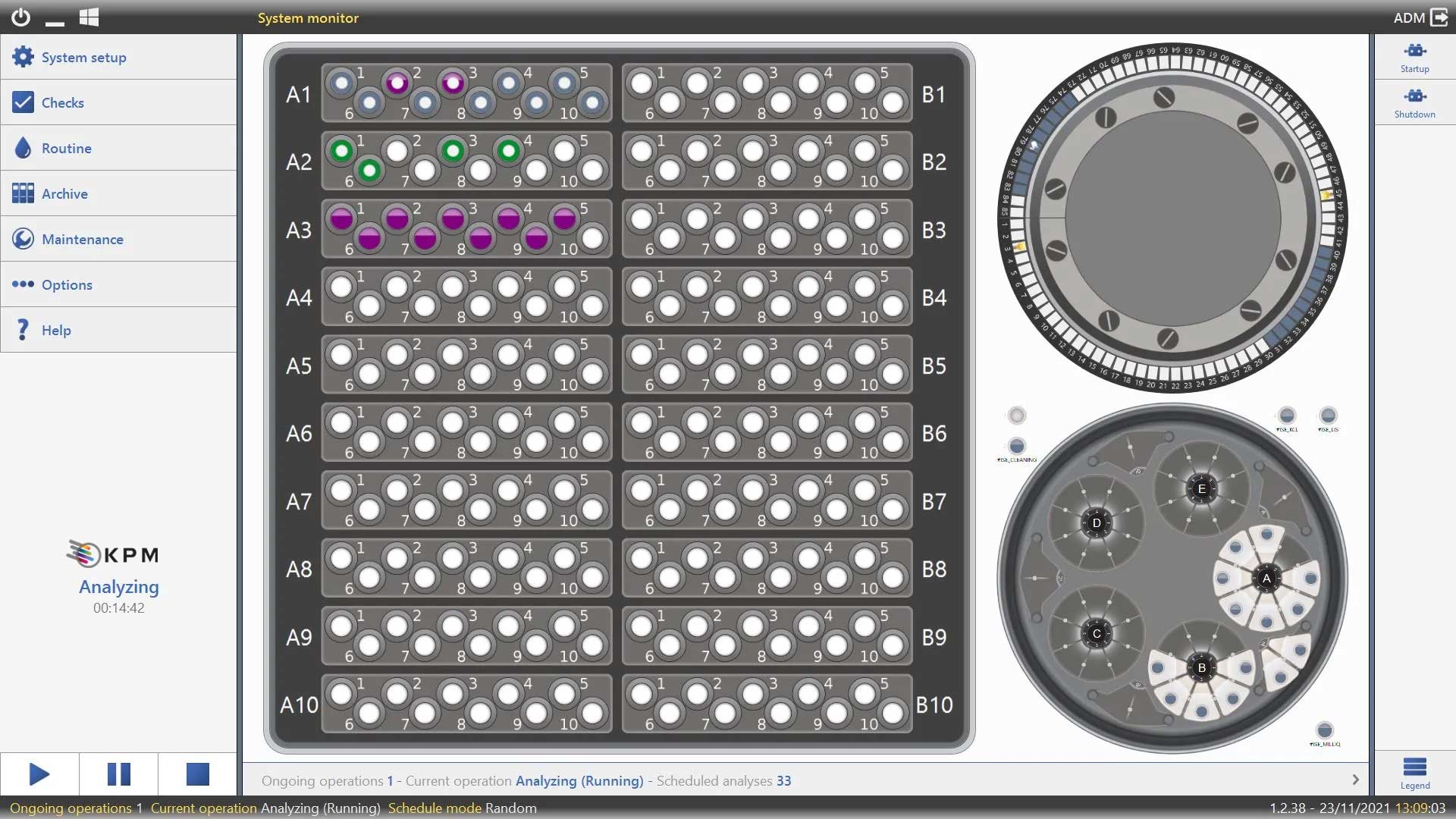

Ongoing Analysis

The operator can, at any moment, see the status of each sample, reagent content per bottle and other information during the programmed run, plus enter new reagents and samples while the unit is running an already launched program.

Ongoing Analysis

The operator can, at any moment, see the status of each sample, reagent content per bottle and other information during the programmed run, plus enter new reagents and samples while the unit is running an already launched program.

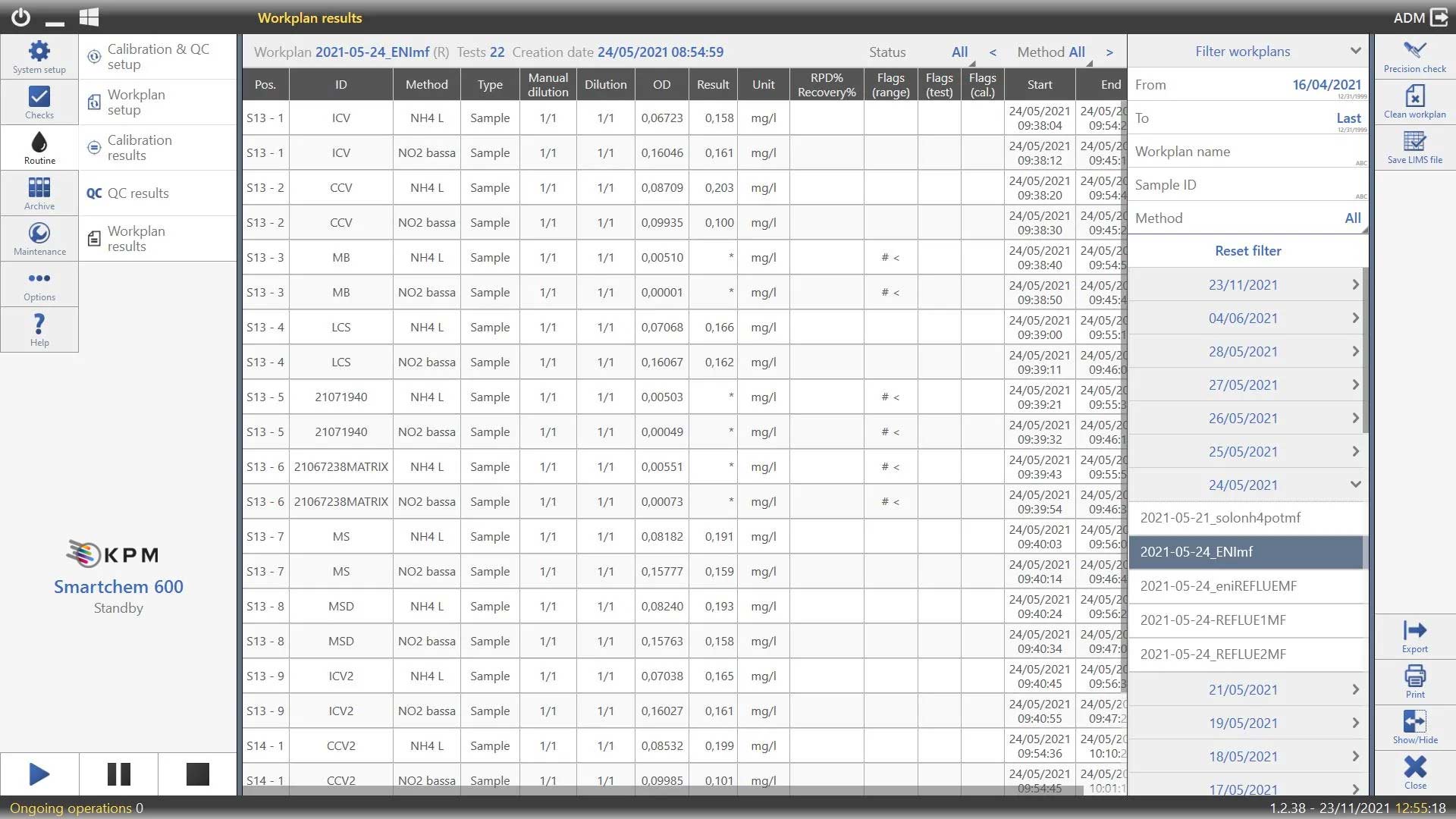

Workplan Results

During and at the end of the routine, the operator can access the tests reports and results.

Workplan Results

During and at the end of the routine, the operator can access the tests reports and results.

Levey-Jennings Graph

Quality controls can be evaluated via Levey-Jennings plots and results from the run can also be validated.

Levey-Jennings Graph

Quality controls can be evaluated via Levey-Jennings plots and results from the run can also be validated.

Additional Software Features
  • Automatic start-up: including calibrations and blanks
  • Automatic shutdown
  • Barcode for reagents: auto ID and loading with Ready to Use reagents
  • Barcode for samples: auto ID – automated work routine loading with LIMS
  • Addition of new sample or method to a sample during the run
  • Retest key
  • Accurate time to test completion information
  • Calibration points recalculation
  • Last accepted calibration overlay
  • Pre-dilution
  • Standard curves
  • Computer controlled micro pipettor
  • NELAC - EPA compliant
  • Real-time information on sample and reagent status
  • Dynamic monitoring of test run
Additional Software Features
  • Automatic start-up: including calibrations and blanks
  • Automatic shutdown
  • Barcode for reagents: auto ID and loading with Ready to Use reagents
  • Barcode for samples: auto ID – automated work routine loading with LIMS
  • Addition of new sample or method to a sample during the run
  • Retest key
  • Accurate time to test completion information
  • Calibration points recalculation
  • Last accepted calibration overlay
  • Pre-dilution
  • Standard curves
  • Computer controlled micro pipettor
  • NELAC - EPA compliant
  • Real-time information on sample and reagent status
  • Dynamic monitoring of test run
Chemical & Clinical

Specifications

Dimensions Height x Width x Length: 96 x 70 x 120 cm (37.8 x 27.6 x 47.2 in.)
Weight 115 kg (254 lbs)
Power 430 Watts
Assay Type End Point, Kinetic, Differential, Bi Chromatic Assays, Fully Programmable, pH, Conductivity, ORP
On-Board Reagents Up to 100 Reagents can be Loaded into the Refrigerated Compartment and Distributed on:
5 Removable Racks (8 Main Positions) + 5 Satellites
100/50/25/5 mL Containers
Reagents Barcode Reading (Integrated)
Sample Loading Up to 200 Samples on Board
2 Independent Carousels Hosting 20 Racks of 10 Positions Each, for Continuous Sample Loading
Cups and/or Tubes of 10-13 mm (0.4-0.5 in.); Maximum Height of 100 mm (3.9 in.)
Sample Tube Camps for Sensitive Applications
Sample Barcode Reading (Integrated)
Urgent Sample Analysis Allowed at Any Time
Throughput Up to 600 Tests/Hour (Including 120 for EC Tests)
Reading System Direct Photometry
Photometer: Diode Filter Array
Wavelength: 12 Wavelengths Available from 340 nm to 880 nm
Source: Halogen Lamp 6V/10W
Optical Path: 10 mm
Linear Range: 0.001 – 2.500 Abs
Resolution: 0.0001 Abs
Minimum Reaction Volume 180 μl
Sampling System 3 Sampling Arms (1 for Samples and 2 for Reagents)
3 Shock Sensors
3 Capacitive Liquid Level Sensors
2 Positions for Stirrer/Mixer
Automatic Probe Washing
Sample Rerun with or without Dilution
Limited Water Consumption (Less than 7 Liters/Hour)
Dilutor Automatic Dilution in Pre- and Post-Dilution
Reaction Plate Holds 85 Cuvettes that Perform the Following Operations:
Automatic Cuvette Washing
Incubation Temperature Control 37°C (98.6°F) +/- 0.3
Continuous Monitoring of Cuvette Quality
Separate Waste Lines to Minimize Hazard Disposal Management
Use of Washable Cuvettes (Green Technology)
Available Configurations Analytical Module: NO3, pH/Cond/ORP
Cuvette Material: Technical Polymer
Sample Position: 200
Barcode Reader: Integrated, Samples, Reagents
Complementary Products Ready-to-Use Reagents
