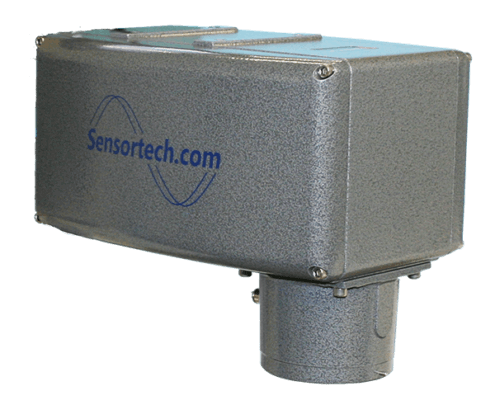

NIR-6000 Series On-Line Moisture Sensors

NIR-6000 Series On-Line Moisture Sensors
NIR-6000 Series On-Line Moisture Sensors

Product Overview

Industrial-Grade Continuous On-Line Moisture Monitoring Sensors

The Sensortech NIR-6000 Series are continuous on-line near infrared (NIR) analyzers that deliver reliable non-contact moisture measurements directly in process environments for monitoring and controlling almost any production line. This series is especially suited for high-throughput industrial applications including wood, building materials, pulp and paper, and several other products where moisture content directly impacts product quality.

The NIR-6000 Series industrial-grade analyzers are designed for direct integration into factory automation and are available in different sensitivities to analyze products with varying optical reflectance (due to color) and moisture content. Capturing measurements every four milliseconds, the NIR-6000 Series analyzers can automatically adjust your process to meet moisture measurement targets, reduce energy costs, and improve your bottom line.

No items found.

Features

  • Collect real-time moisture measurements in-process
  • Pre-programmed algorithms and calibrations, or custom-built to your specifications using NIR technology
  • Operates in temperatures from down to -4°F (-20°C) with heating option, and up to 185°F (85°C) with cooling option
  • Mounting options available to accommodate diverse process location

Benefits

  • High Accuracy: Measure moisture of many product applications to within +/- 0.1%
  • Ruggedized Design: The NIR-6000 series sensors are contained within a powder-coated cast aluminum IP65 housing and built for years of trouble-free operation
  • Simple Implementation: The NIR-6000 series can be pre-calibrated based on our database of calibrations
NIR-6000 Series On-Line Moisture Sensors

Get in Touch with Us!

Learn More

Applications

Continuous NIR Analysis for Industrial Manufacturers

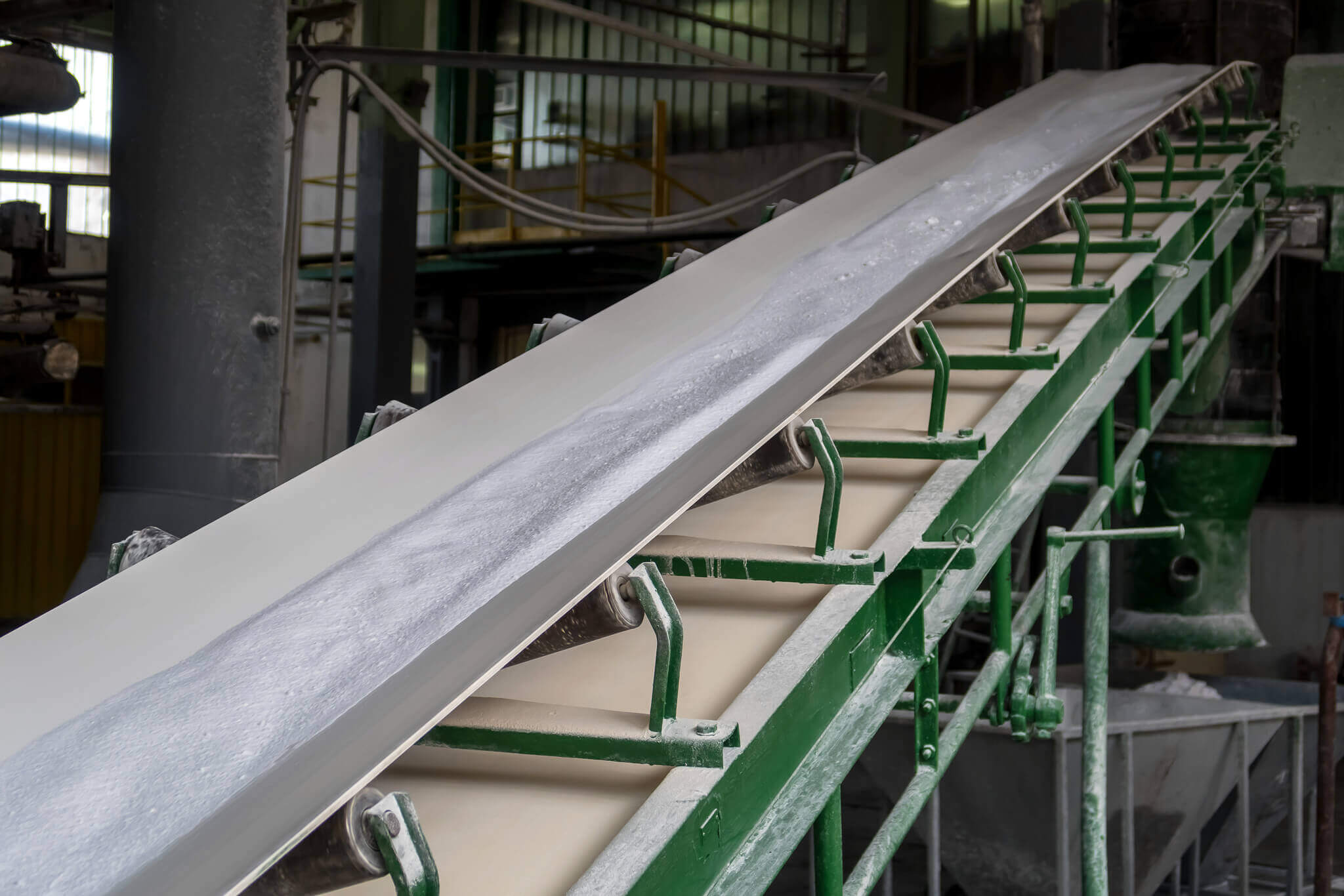

The NIR-6000 Series analyzers can be delivered pre-calibrated for a wide range of products that are conveyed on a belt, though an auger, or looking through a sight glass window in a bin or chute. Common applications for the NIR-6000 series analyzers include:

  • Lumber and Wood: Saw dust, hog fuel, veneer, plywood, biomass, wood pellets
  • Building Products: Cement, brick, lime, panel board products
  • Textile Mill Products: Broad-woven fabric, non-woven fabric
  • Paper Products: Pulp, paper, paperboard, containers and boxes, converted paper products
  • Chemicals: Plastic pellets, industrial organic chemical solids (powders)
  • Mining & Minerals: Iron ore, coal, copper ore, lead and zinc ore, bauxite, boric acid, ceramic powder, clay, crumb rubber, fertilizers, fly ash, foundry sand, industrial sand, silica sand, frac sand, soda ash

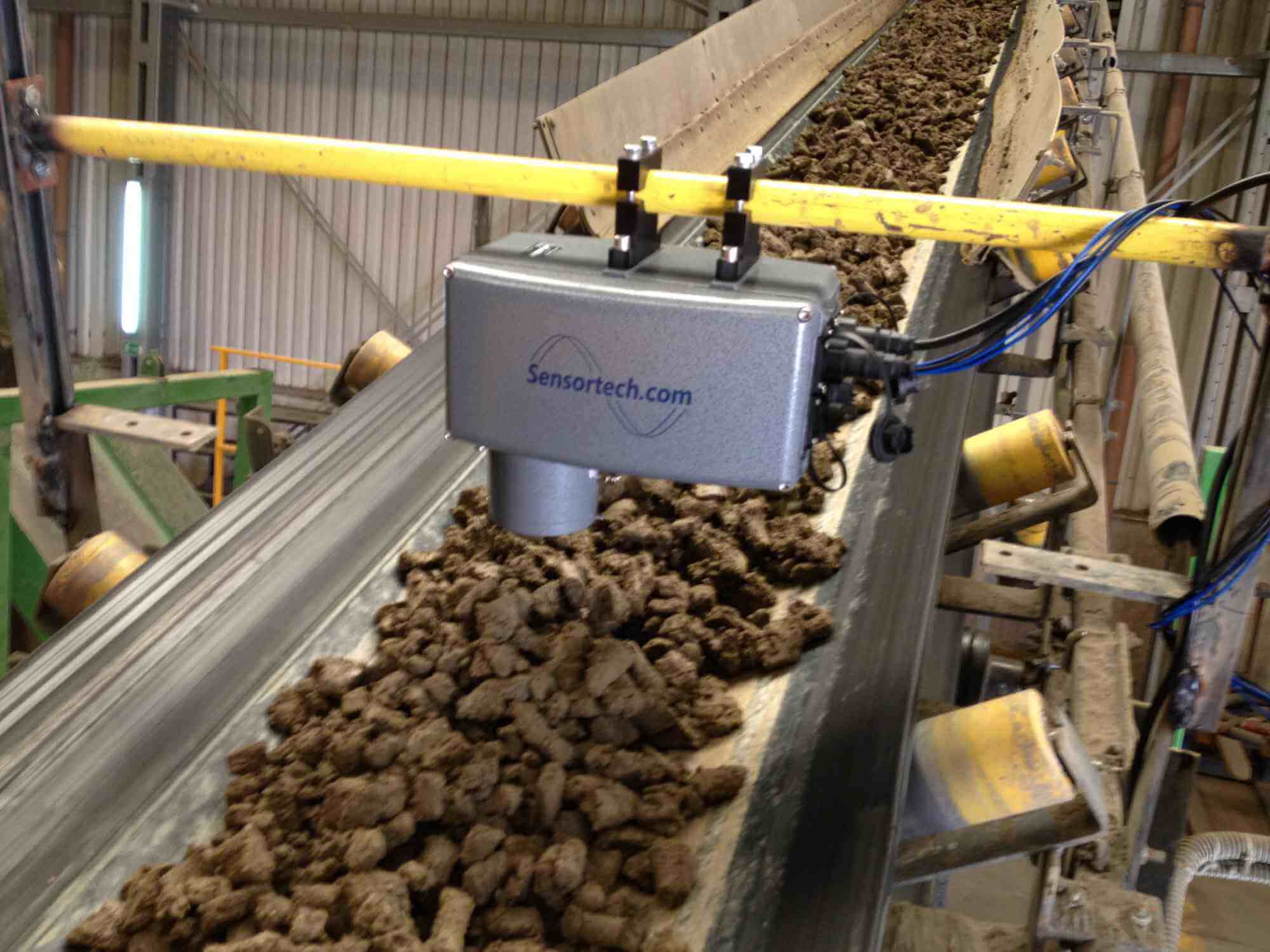

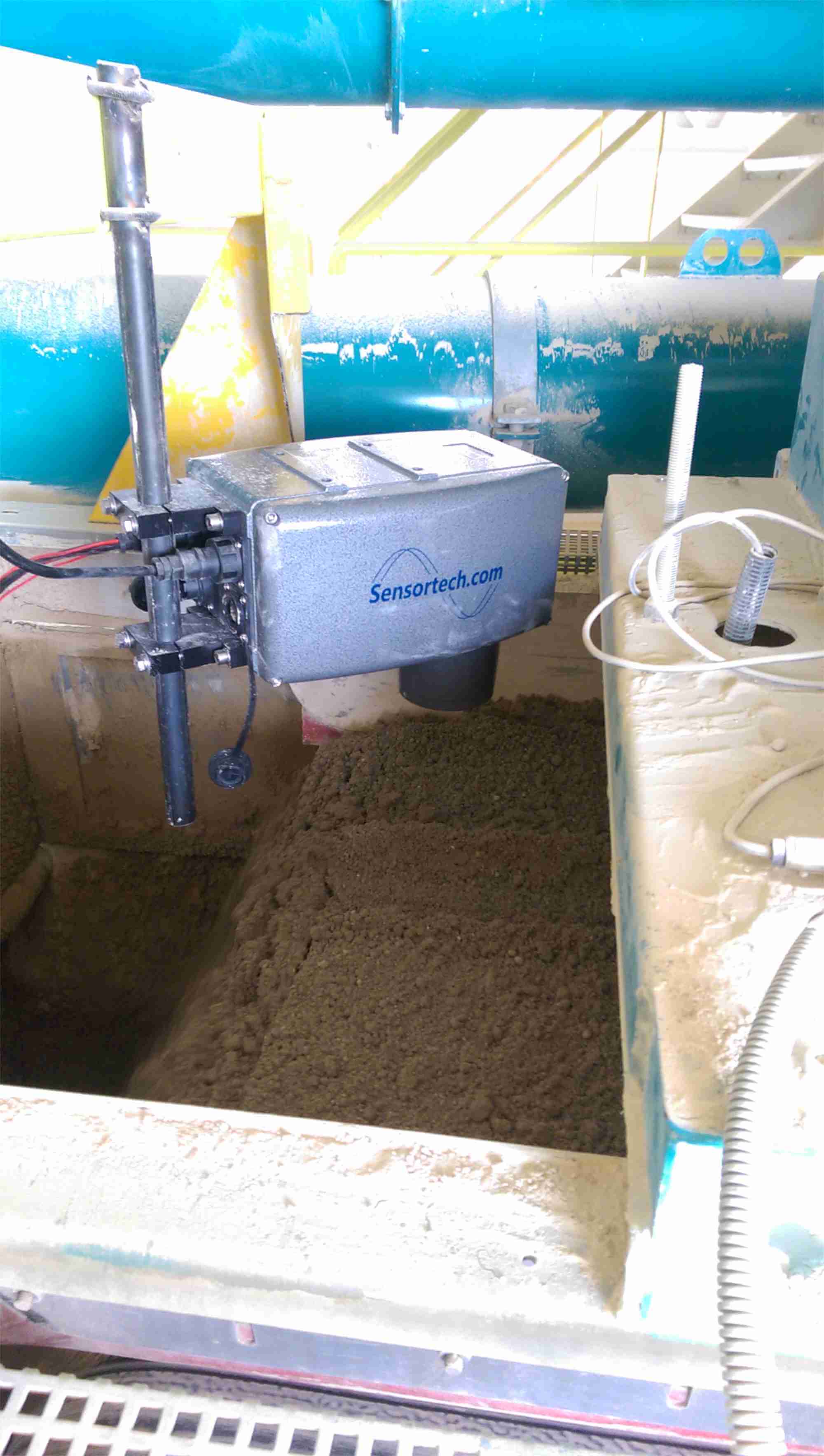

High-Sensitivity Measurement Capabilities

The NIR-6700 provides exceptional performance in the most demanding manufacturing environments, offering unmatched precision on materials that are darker in color or have higher moisture content.

Examples include:

  • Bauxite
  • Cellulose
  • Cement
  • Copper concentrate
  • Ceramic powders
  • Clay
  • Coke
  • Crushed coal
  • Foundry
  • Iron ore
  • Sand
  • Sinter mix

test

test

test

test

test

test

No items found.
Start the Conversation - Get in Touch
NIR-6000 Series On-Line Moisture Sensors

Measure Quality Where it Matters

Learn More

Product Lineup

NIR-6000 Series Analyzers are the choice of manufacturers who are challenged to meet quality standards relating to moisture control in demanding processing environments, while also seeking methods to reduce energy costs associated with high-powered drying systems. Thousands of facilities around the world rely on the NIR-6000 series analyzers to generate accurate and reliable results for responsive process control to optimize production and improve efficiency. With the NIR-6000 Series Analyzers, your process will never be impeded, and your product never compromised.

No items found.
KPM Analytics Distribution

Get in Touch with Us!

Learn More

How It Works

Ruggedized High-Performance Moisture Scanning

The NIR-6000 Series Analyzers are integrated into key areas of a production facility to continuously monitor incoming raw materials or process control on the production line. Each option is designed to integrate seamlessly onto belt, auger & screw conveyors, or bins & chutes to analyze moisture on-line.

The NIR-6000 scanning process is simple but reliable:

  1. A halogen bulb light source within the unit shines through a rotating wheel at 2000 RPM of different NIR filters that are specific to a measurement parameter.
  2. The light is reflected off the product and focused onto a cooled sulfide detector.
  3. The detector’s output is taken by the on-board “smart” circuit board and it is compared to the internal reference beam. This is then converted into a percent of moisture.


KPM Analytics Wheat Field

Request A Demo

Get in Touch

System Components

No items found.
KPM Analytics Global

Get in Touch with Us!

Learn More

KPM Analytics Snack Foods

Get in Touch with Us!

Learn More

Software

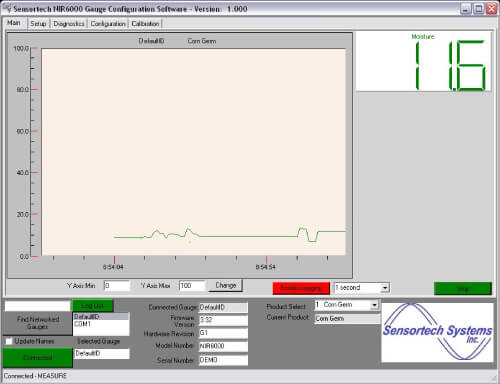

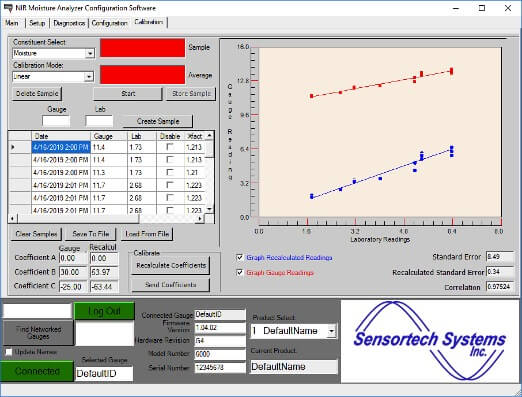

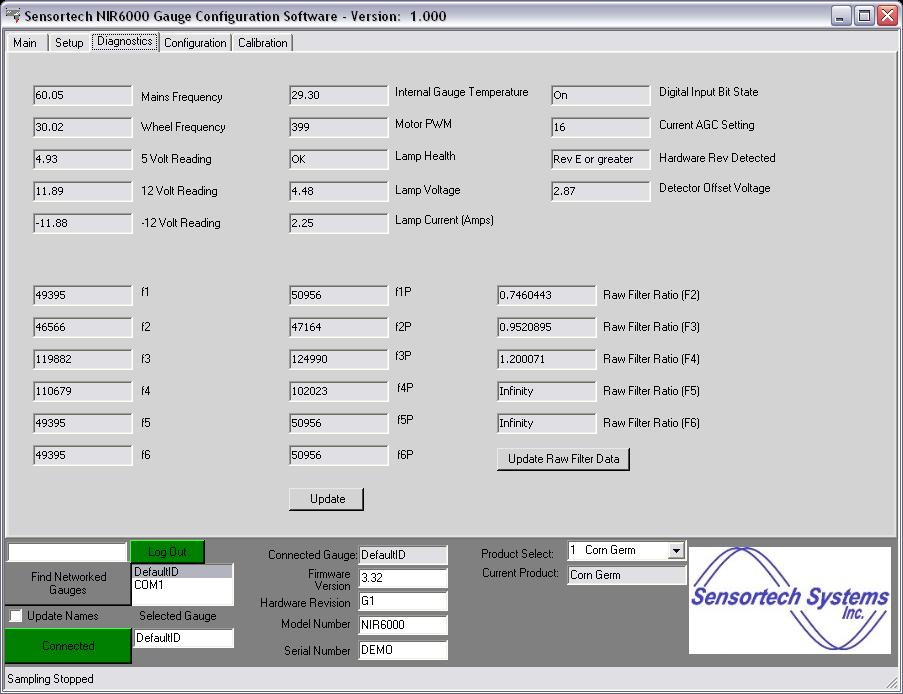

The NIR-6000 Series Analyzers include a proprietary PC-based software package that offers a real-time view of your production processes from your process computer.

Features include:

  • Diagnostics
  • Data-logging capabilities
  • Calibration utilities
  • All configuration settings

The NIR-6000 Series Analyzers include a proprietary PC-based software package that offers a real-time view of your production processes from your process computer.

Features include:

  • Diagnostics
  • Data-logging capabilities
  • Calibration utilities
  • All configuration settings

The NIR-6000 Series Analyzers include a proprietary PC-based software package that offers a real-time view of your production processes from your process computer.

Features include:

  • Diagnostics
  • Data-logging capabilities
  • Calibration utilities
  • All configuration settings

The NIR-6000 Series Analyzers include a proprietary PC-based software package that offers a real-time view of your production processes from your process computer.

Features include:

  • Diagnostics
  • Data-logging capabilities
  • Calibration utilities
  • All configuration settings
Alt Text Title
Community Login

Request A Demo

Get in Touch

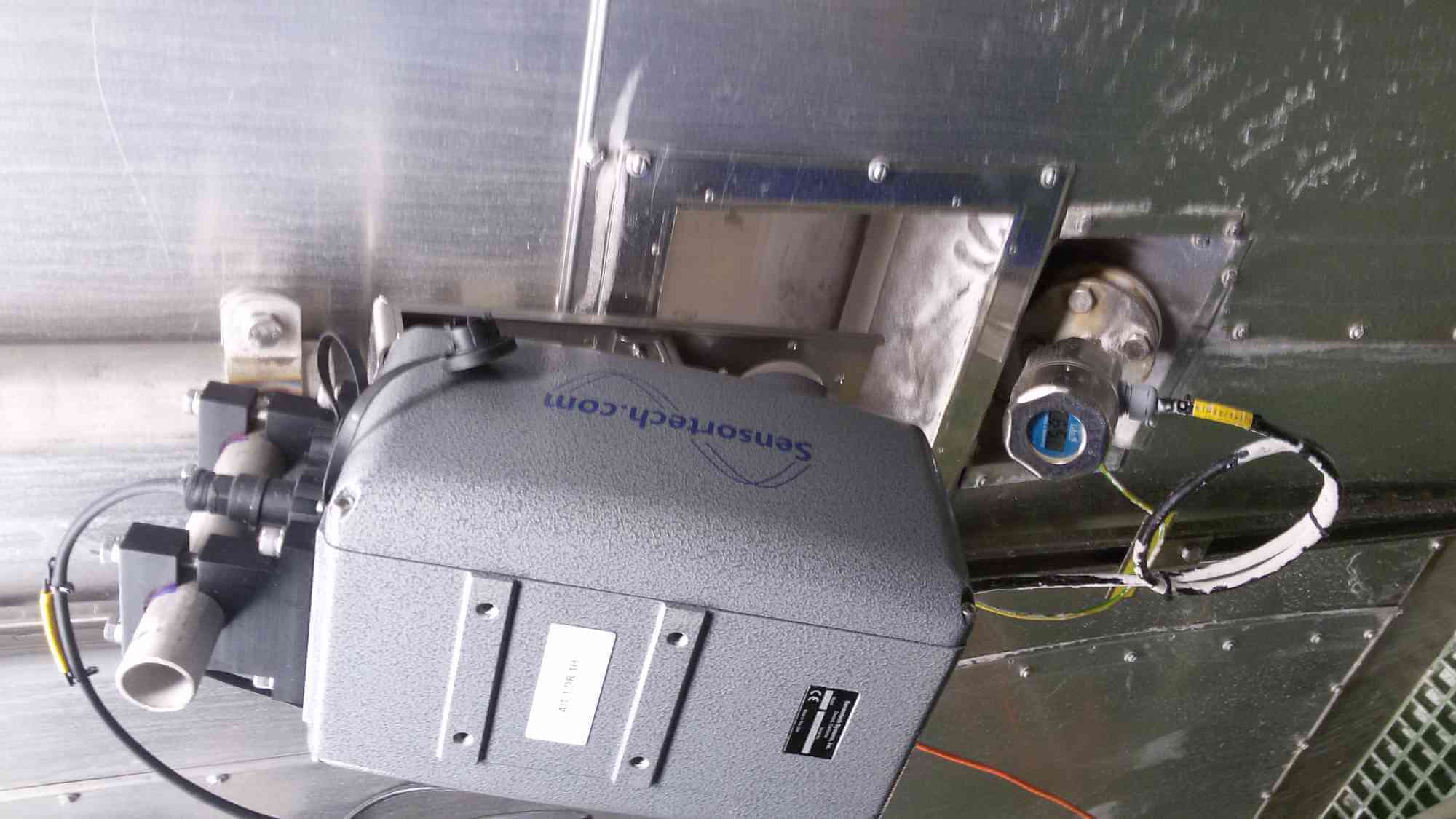

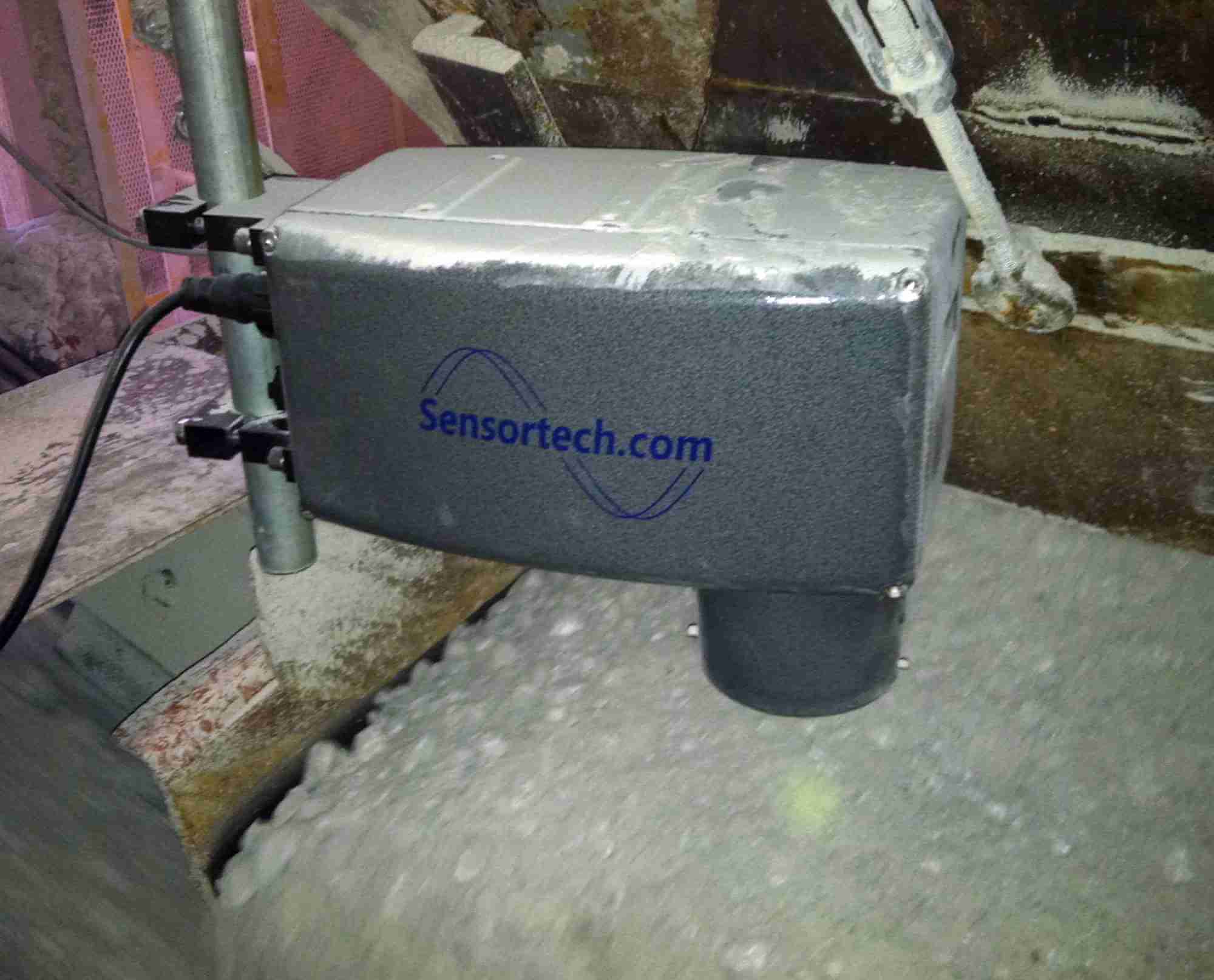

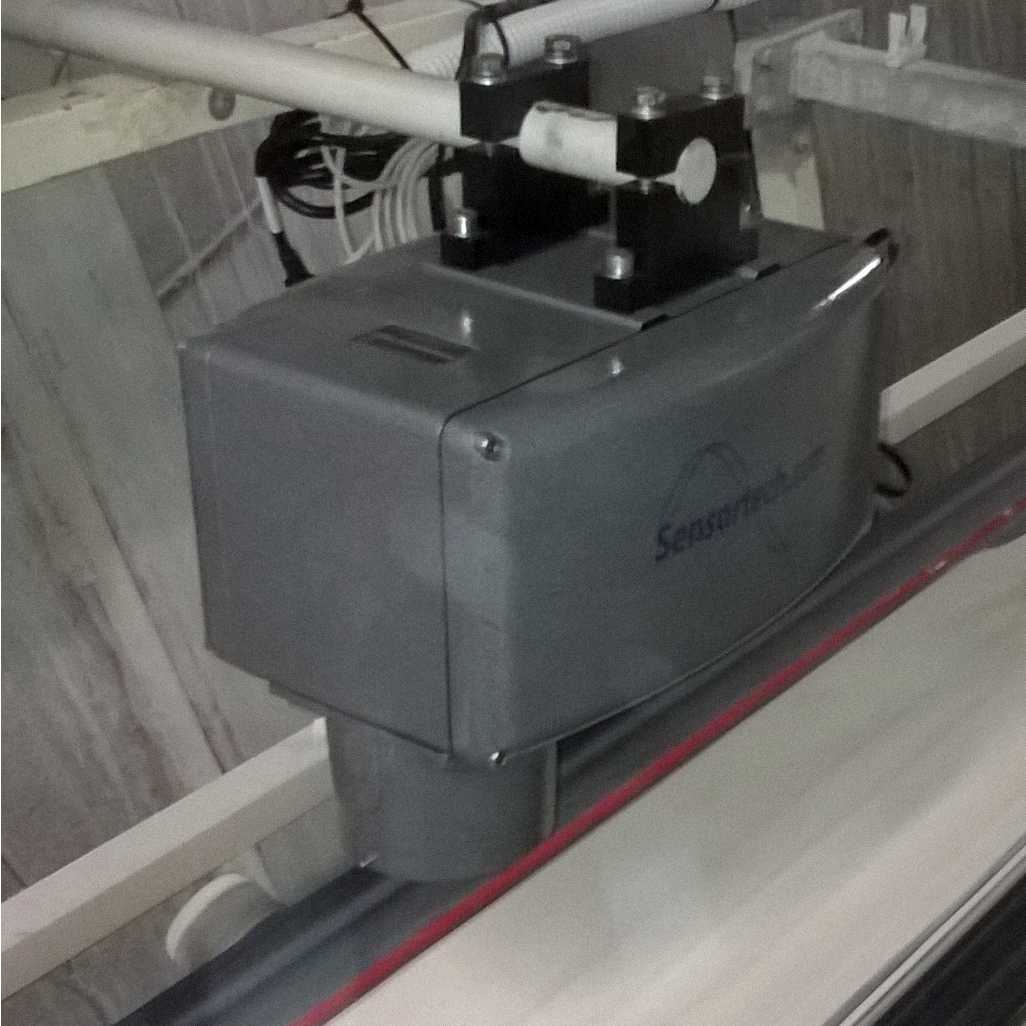

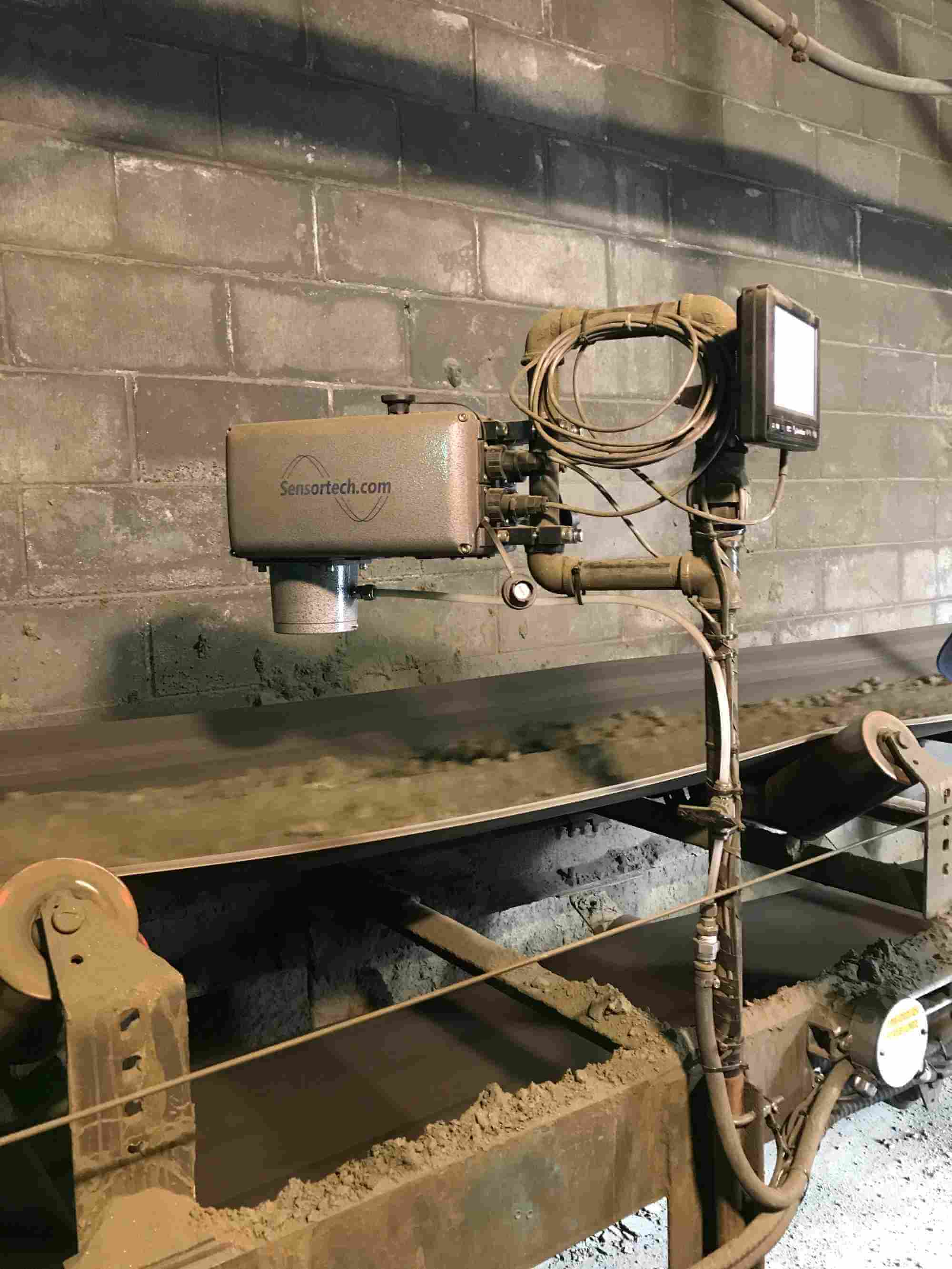

Installation Options

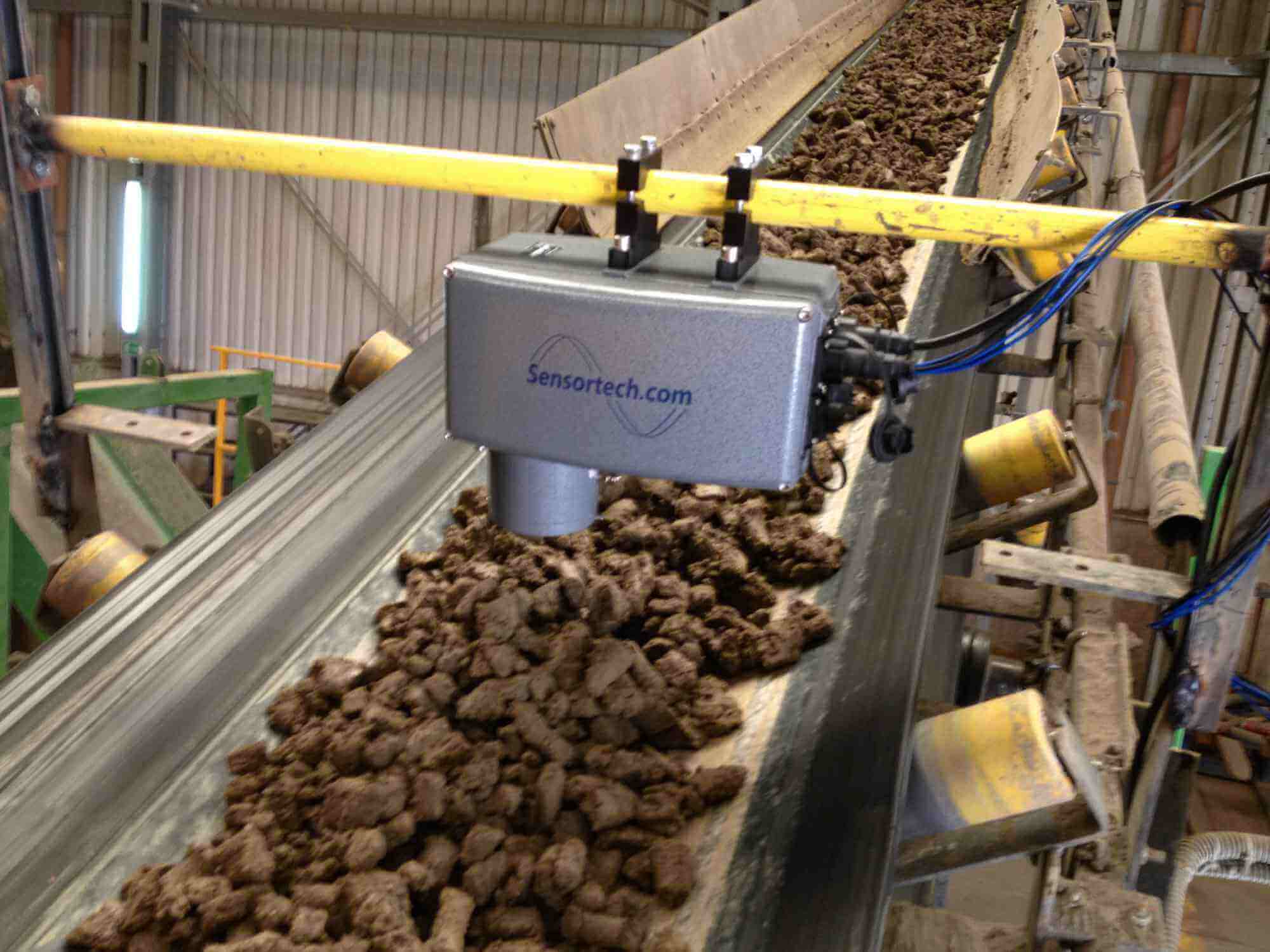

The NIR-6000 is easily installed into almost any manufacturing process where access to quantifiable moisture measurement data is an important variable to quality/process control. Common installation locations include:

  • Belt conveyors
  • Conveyor drop-off points
  • Down chutes
  • Drag conveyors
  • Fluid-bed dryers
  • Hoppers
  • Screw conveyors
  • Storage bins
No items found.
Alt Text Title
KPM Analytics Hot Copper Ore

Request A Demo

Learn More

Accessories

NIR-6000 Series On-Line Moisture Sensors

Available Accessories

  • Sensor, non-contact product temperature (internal pyrometer)

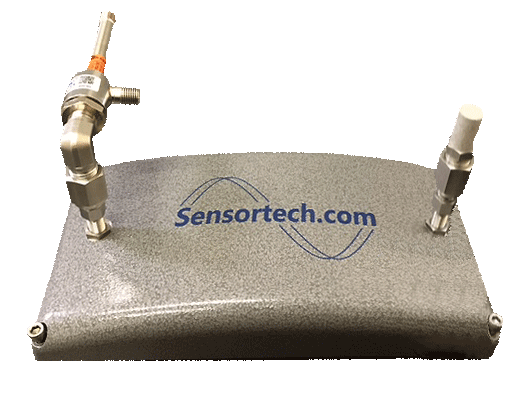

  • Cooling side panel assembly (air vortex cooling)
  • Heating side panel assembly (240 VAC)
  • Calibration standards with case (High/low references)
  • Base and stand for rear mounting
No items found.
KPM Analytics Global

Get in Touch with Us!

Learn More

Specifications

NIR-6000

Dimensions Width x Depth x Height: 31.1 x 22.2 x 26 cm (12.25 x 8.75 x 10.25 in.)
Weight 9.5 kg (21 lbs)
Power 80/265 VAC (50/60 Hz)
Sensor Housing Powder Coated Cast Aluminum
Moisture Accuracy ± 0.10% (subject to application)
Moisture Range 0 to 95%
Recommended Measurement Distance 100 – 400 mm (4 – 16 in.)
Calibration Codes 50
Ambient Temperature 0 to 55°C (32 to 131°F. Down to -20°C (-4°F) with Heating Option, up to 85°C (185°F) with Cooling Option
Standard Mount Top or Rear Mount for Positioning Over Conveyor Belts or Looking Through a Sight Glass Window
IP Rating IP64

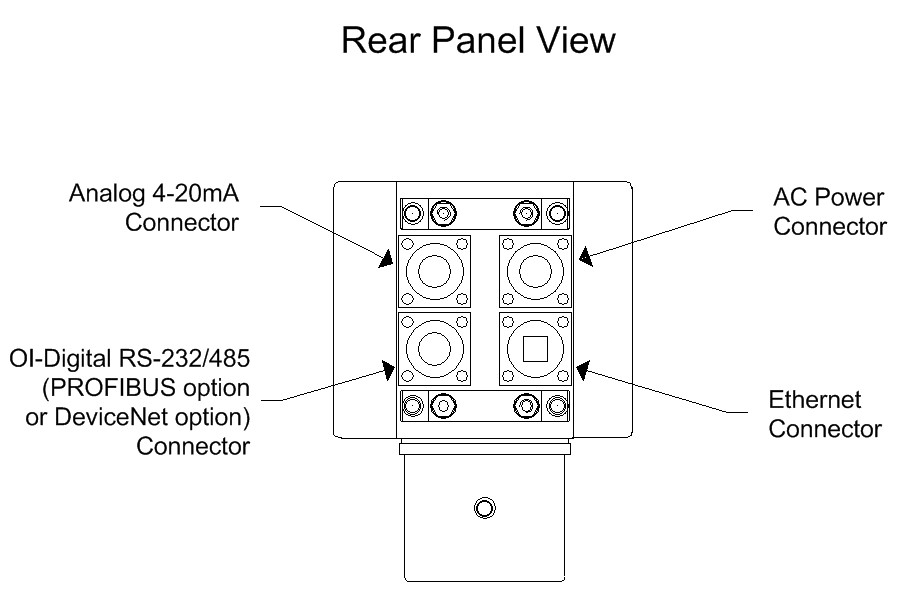

Interfaces Ethernet TCP/IP; Serial RS-232; Isolated 4-20mA Outputs; RS-422/485 (Factory Configured)

NIR-6700

Dimensions Width x Depth x Height: 31.1 x 22.2 x 26 cm (12.25 x 8.75 x 10.25 in.)
Weight 9.5 kg (21 lbs)
Power 80/265 VAC (50/60 Hz)
Sensor Housing Powder Coated Cast Aluminum
Moisture Accuracy ± 0.10% (subject to application)
Moisture Range 0 to 95%
Recommended Measurement Distance 100 – 400 mm (4 – 16 in.)
Calibration Codes 50
Ambient Temperature 0 to 55°C (32 to 131°F. Down to -20°C (-4°F) with Heating Option, up to 85°C (185°F) with Cooling Option
Standard Mount Top or Rear Mount for Positioning Over Conveyor Belts or Looking Through a Sight Glass Window
IP Rating IP64
Interfaces Ethernet TCP/IP; Serial RS-232; Isolated 4-20mA Outputs; RS-422/485 (Factory Configured)
