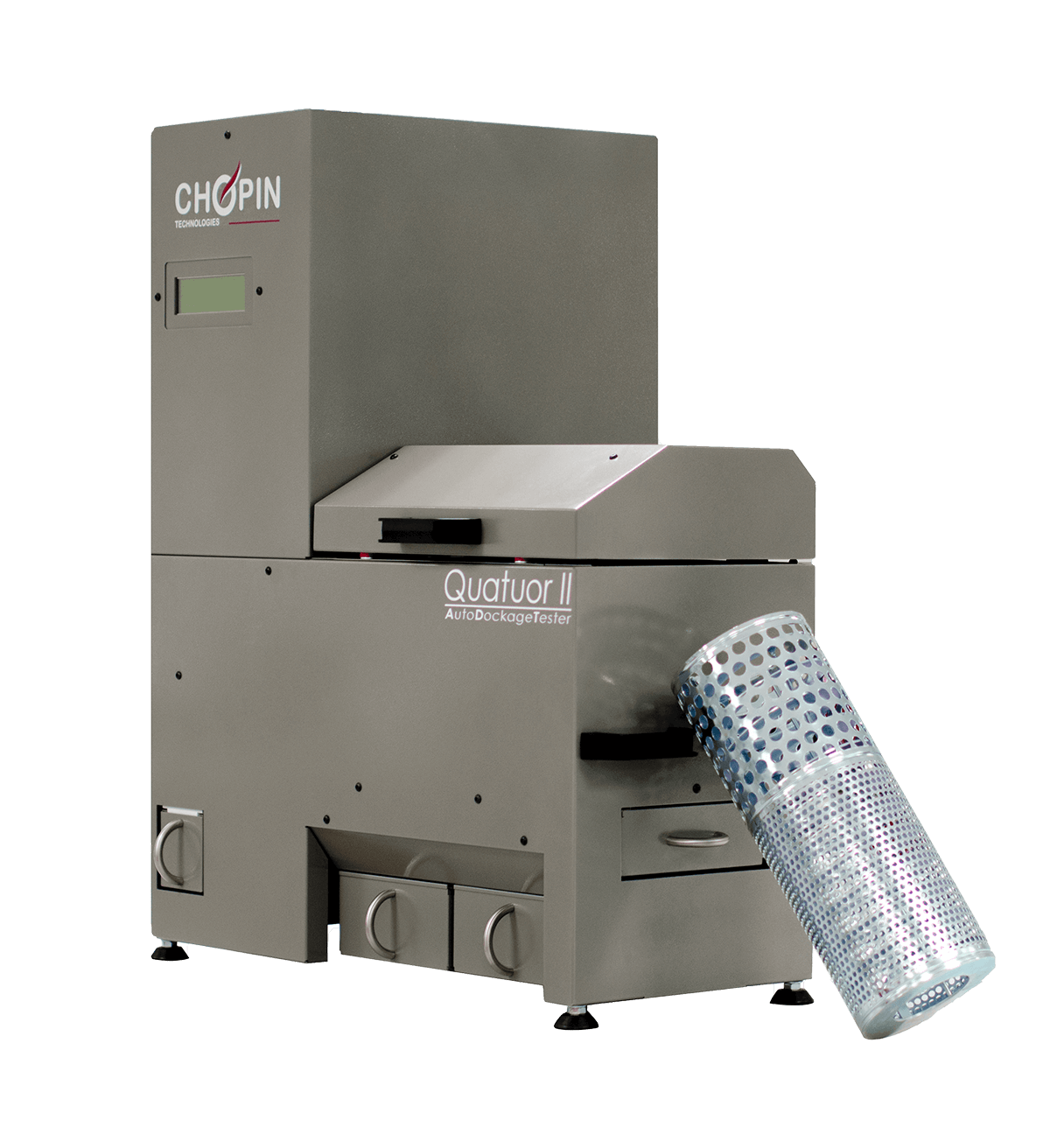

The QUATUOR 2 automatically identifies and measures grain impurities and cleans your lab samples.

Efficient

  • Centrifugal sieving with a brush to remove any particles that might stick to the sieve.

Convenient

  • Dedicated sieves per cereal are easy and fast to replace.

Simple

  • Airflow speed and rotation speed of the sieves are pre-set, based on the type of grain to be cleaned.

Adaptable

  • Settings can be customized to your needs for dedicated grain separation improvement.

Easy to use

  • Scales are easy to read, and results can be transferred to a PC at the end of the analysis.

Upgradable

  • Can be integrated into the GESTAR control line upon receipt and shipping of cereals.

Fast

  • Insert the sample, launch the measurement, results for 500 ml of grains are automatically displayed within 90 seconds.

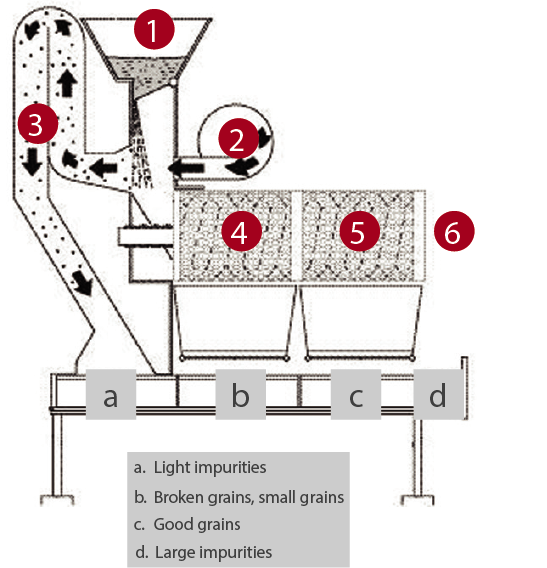

Determination of the level of impurities in grains (light impurities, broken grains, total impurities, good grains) upon delivery.

Accessories

Quatuor 2
No items found.
No items found.
No items found.

Specifications

No items found.
Quatuor
Dimensions
Weight
Power
Test Time
Sample Size
No items found.
Quatuor
L 720 mm x D 500 mm x H 940 mm
50 Kg (110 lbs)
220-240Vac 50/60Hz 210W
90 seconds
500 ml
