Product Overview

A Picture is Worth a Thousand Words

TheiaVu® Series Compact Vision Inspection Systems provide a wide variety of measurements of unique features that quantify product quality. TheiaVu® allows quality teams to save a significant amount of time while getting more precise and repeatable measurement data to improve their process. In addition, measurements that were previously not possible or realistic to measure are made available as valuable data.

Features

  • Powerful: Quantify product features difficult to measure manually
  • Automatically collects critical product data
  • Easy to use operator interface
  • Fast: up to 10 objects/second* (Collect more data in less time)
  • Versatile: Can be used in lab or production area. Washdown version available
  • Flexible: built-in library with 100+ measurements and growing
  • Measure products up to 91 cm (36” long)
  • Weigh scales and temperature probes as optional accessories

*Actual speed will depend on the size of object and number of different measurements performed

Benefits

  • Perform quality checks faster and with better repeatability
  • Know more about your product compared to manual methods
  • Ensure consistent product quality  between batches, shifts, and sites
  • Cost savings through reduced labor and waste
  • Brand protection
  • Save time with reporting, all results are saved & organized
  • Achieve competitive advantages
Vision & Thermal

Applications

Used in the lab or at-line, TheiaVu® systems produce critical measurement data on final products or at various stages throughout production for both quality and process control.

Measure Quality Where It Matters

Typical Applications Include:

  • Incoming Inspection: Inspect raw materials quality, such as fruits, vegetables, meat, poultry, and more
  • R&D: For bakeries or ingredient producers, quantify the baked goods fresh out of the oven based on a new formulation or a new ingredient (can also be before baking, during proofing, etc)
  • Process Improvement: Quality sampling at every stage of production provides teams with the data they need to improve processes
  • Quality Control: Before packaging, inspect final products or works-in-progress for quality control
  • Program Development: Assistance with creating standards for quality assurance programs
  • Training: Use the TheiaVu® for training staff on in-line or over-line systems, it operates on the same user interface
No items found.
No items found.
No items found.
No items found.
Vision & Thermal

Lineup

The TheiaVu® Series Vision Inspection System offers four configurations for lab or at-line use. Choose from two conveyor widths, a high-resolution option, and a full washdown compliant version.

Common System Configurations

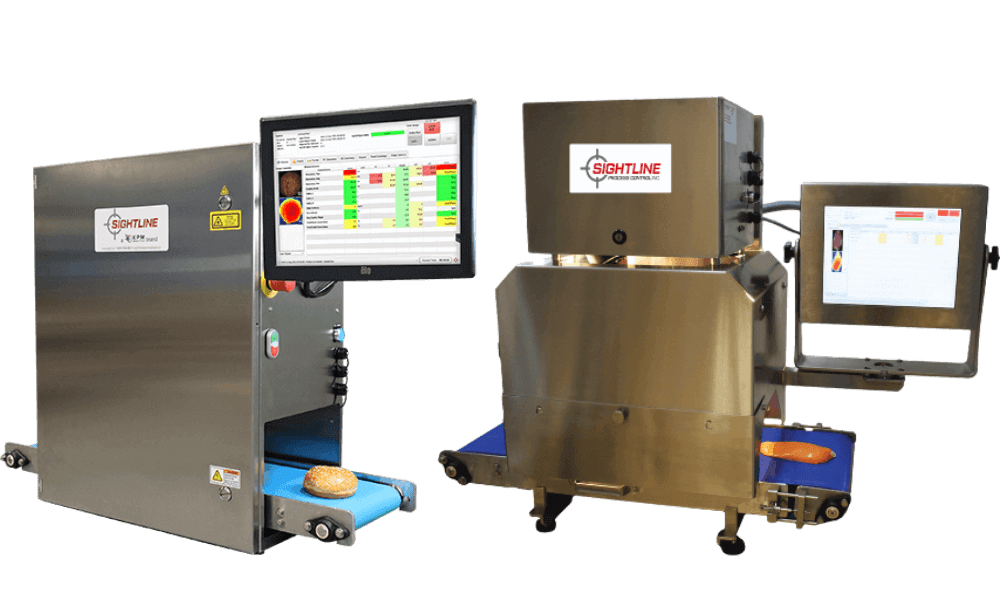

TheiaVu® TV-250 Benchtop Vision Measurement System
TV-250 - Standard
  • Conveyor Width: 229mm (9")
  • 2D color standard resolution camera
  • 3D profile camera
  • Standard LED lighting
  • All food products not requiring washdown
TheiaVu® TV-250HR Benchtop Vision System
TV-250HR - High Resolution
  • Conveyor width: 229mm (9")
  • 2D color high-resolution camera
  • 3D profile camera
  • Special LED lighting available
  • Better detection of small details (~5mm - 50mm) and bread crumb structure analysis
TheiaVu® TV-300 Benchtop Vision
TV-300 - Wider Belt
  • Conveyor width: 300mm (12")
  • 2D color standard resolution camera
  • 3D profile camera
  • Standard LED lighting
  • Better for wider objects
TheiaVu® WD-300 Washdown Vision Measurement System
WD-300 - Washdown
  • Washdown compatible; ideal for meat & poultry applications
  • 2D color standard resolution camera
  • 3D profile camera
  • Polarized  LED lighting
  • Conveyor width: 300mm (12")
No items found.

Communication Throughout the Process

Vision-Based Lane Balancing

Vision & Thermal

Vision & Thermal

How It Works

Compact Machine Vision for Quality Control

TheiaVu® vision inspection systems, also referred to as machine vision systems, use a selection of high-speed cameras, a laser, and imaging software to detect and measure objects as they move along the built-in conveyor belt.

Our proprietary measura® software suite and measurement algorithms can determine the size, shape, color, or composite measurement of any object and convert this information into standard units for quality control purposes. Results are displayed in real-time and data for every object is saved for future analysis and reporting.

To Inspect a Product:
  1. Power on the system
  2. Select the desired measurement profile using built-in operator interface
  3. Place the object on the moving conveyor belt
  4. Instantly view the results on-screen

You can continuously feed multiples of the same product onto the belt without resetting the system and all data will be saved. There is no need for manual note taking or spreadsheets.

Product profiles are easy to adjust or create using the measura® Toolbox module (included). All you need to do is enter your specifications and save. Next time you load the profile, your changes are applied.

Vision & Thermal

Vision & Thermal

Measurements

Using vision technology, your products are characterized in meaningful ways, including complex details that are difficult and time-consuming with traditional manual methods. Our standard measurements library consists of over 100 basic and advanced algorithms and growing.

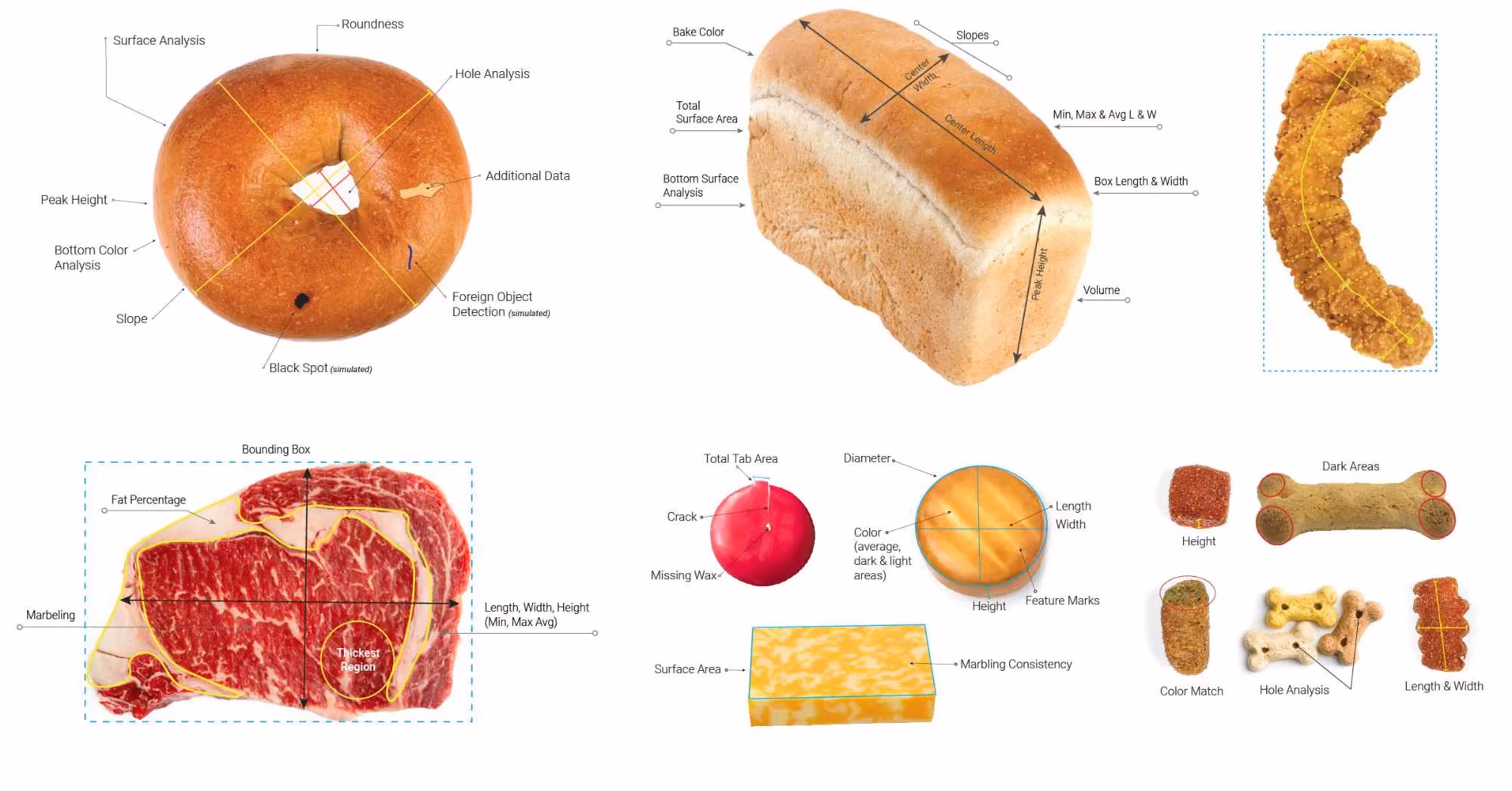

A LARGE MEASUREMENT LIBRARY, AND GROWING

Heights Peak, Mean, Center, Edge
Diameters Min, Max, Mean
Slopes Mean End-to-End, Side-to-Side
Shape Length, Width, Roundness
Color Average, Topping, Top Surface w/o Topping
Surface Features Number of Splits, Split Width, Topping Coverage
Others Surface Area, Volume
External Devices Weights, Temperatures

Vision & Thermal

Vision & Thermal

Specifications

Vision & Thermal
