Product Overview

Laboratory Milling of Both Hard & Soft Wheats

The CHOPIN Technologies LabMill is a laboratory mill used to transform both hard and soft wheat into refined flour to examine its milling behaviour and the quality of the flour produced. The biochemical composition of the flours processed by the LabMill is very close to that of industrial flours (purity, granulometry, histological composition, starch damage, quality and quantity of protein).

No items found.

Features

  • Patented Milling Diagram
  • ~To optimize milling value evaluation
  • ~To combine high extraction rate with high flour purity
  • Robust Cylinders
  • ~Reduced maintenance
  • ~Long life expectancy
  • Centrifugal Sifting
  • ~Reliable, compact and powerful system
  • ~Very effective if the distance between the beater and the sieve is well controlled
  • Precise Feed System
  • ~Releases a constant flow
  • ~Adapted to every type of wheat
  • Adjustable Settings to Ensure Versatility of Use
  • Breaking and Reduction Parts are Independent (it’s possible to run 2 simultaneous millings)

Benefits

  • Anticipate the behavior of wheat in an industrial mill (extraction potential and flour quality)
  • Facilitates and secures wheat purchases by allowing the miller to make a choice according to the quality of the produced flour and the way in which the flour is obtained (milling value). For equivalent flour quality, the miller can choose the wheat that best suits their milling process
  • Ideal tool to produce flours adapted (quantity and quality) to the realization of bread-making tests
LabMill

Get in Touch with Us!

Learn More

Applications

A Modern and Versatile Mill

The LabMill is Used in the Wheat Industry for Assessing Milling Quality & Produced Flour Quality

Millers

For millers, the LabMill assists with the wheat selection, based on its milling value and the quality of the produced flour. Millers also use the instrument to assist with their wheat blends. They can optimize wheat tempering by adjusting the moisture level and resting time for several batches.Select optimal wheat according to properties best suited to your milling process AND the final flour quality.

Ingredient Specialists & Recipe Development

With its large milling capacity (up to 3.5 Kg of wheat), combined with its high extraction rate, the LabMill generates enough flour for bread-making tests with their enzymes, additives, etc.

The high extraction rate of LabMill also has the advantage of producing flour that is close to industrial flour (peripheral proteins, enzymes, etc.), which is an additional advantage when conducting bread-making tests.

Research & Educational Institutes

The LabMill is the ideal tool for training in milling and for conducting technical and scientific studies:

  • Its operating principle (succession of grinding and sieving) is representative of that of an industrial mill and makes it easy to understand the basic principles of milling
  • Its milling diagram is complete (breaking, sizing and reduction steps) with combined grooved and smooth rolls, which makes it possible to better understand the role of these various stages
  • Its configuration allows you to recover, quantify and study all the milling products (streams flours, middlings and brans)
  • Its flexibility (streams, flow rate, sieves and rolls adjustments) allows the study of the many parameters influencing the result of a milling process (both quality and quantity)
No items found.
Start the Conversation - Get in Touch
LabMill

Measure Quality Where it Matters

Learn More

Product Lineup

No items found.
KPM Analytics Distribution

Get in Touch with Us!

Learn More

How It Works

Gradual Milling with a Dedicated & Patented Diagram

Although on a reduced scale, the LabMill’s operating principle is similar to that of an industrial mill: the grain is ground in a series of rollermills to remove the bran and to cut the endosperm. Between each rollermill cycle, the ground grain is sifted and separated into various sizes. With this procedure, the LabMill produces a flour that is representative (purity, granulometry, histological composition, starch damage, quality, and quantity of protein) of product produced by a commercial industrial mill and can be used for all your rheological analyses.

The LabMill’s innovative patented milling diagram is comprised of 5 (or 6) consecutive steps:

  • 2 breaking steps, between grooved rollers, to make flour, fine middlings, coarse middlings, and bran
  • 1 sizing step, between smooth rollers, to reduce coarse middlings to flour, fine middlings, and fine bran
  • 2 (or 3) reduction steps, between smooth rollers, to reduce fine middlings to flour

LabMill was developed within the Milling Quality Consortium (AFSA, Arvalis-institut du végétal, ANMF, Danone Vitapole, INRA, IRTAC, Ulice, CHOPIN Technologies).

*Patent FR N° 0905572 | US N°9 067 210

KPM Analytics Wheat Field

Request A Demo

Get in Touch

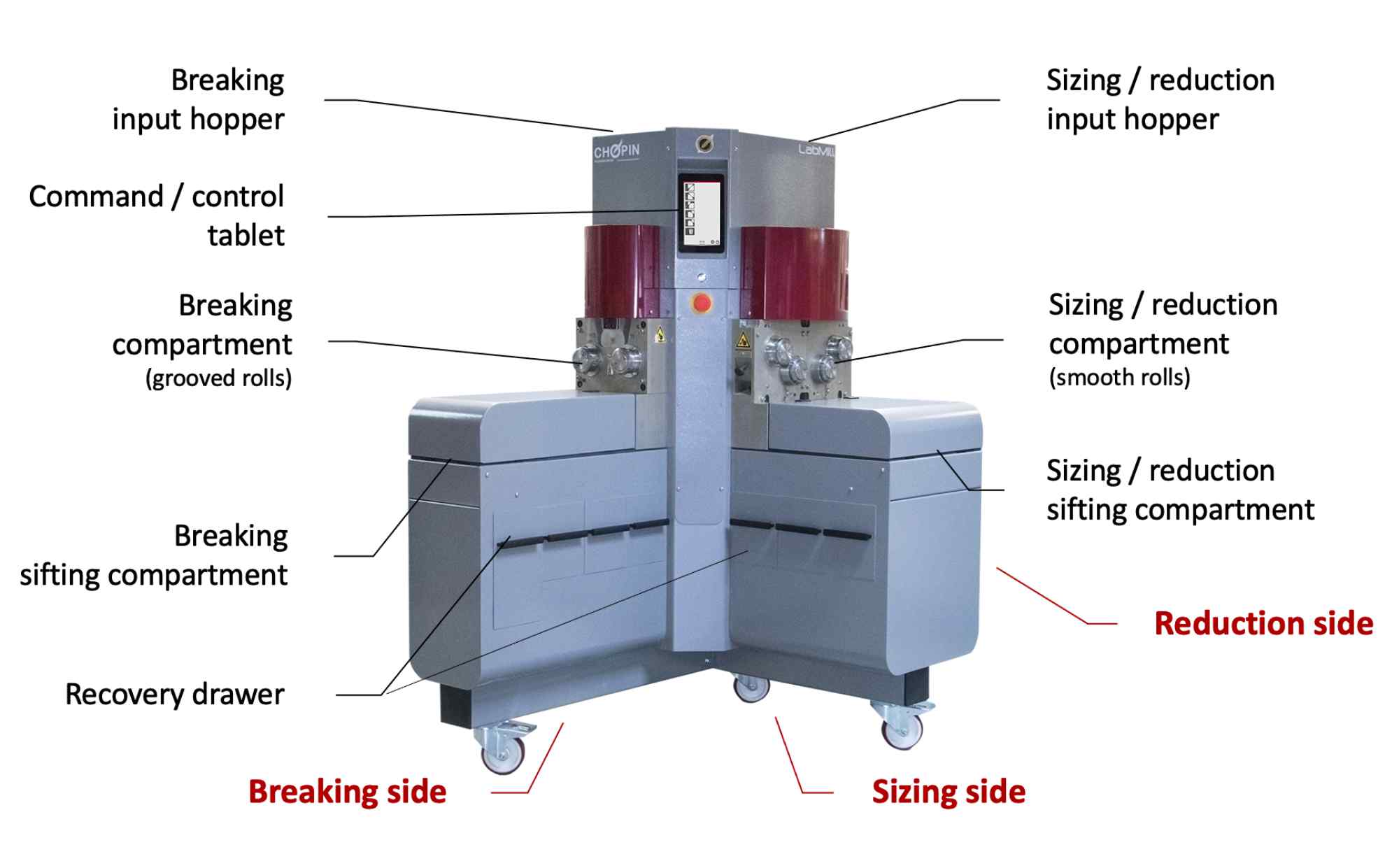

System Components

A Complete and Compact Mill

All access is through the top and front of the device, making it easy to carry out all analysis and maintenance operations in optimal ergonomic conditions.

The LabMill incorporates innovations allowing for the combination of performance, precision, reproducibility, sturdiness, and ease of use.

Adjustable Settings

  • Equipped with a precise scale, LabMill’s feed system releases a constant flow of grain, adapted to every type of wheat. Flow rate is easily configurable by the operator using a user-friendly control interface
  • Sifting time for each stream is easily configurable by the operator using the user-friendly control interface
  • Beater bar orientation (extraction or retention) allows you to adapt the sifting quality *
  • The cylinders are mounted on eccentric bearings, which allows for special adjustments*

* Adjusting beater bar orientation and cylinder gap requires specific tools & knowledge and specific training by a CHOPIN expert

No items found.
KPM Analytics Global

Get in Touch with Us!

Learn More

Performance

  • Extraction rate
  • ~The extraction rate obtained on the LabMill is particularly high compared to its short milling diagram. This extraction rate is between 65% and 80%, with an average of around 75%.
  • Purity
  • ~Flour purity is traditionally measured by ash content. In LabMill’s case, it is between 0.50% and 0.65%/ms, which corresponds to a 55 ash flour commonly used in bread-making.
  • Flour Quality

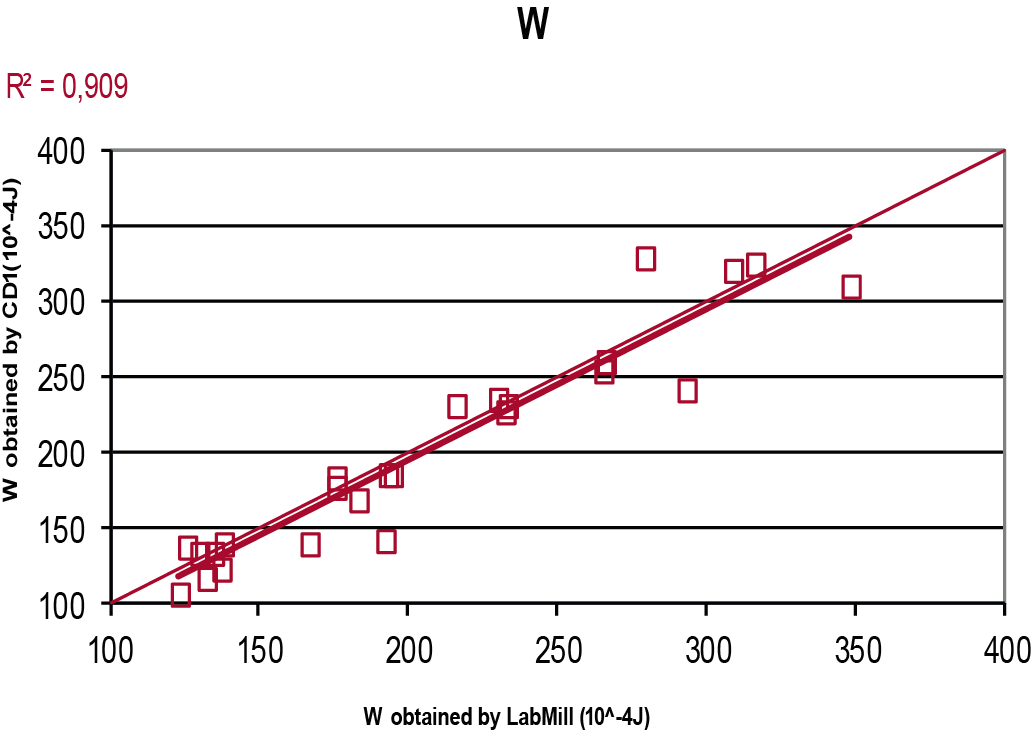

  • ~With its factory settings, the LabMill produces a flour quality comparable (in terms of Alveograph results) to that produced by a CD1 Mill according to the ISO 27971 standard.

These performances are dependent on the type of wheat used, the wheat tempering method, and the adjustments made to the LabMill.

KPM Analytics Snack Foods

Get in Touch with Us!

Learn More

Software

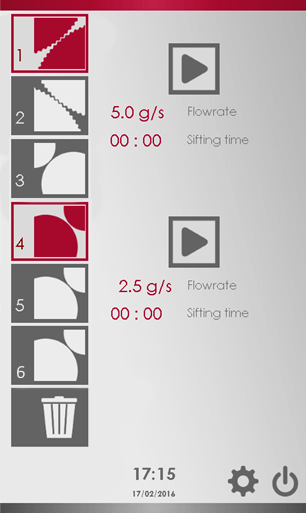

User Interface

The operation of the LabMill is controlled by a dedicated, complete and intuitive user interface. Through a touch screen, the operator easily manages:

  • Tests
  • ~Select the stream you want to activate and all settings (flow rate, sifting time, etc.) are automatically chosen
  • ~Breaking and reduction parts are independent, making it possible to run 2 simultaneous millings
  • Labmill Configuration and Control
  • ~Language
  • ~Local parameters selection (date, format, etc.)
  • ~Flow rate and sifting time adjustment for each stream
  • ~Weight calibration

User Interface

The operation of the LabMill is controlled by a dedicated, complete and intuitive user interface. Through a touch screen, the operator easily manages:

  • Tests
  • ~Select the stream you want to activate and all settings (flow rate, sifting time, etc.) are automatically chosen
  • ~Breaking and reduction parts are independent, making it possible to run 2 simultaneous millings
  • Labmill Configuration and Control
  • ~Language
  • ~Local parameters selection (date, format, etc.)
  • ~Flow rate and sifting time adjustment for each stream
  • ~Weight calibration

User Interface

The operation of the LabMill is controlled by a dedicated, complete and intuitive user interface. Through a touch screen, the operator easily manages:

  • Tests
  • ~Select the stream you want to activate and all settings (flow rate, sifting time, etc.) are automatically chosen
  • ~Breaking and reduction parts are independent, making it possible to run 2 simultaneous millings
  • Labmill Configuration and Control
  • ~Language
  • ~Local parameters selection (date, format, etc.)
  • ~Flow rate and sifting time adjustment for each stream
  • ~Weight calibration

User Interface

The operation of the LabMill is controlled by a dedicated, complete and intuitive user interface. Through a touch screen, the operator easily manages:

  • Tests
  • ~Select the stream you want to activate and all settings (flow rate, sifting time, etc.) are automatically chosen
  • ~Breaking and reduction parts are independent, making it possible to run 2 simultaneous millings
  • Labmill Configuration and Control
  • ~Language
  • ~Local parameters selection (date, format, etc.)
  • ~Flow rate and sifting time adjustment for each stream
  • ~Weight calibration
Community Login

Request A Demo

Get in Touch

Installation Options

No items found.
KPM Analytics Hot Copper Ore

Request A Demo

Learn More

Accessories

LabMill

Available Accessories

No items found.
KPM Analytics Global

Get in Touch with Us!

Learn More

Specifications

LabMill

Milling Capacity From 50 g to 3.5 Kg
Flour Quality - Extraction Rate: 65 to 80%
- Ash Content: 0.5 to 0.65%
Milling Time - Test time (1000 g): 40 Minutes
- Operator time: 20 Minutes
Dimensions 1200 mm L x 900 mm W x 1500 mm H(47.2 in L x 35.4 in W x 59.1 in H
Weight 200 kg (440 lbs)
Power 220/240 VAC 50Hz or 60Hz - 2200 W
Environmental Considerations - Indoor Use
- Operating Temperature: 10°C to 45°C (50°F to 113°F)
