AgriCheck XL Versatile Grain Analyzer

AgriCheck XL Versatile Grain Analyzer
AgriCheck XL Versatile Grain Analyzer

Product Overview

High-Precision NIR for Both High-Moisture and Dry Grains

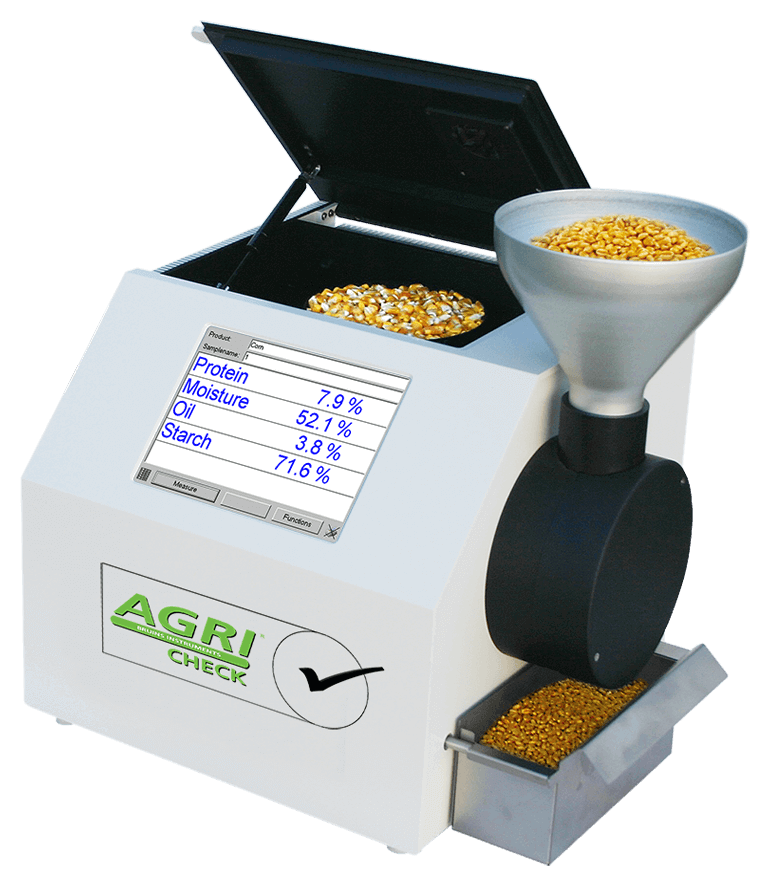

The Bruins Instruments AgriCheck XL is designed to measure dry whole grains including wheat, durum, barley, corn, soybeans, brown rice, milled rice, rough rice, oats, rye, triticale, sorghum, and others. It also includes a unique sample dish to evaluate high-moisture samples (up to 60%) such as wet grain and green malt, or standard grain samples in small quantities for plant breeding or similar applications. The analyzer is easy to use, and the patented linear monochromator technology is designed for years of use. These tests provide critical quality data for incoming ingredients and ensure your specifications are being met.

No items found.

Features

  • High precision, linear monochromator provides reliable measurements
  • Intuitive software and a large touchscreen makes the analyzer easy to use
  • Optional Test Weight module determines the specific weight of the grain

Benefits

  • High accuracy and trusted results allow for quick adoption of the instrument
  • Intuitive and easy to use means less time training staff to use the analyzer
  • Global calibrations for major quality parameters allow plug & play operation for a wide variety of grains
  • Proven monochromator design with decades of success across thousands of installations worldwide
AgriCheck XL Versatile Grain Analyzer

Get in Touch with Us!

Learn More

Applications

The AgriCheck XL analyzes all kinds of whole grain, including:

  • Wheat
  • Durum
  • Barley
  • Corn
  • Soybeans
  • Rapeseed
  • Brown rice
  • Wet grain
  • Green malt
  • Milled rice
  • Rough rice
  • Oats
  • Rye
  • Triticale
  • Sorghum
Green Malt
Sorghum
Rice
Oilseeds
Corn Products
Cereals & Grains
No items found.
Start the Conversation - Get in Touch
AgriCheck XL Versatile Grain Analyzer

Measure Quality Where it Matters

Learn More

Product Lineup

No items found.
KPM Analytics Distribution - Abstract Background

Get in Touch with Us!

Learn More

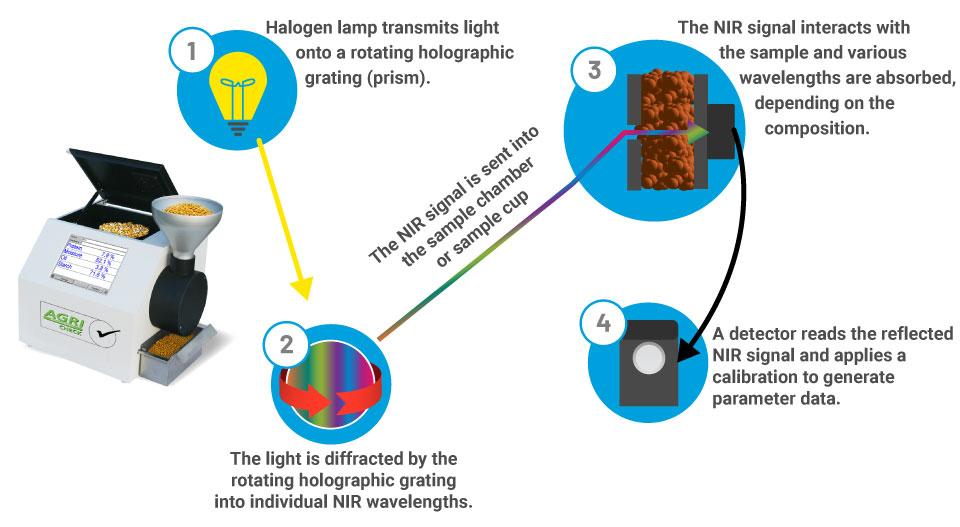

How It Works

The AgriCheck XL is an easy-to-use instrument with minimal operator training required. The operator simply selects the product to analyze using the touchscreen and fills the grain into the funnel or top sample dish. Once the analysis is complete, the measurement data is displayed directly on the screen for the user.

KPM Analytics Wheat Field - Harvesting - Cereal and Grains Quality

Request A Demo

Get in Touch

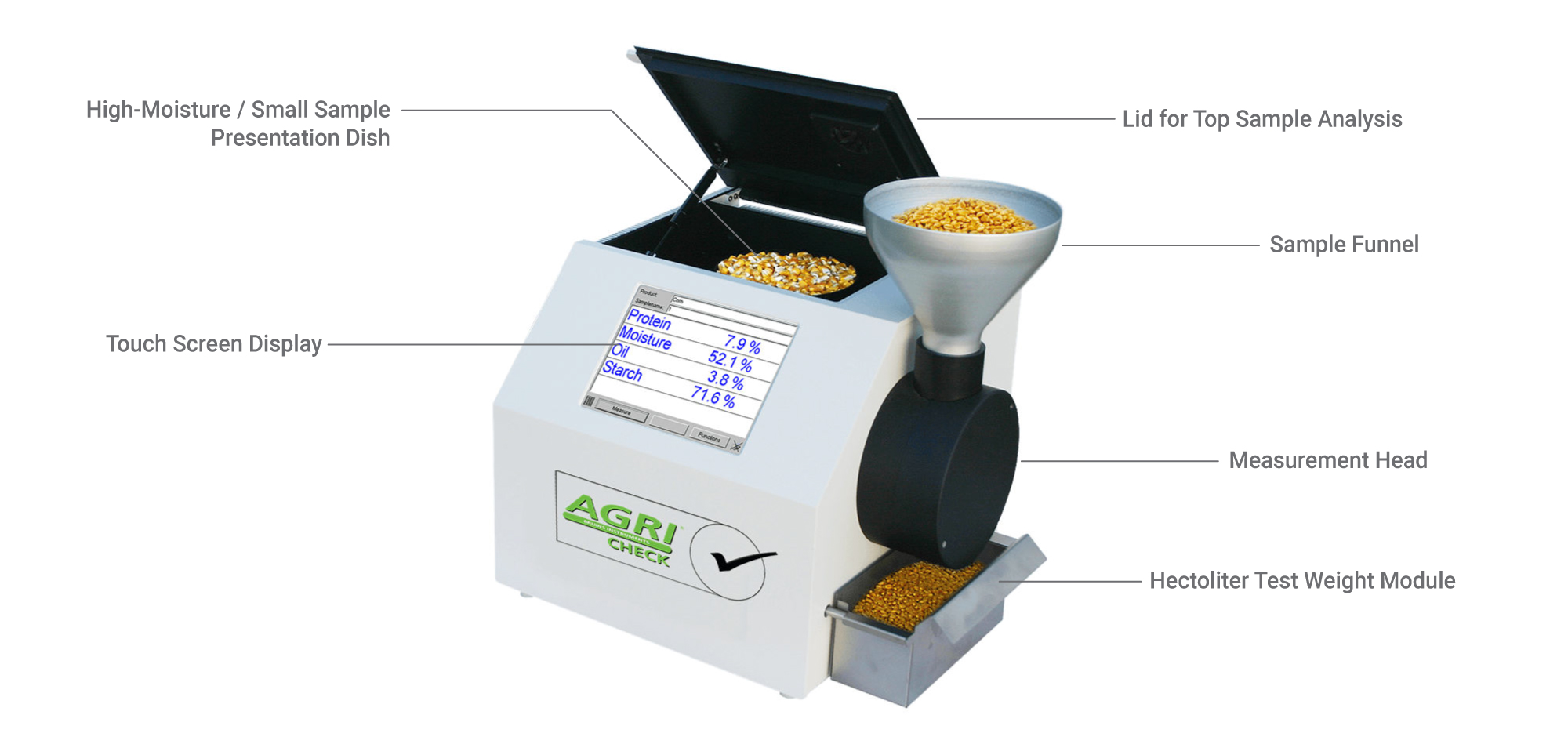

System Components

The AgriCheck XL analyzers are available in three path lengths for the standard transmission sample wheel. This must be specified at the time of ordering. The options are:

  • 18 mm for barley, oats, rye, and wheat
  • 22 mm for durum, rice, soybeans, and wheat
  • 30 mm for corn, rice, and soybeans

No items found.
KPM Analytics Global

Get in Touch with Us!

Learn More

Calibrations

AgriCheck calibrations have been developed from years of samples collected from many geographical regions. These calibrations provide reliable measurements out-of-the-box across most sample types.

The AgriCheck calibrations are available for a wide variety of parameters, depending on the product:

  • Moisture
  • Protein
  • Oil
  • Starch
  • Fiber
  • Gluten
  • Zeleny
  • Amylose
  • FFA, and more
KPM Analytics Quality Control Solutions for Snack Food Manufacturers

Get in Touch with Us!

Learn More

Software

The graphical software and a large touchscreen make the AgriCheck analyzer easy to use. The operator simply selects the product and fills the grain into the funnel or puts the powder or paste sample in a sample cup at the top of the machine. The results are displayed on the screen and can be sent to an optional printer.

The graphical software and a large touchscreen make the AgriCheck analyzer easy to use. The operator simply selects the product and fills the grain into the funnel or puts the powder or paste sample in a sample cup at the top of the machine. The results are displayed on the screen and can be sent to an optional printer.

The graphical software and a large touchscreen make the AgriCheck analyzer easy to use. The operator simply selects the product and fills the grain into the funnel or puts the powder or paste sample in a sample cup at the top of the machine. The results are displayed on the screen and can be sent to an optional printer.

The graphical software and a large touchscreen make the AgriCheck analyzer easy to use. The operator simply selects the product and fills the grain into the funnel or puts the powder or paste sample in a sample cup at the top of the machine. The results are displayed on the screen and can be sent to an optional printer.

KPM Community Login

Request A Demo

Get in Touch

Installation Options

No items found.
KPM Analytics Hot Copper Ore

Request A Demo

Learn More

Accessories

The AgriCheck XL can include additional options for measuring wet or small sample types as well as test weight and temperature:

  • Sample cups with a path length of 25 mm or a combination of 7/18 mm path lengths. These are used for wet grains, small grains, or small sample sizes.
  • Test Weight – optional accessory to determine the specific weight of the grain. The value is automatically added to the test report.
  • Temperature – optional accessory to measure the temperature of the grain. This value is automatically incorporated into the final test report.
AgriCheck XL Versatile Grain Analyzer

Available Accessories

No items found.
KPM Analytics Global

Get in Touch with Us!

Learn More

Specifications

AgriCheck XL

Dimensions Width x Depth x Height: 385 x 420 x 385 mm (15.2 x 16.5 x 12.6 in.)
Weight 21 kg (46 lbs)
Power 220-240 or 100-120 VAC, 50/60 Hz, 45 Watts
Analysis Time 45 seconds
Sample Size 650 ml
Analysis Principle Scanning Monochromator; Transmission
Sample Presentation Automatic Feed with Multiple Sub-Sample Measurements
Wavelength Range 730 – 1100 nm
Pathlength Fixed. 18, 22, or 30 mm. Must Specify at Time of Order
Data Increment 0.5 nm
Interfaces USB, Ethernet, Centronics
Protection Dust and humidity protected
