Product Overview

A Simple On-Line Web Scanner for Fewer Products & Zones

The Guardian-HD Basic Web Profile Analyzer is a single-scanner system to measure moisture, coat weight, and temperature (optional) for all paper, film, and web-converting processes.

  • Entry-level functionality for operators to run simple scans on multiple constituents
  • Record data across 16 total measurement zones with up to 50 different recipes (products)
  • Pre-programmed software with specific calibrations
  • Reduce start-up times and waste by instantly identifying production inefficiencies
  • Limit instances of edge curl and lay flat issues
  • 5.7” touch-screen display
  • Optional Ethernet IP, Modbus TCP/IP interface, or OPC server
  • Rugged, sealed industrial frame and linear actuator withstands hot and humid environments
Process Sensors Corporation Guardian HD Basic Web Profiling System
Process Sensors Corporation Guardian HD Basic Web Profiling System
Process Sensors Corporation Guardian HD Basic Web Profiling System
Process Sensors Corporation Guardian HD Basic Web Profiling System
Process Sensors Corporation Guardian HD Basic Web Profiling System
Process Sensors Corporation Guardian HD Basic Web Profiling System
No items found.

Features

  • Easy calibration, operation, and standardization
  • Rugged, sealed industrial frame and linear actuator withstands hot and humid environments common with paper and converting processes
  • Automatic edge detection senses roll width to streamline set-up processes, and realigns to accommodate web drift
  • Configurations available to monitor and control multiple Guardian-HD systems simultaneously
  • Easily connect to closed-loop control systems or local alarms

Benefits

  • Minimize edge curl and lay flat issues with 100% real-time inspection of moisture, coat weight, thickness, and temperature of converting lines
  • Decrease manual start-up times by 20%, eliminating the need for time-consuming lab testing and adjustments
  • Each system can be customized to the width of the web, along with the ability to position the NIR sensor wherever it is needed
Guardian-HD Basic Web Profiler

Get in Touch with Us!

Learn More

Applications

Rugged NIR Scanning for a Complete Zoned Web

Moisture and coat weight measurements can be made on many substrates including paper, film, foil, textiles, release liners, tags, tapes and labels.

The Guardian-HD Web Profiling System is commonly used in the following applications:

  • Hot melt & film thickness
  • Wet end water based coat weight
  • Dry end organic coat weight
  • Exit and inlet dryer moisture
  • Re-moisturizers (LAS, steam curtains and water decks)
  • Moisture and coatings on paper webs
  • Thickness of hot melts
  • Thickness of pressure sensitive adhesives
  • Thickness of water-based adhesives
  • Paper pulp
  • Plastic film thickness
  • Biax film
  • PVB & EVA film
  • Exit and inlet dryer moisture measurement
  • Cast film
  • Coated abrasives
  • Wax coatings
  • Extrusion coatings on paper/foil
  • Moisture in corrugated board
  • Textiles
  • Pattern coatings (move and park)
  • Flexible packaging
  • Flooring

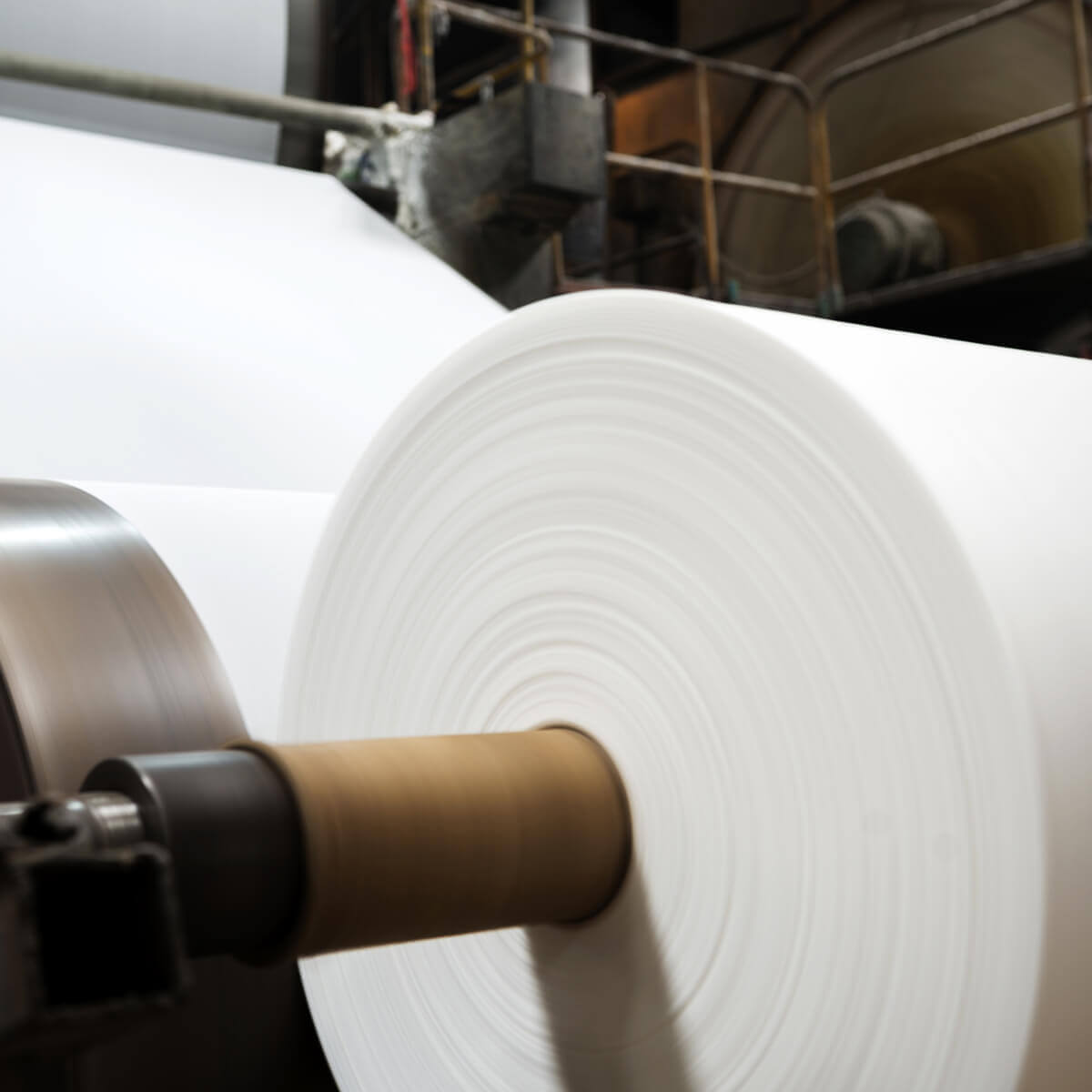

Paper
Converting

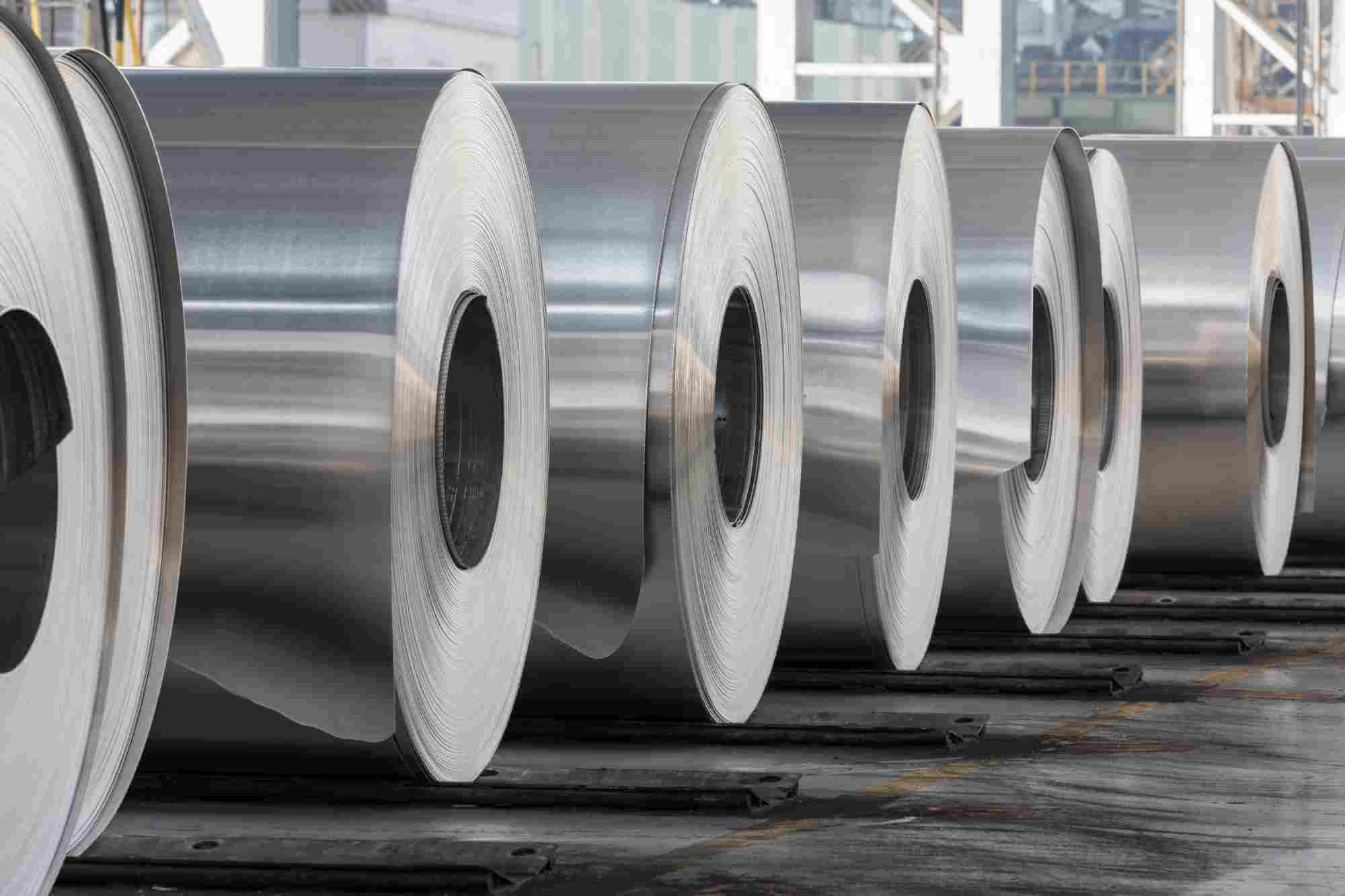

Metal Coatings

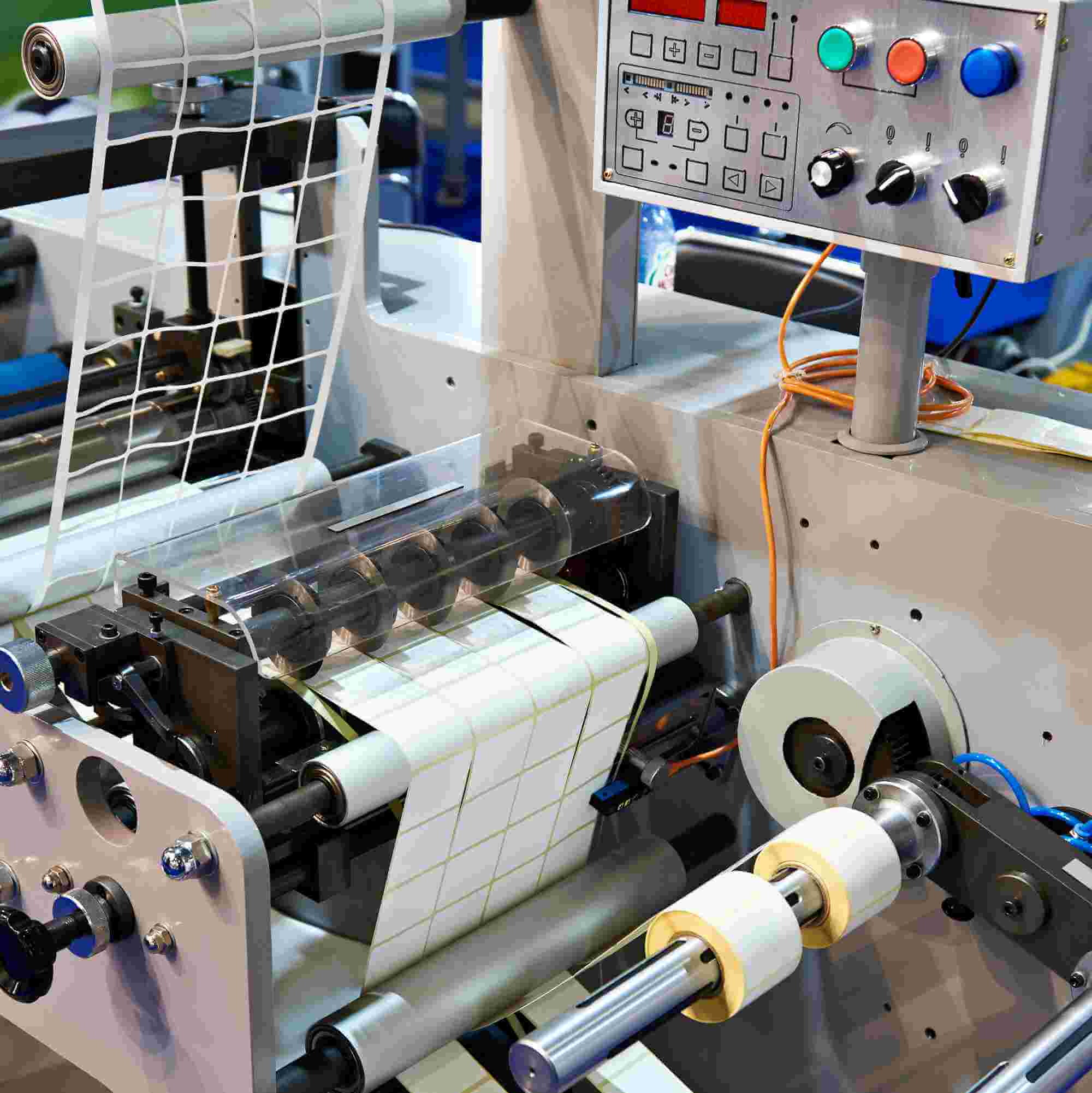

Pressure Sensitive Adhesives

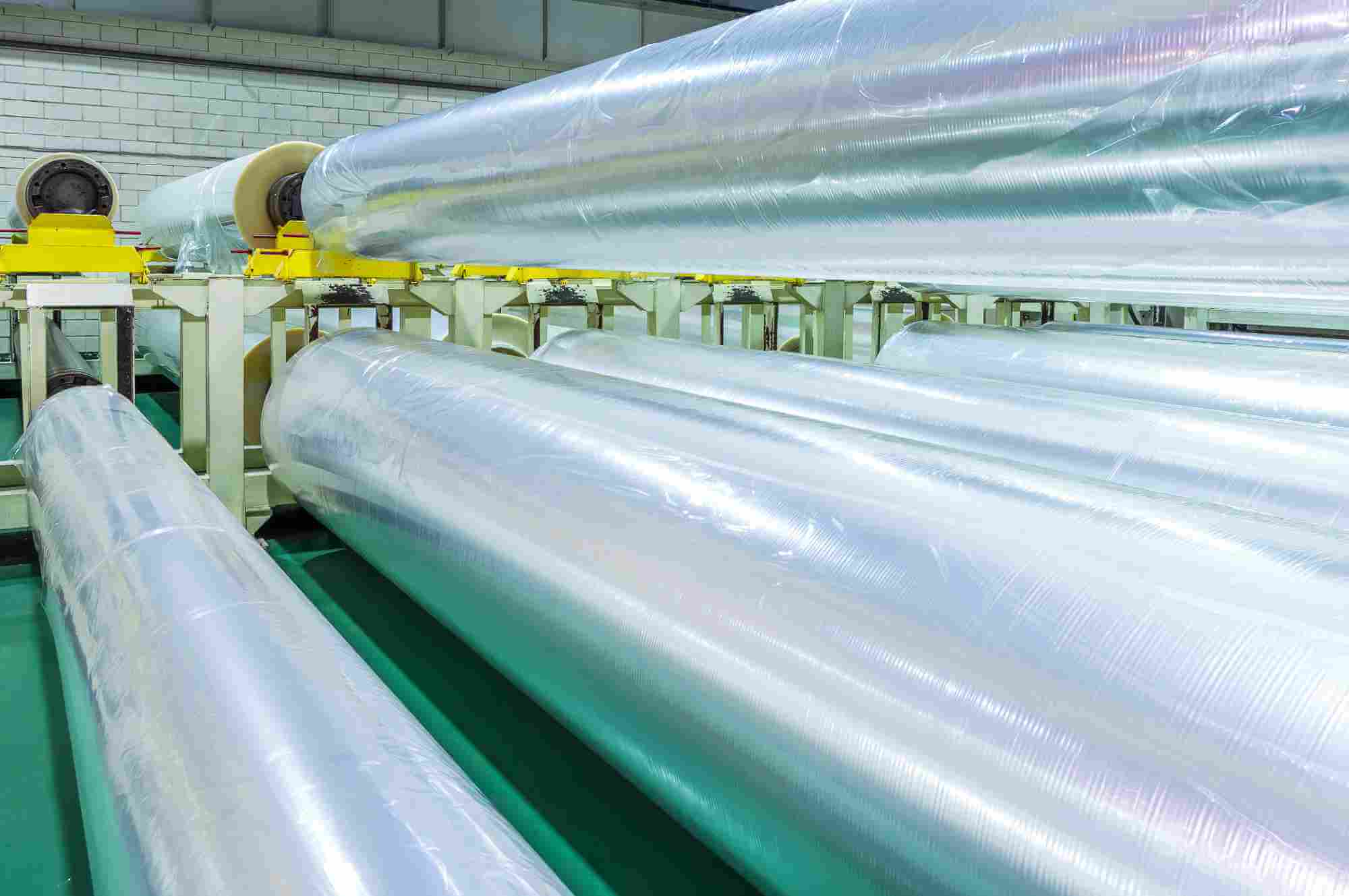

Film

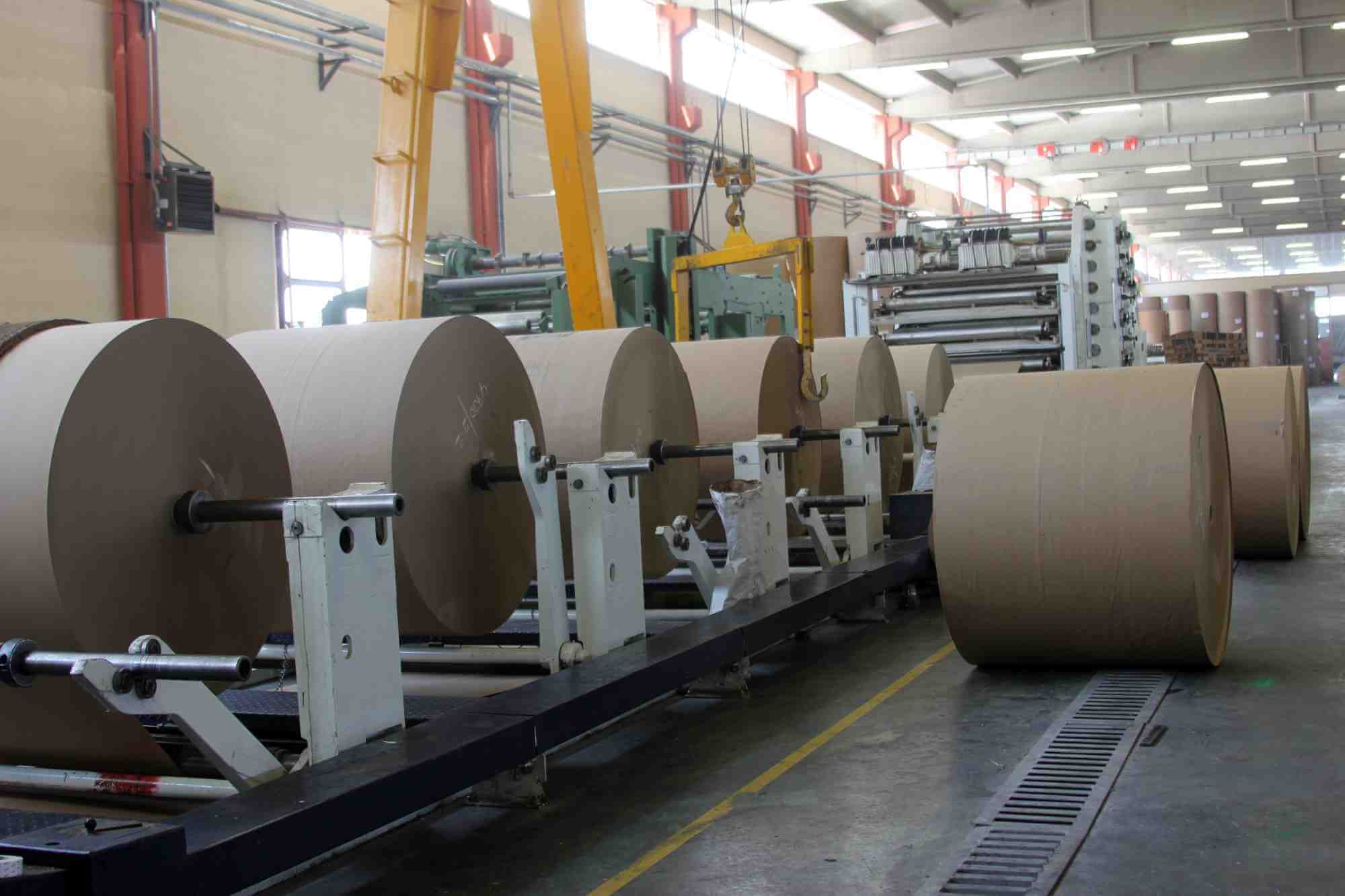

Kraft Paper
No items found.
Start the Conversation - Get in Touch
Alt Text Title
Guardian-HD Basic Web Profiler

Measure Quality Where it Matters

Learn More

Product Lineup

No items found.
KPM Analytics Distribution

Get in Touch with Us!

Learn More

How It Works

Entry-Level Functionality for Operators to Scan Multiple Constituents

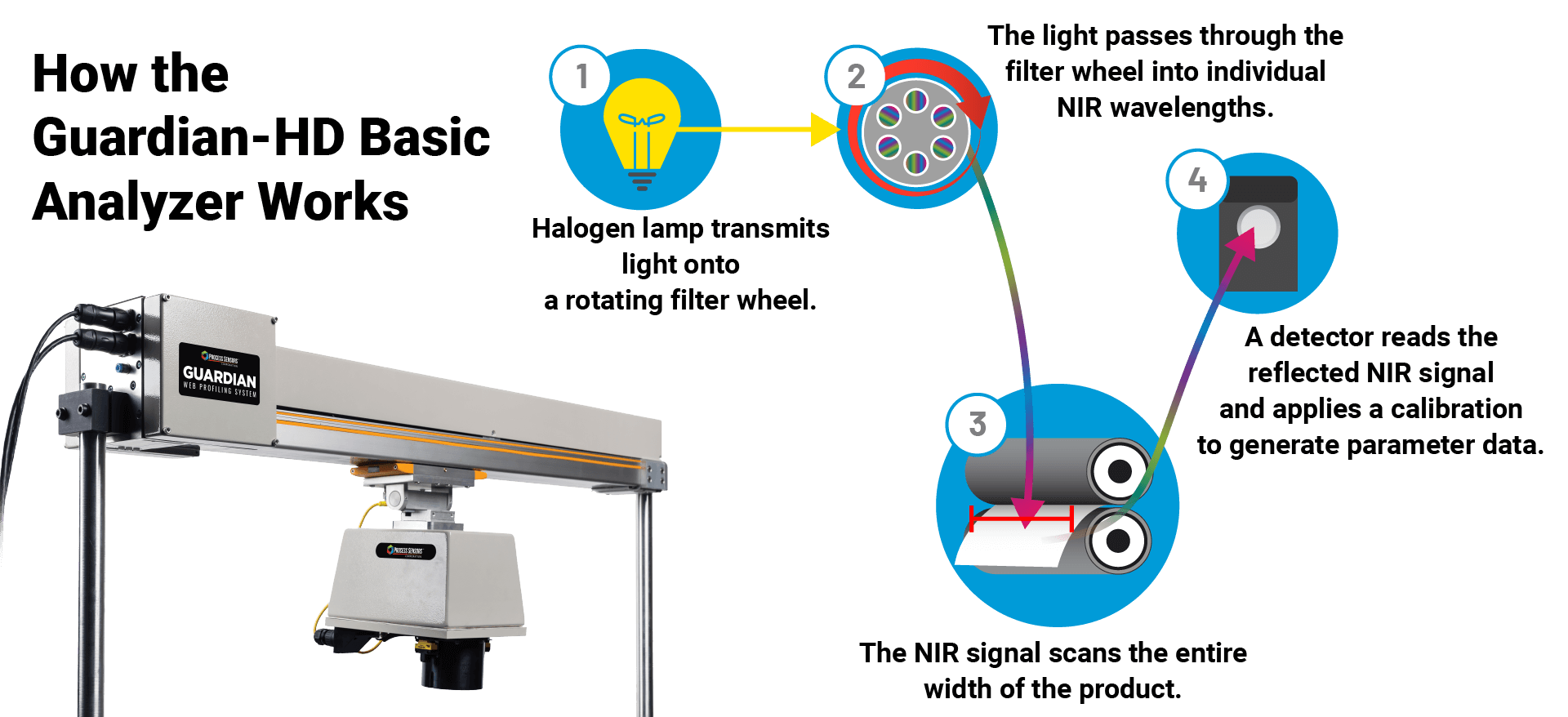

The Guardian-HD Series features an NIR sensor that is connected to a traversing frame to continually scan the full-width of a web profile for moisture and coat weight parameters. Real-time data is presented on an easy-to-understand touchscreen display for cross direction web profiling, lane and machine direction measurements. In some configurations, larger displays with Windows®-based software are available for monitoring multiple line profiles at a single central console.

All Guardian-HD Series configurations allow for USB data-logging with the ability to export to .csv, .xml or .txt file formats.

Each Guardian-HD frame is custom-built for its specific application, and the analysis software can be pre-programmed for specific recipe codes for the material it is analyzing. The NIR sensor can also be positioned in different ways to accommodate reflective surfaces (common with wet-end coating applications) as well as horizontal, vertical, and under-side scanning.

KPM Analytics Wheat Field

Request A Demo

Get in Touch

System Components

All components of the Guardian-HD Basic are ruggedized and specified to operate for several years in challenging conditions. Unlike nuclear and X-Ray systems, Guardian-HD Basic does not require costly regulation compliance or safety certifications. Each unit is custom-built for its specific application.

System components include:

  • Industrial scanning frame
  • An NIR smart sensor
  • Local, easy-to-read touch screen display with non-Windows® based software

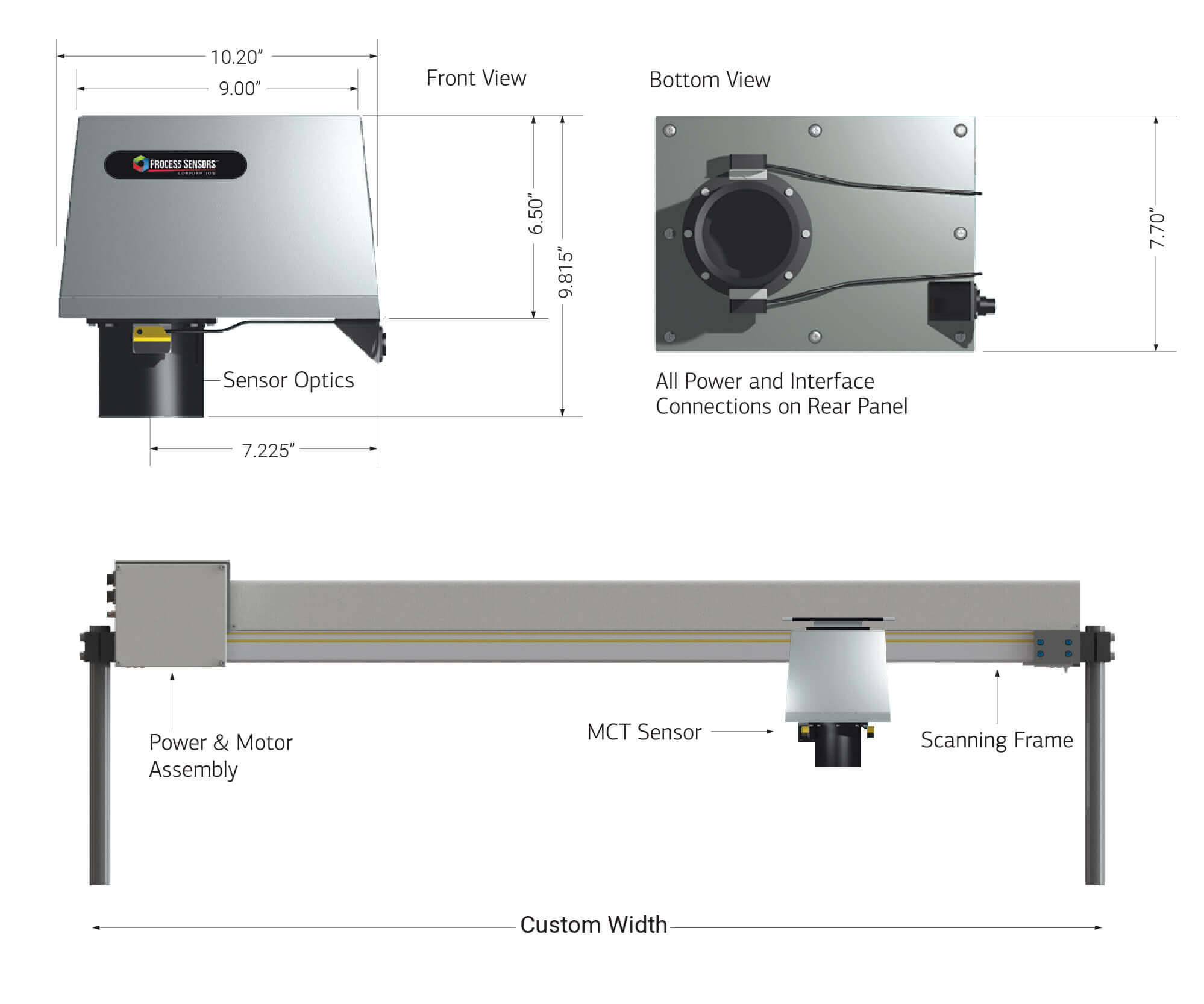

Dimensions of the Process Sensors Corporation Guardian-HD
No items found.
KPM Analytics Global

Get in Touch with Us!

Learn More

KPM Analytics Snack Foods

Get in Touch with Us!

Learn More

Software

The Guardian-HD Basic is sold standard with non-Windows®-based software that presents data in an easy-to-understand format. The configurations include optional USB raw data-logging capabilities to save and export data to .csv, .xml, or .txt files for additional analysis.

The Guardian-HD Basic is sold standard with non-Windows®-based software that presents data in an easy-to-understand format. The configurations include optional USB raw data-logging capabilities to save and export data to .csv, .xml, or .txt files for additional analysis.

The Guardian-HD Basic is sold standard with non-Windows®-based software that presents data in an easy-to-understand format. The configurations include optional USB raw data-logging capabilities to save and export data to .csv, .xml, or .txt files for additional analysis.

The Guardian-HD Basic is sold standard with non-Windows®-based software that presents data in an easy-to-understand format. The configurations include optional USB raw data-logging capabilities to save and export data to .csv, .xml, or .txt files for additional analysis.

Alt Text Title
Community Login

Request A Demo

Get in Touch

Installation Options

The Guardian-HD Basic system can be positioned to view material horizontally, vertically, or from the under-side.

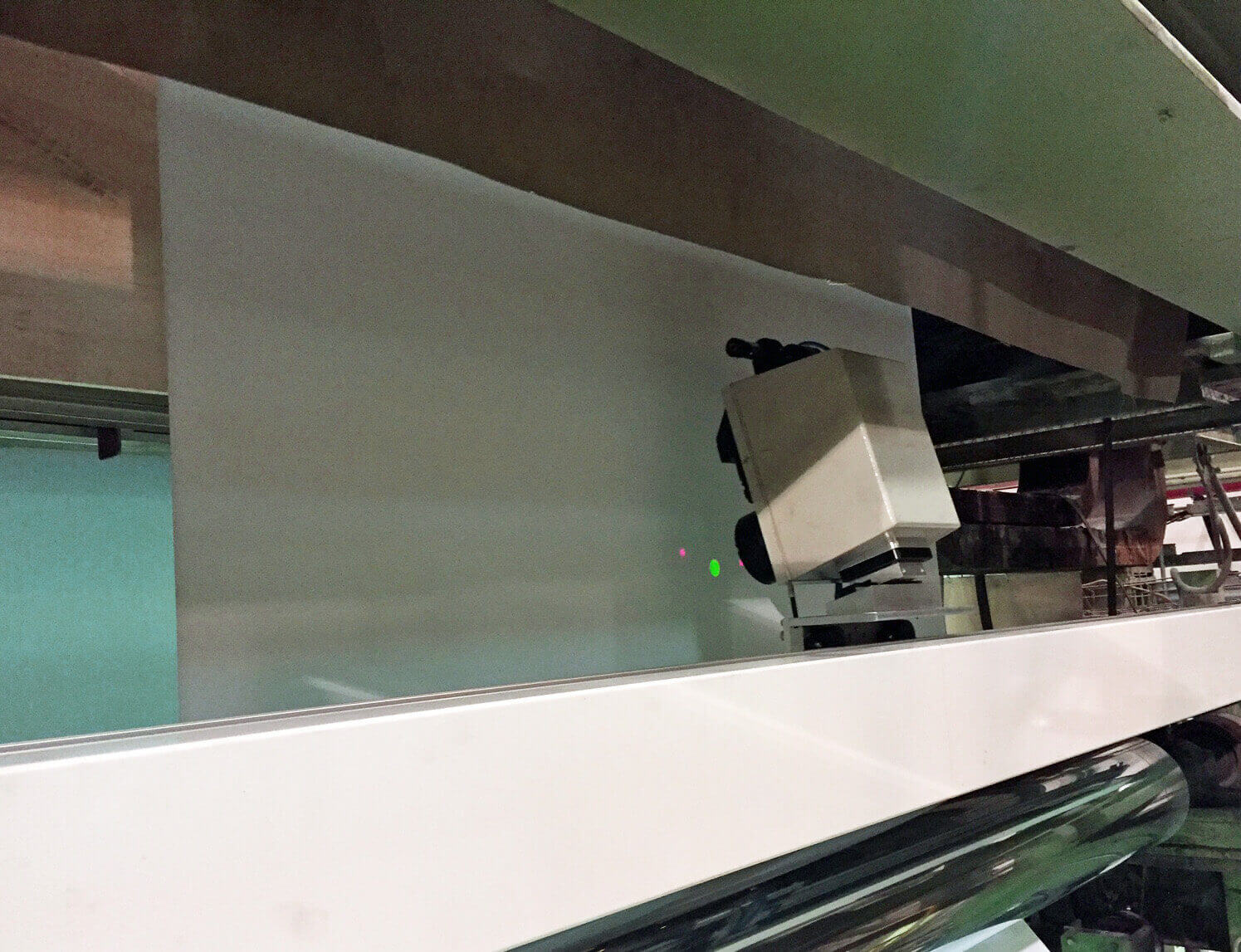

Guardian-HD Scanning Paper

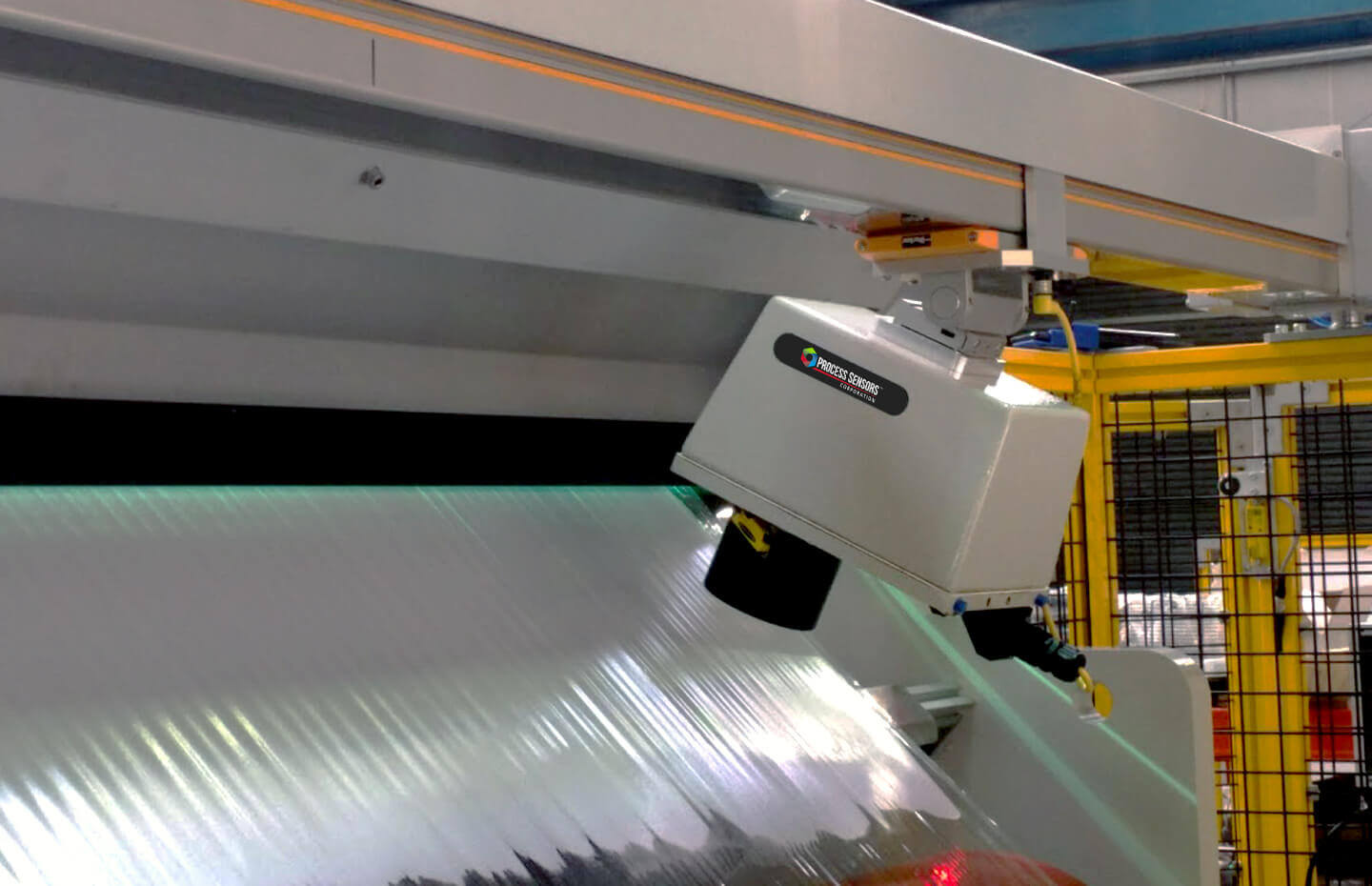

Gueardian-HD Scanning Film
No items found.
Alt Text Title
KPM Analytics Hot Copper Ore

Request A Demo

Learn More

Accessories

  • Hi/low moisture-only calibration check standards
  • Data bus interfaces
  • Simultaneous temperature measurement
  • 4X alarm relays
  • Light stack alarm
Guardian-HD Basic Web Profiler

Available Accessories

No items found.
KPM Analytics Global

Get in Touch with Us!

Learn More

Specifications

Guardian-HD Basic

Power 90-260VA
Number of Constituents Up to 2 (NIR + Product Temperature)
Calibration Codes/Recipes 100
Ambient Temperature 0 – 50°C (32 – 120°F) with air cooling up to 80°C (160°F)
Scanning Frame Outputs 3X 4-20mA Selectable Sources; Live NIR Value; Scan NIR Average Values; Live Temperature Scan & Scan Temperature Average Value
Scanning Frame Inputs Web Break; Web Length; Cooling Air; Sensor Window Purge
Moisture Range Min. 0.1%, Max. 95%
Moisture Accuracy +/- 0.1%
Coatings Range Min. 0.1 GSM, Max. 250 GSM
Coatings Accuracy +/- 0.1 gr/m
Repeatability +/- 0.1%
