Product Overview

Grind 800g of Grain in 1 Minute

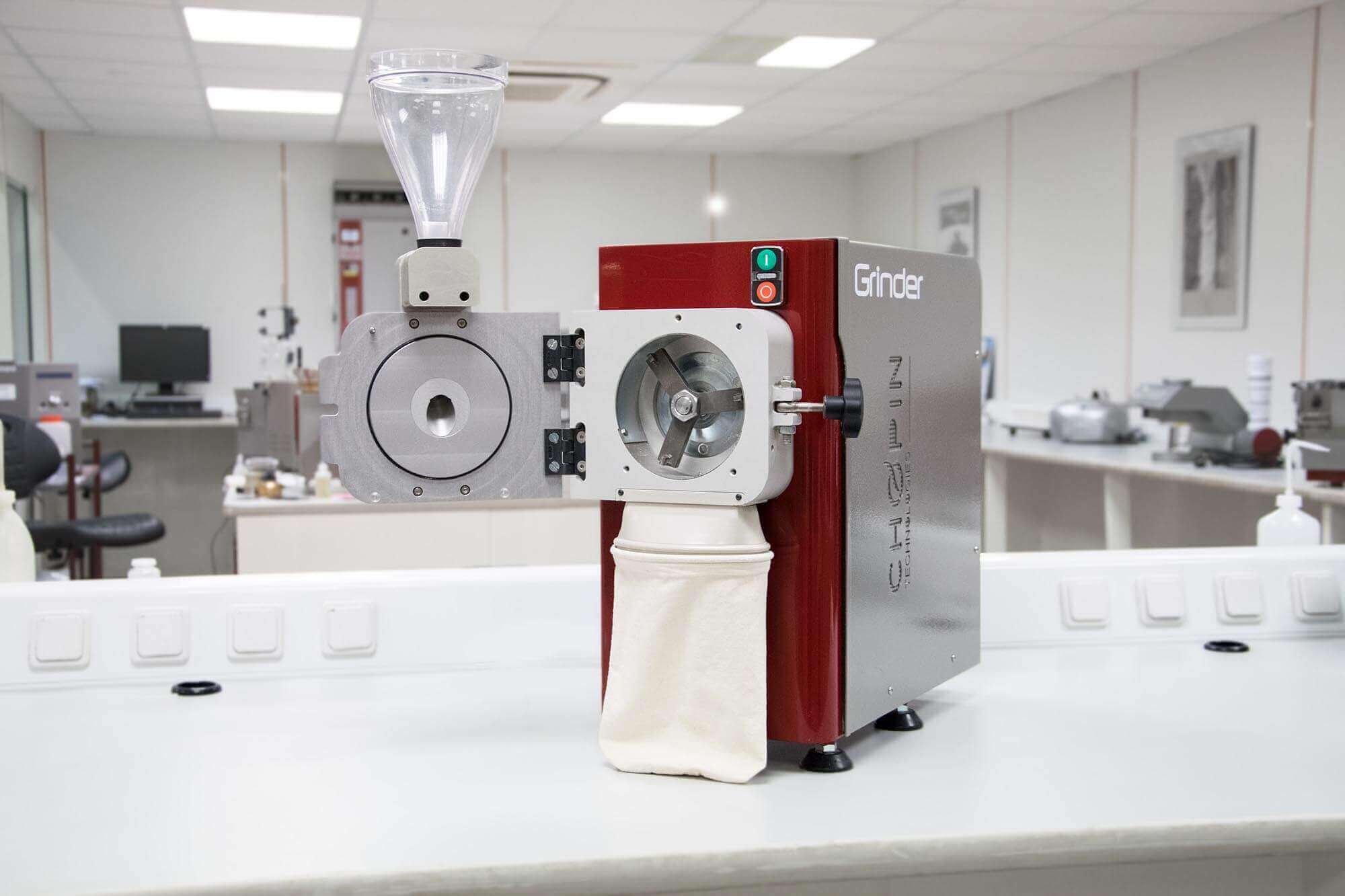

Preparing test samples for the Hagberg falling number test, near-infrared analysis, or a Mixolab analysis involves making sure the grain has been processed into a fine, homogeneous flour. The Grinder-CHOPIN instrument provides a quick way to produce test samples for further analysis.

Features

  • Built-in safety features for the protection of operators
  • High grinding capacity - 300 g/min & 800 g capacity
  • Low emission of dust due to the sealed chamber and the use of a nylon bag
  • Produces fine, homogeneous samples, improving the repeatability and accuracy of test results
  • Simple and robust design provides excellent longevity and very low cost of operation

Benefits

  • Spend less time waiting - samples are ready in about 1 minute
  • Remove the need for multiple devices, the Grinder can be used for all types of grains
  • Less clean-up with sealed, controlled operations
Functional & Rheological

Applications

Quick Grist Samples for Analysis

Grain Elevators, Millers, and their Quality Control teams have specific requirements for grains and require analysis to ensure the product meets specifications. To produce quick grist samples, the Grinder-CHOPIN can be used for a wide variety of grains (wheat, barley, rye, etc.). The grist samples are typically used for:

  • The Hagberg falling number test, which measures the amount of pre-harvest sprouting that occurs in the grain while on the stalk in the field
  • Near-infrared analysis to measure hardness and levels of protein, fat, ash and water after grinding

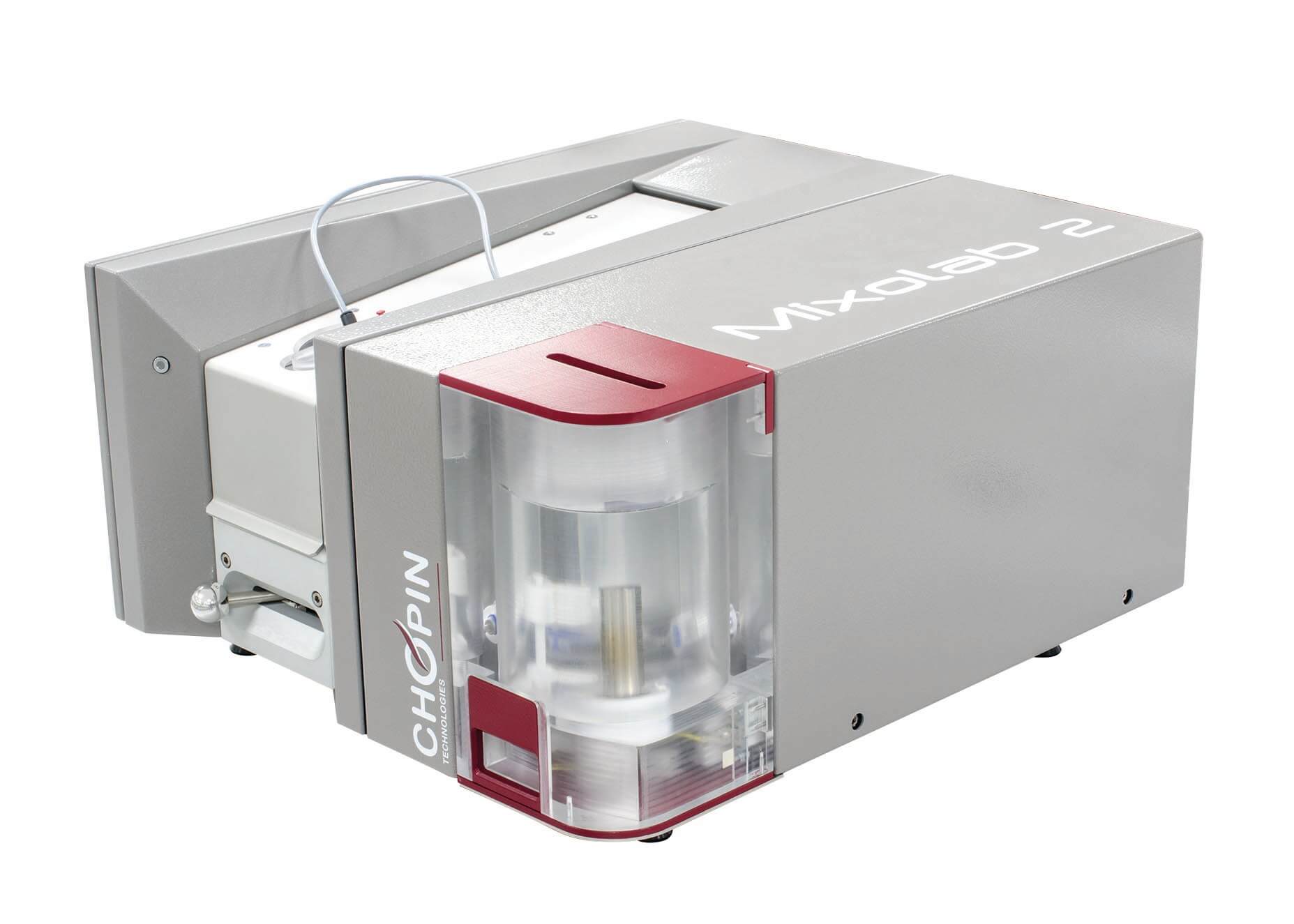

  • Maintaining compliance with the AACC 54-60.01 and ICC 173/1 standards for the analysis ground wheat using the Mixolab test
No items found.
No items found.
No items found.
No items found.
Functional & Rheological

Lineup

No items found.
Functional & Rheological

How It Works

Simple, Robust Design for Longevity & Low Cost of Operation

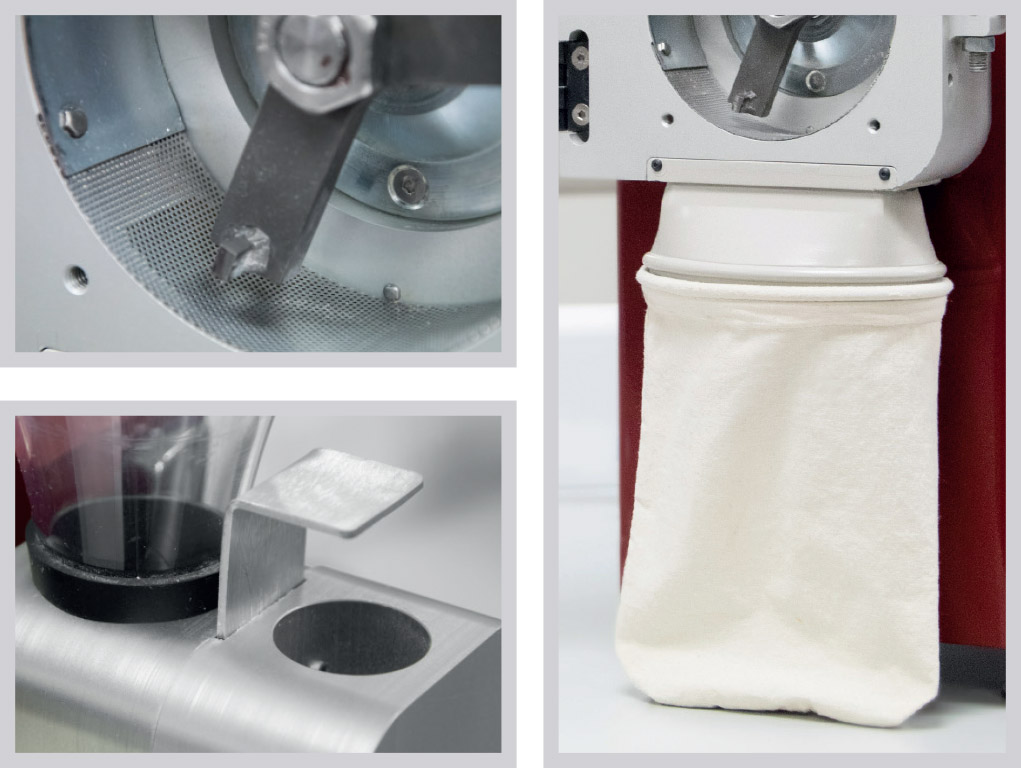

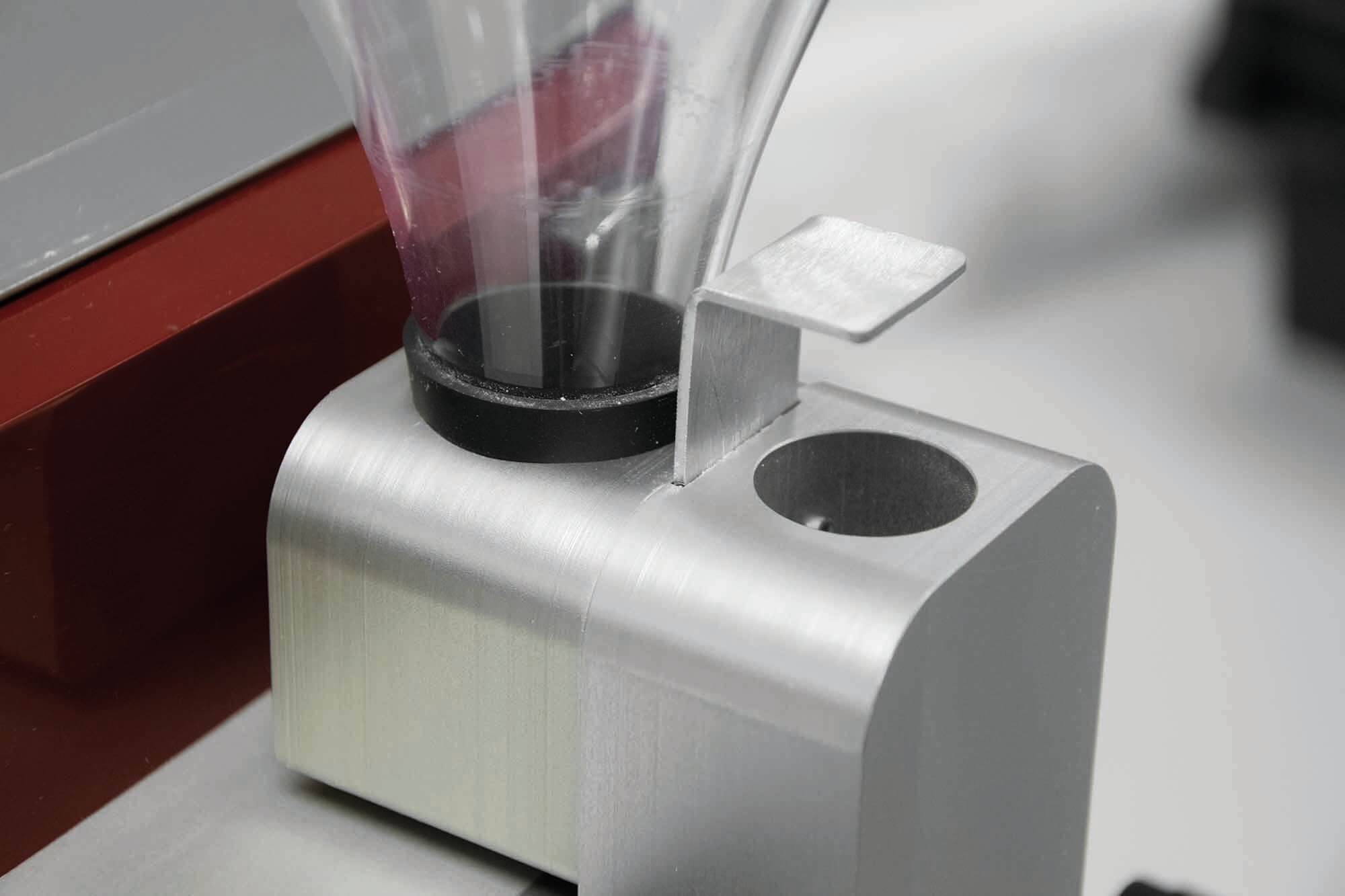

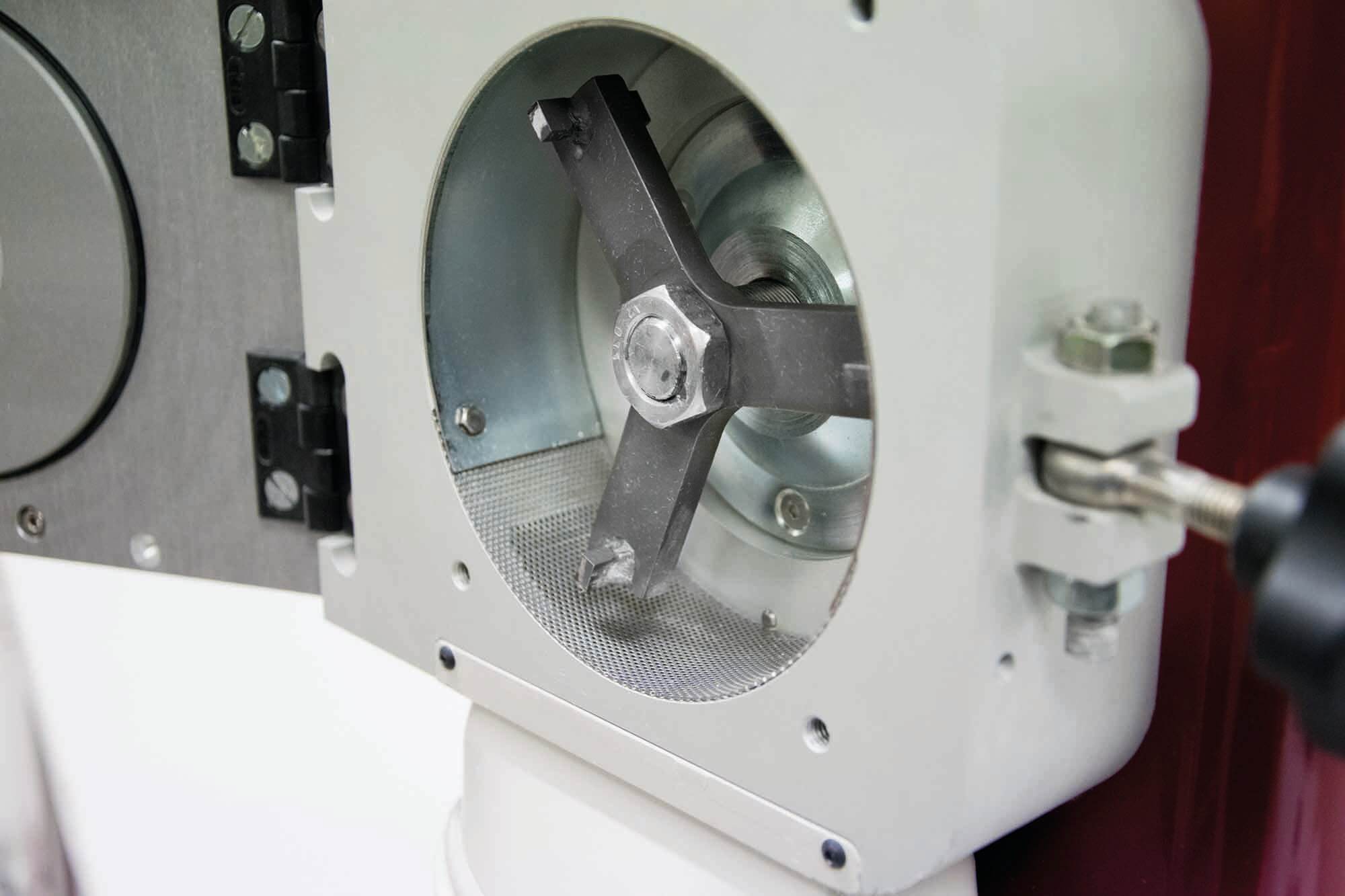

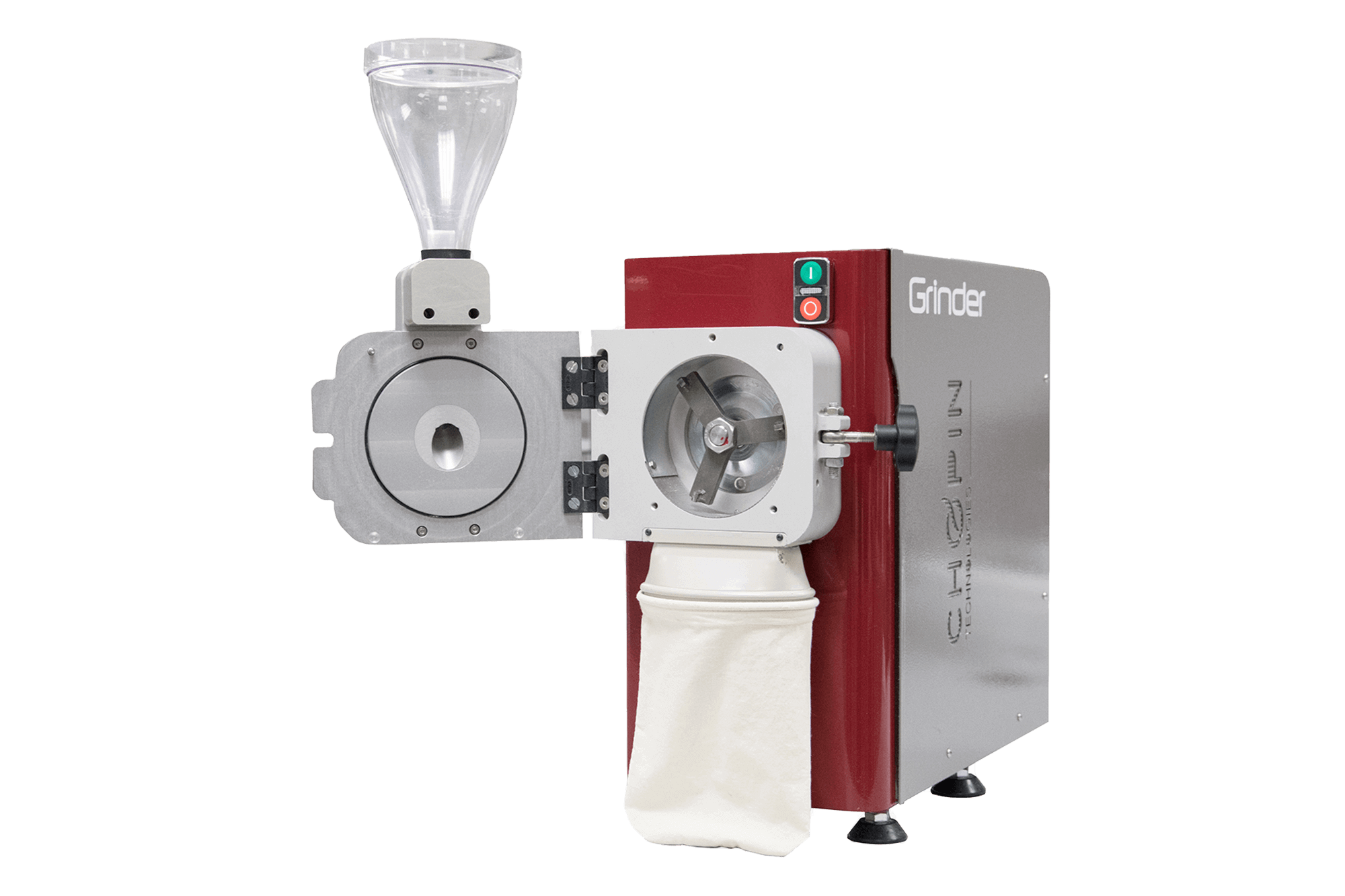

The Grinder-CHOPIN features a sealed grinding chamber in which high-strength metal hammers rotate at high speed to ensure rapid and even grinding. The input valve upstream of the grinding chamber regulates the grain feed rate. The ground product is then automatically passed through a standard 0.8mm screen (other screens can be used to vary the size and distribution of particles). At the end of the cycle, the resulting grist is recovered in a nylon bag placed under the grinding chamber.

Functional & Rheological

System Components

Functional & Rheological

Functional & Rheological

Software

No items found.
Functional & Rheological

Accessories

No items found.
Functional & Rheological

Specifications

Dimensions Width x Depth x Height: 230 x 520 x 557 mm (9 x 20.5 x 22 in.)
Weight 37 kg (82 lbs)
Power 220/240V – 50 Hz, 110V – 60 Hz, 750 W- 95dB
Test Time 1 Minute
Operator Time 10 Seconds
Throughput 300 g Within 1 Minute
Maximum Capacity of 800 g
Hopper Capacity 1.2 L
Compliance AACC 56-81.04, ICC 107/1 and ISO/DIS 3093 standards (FN); AACC 54-60.01, ICC 173/1 and ISO 17718 (Mixolab)
